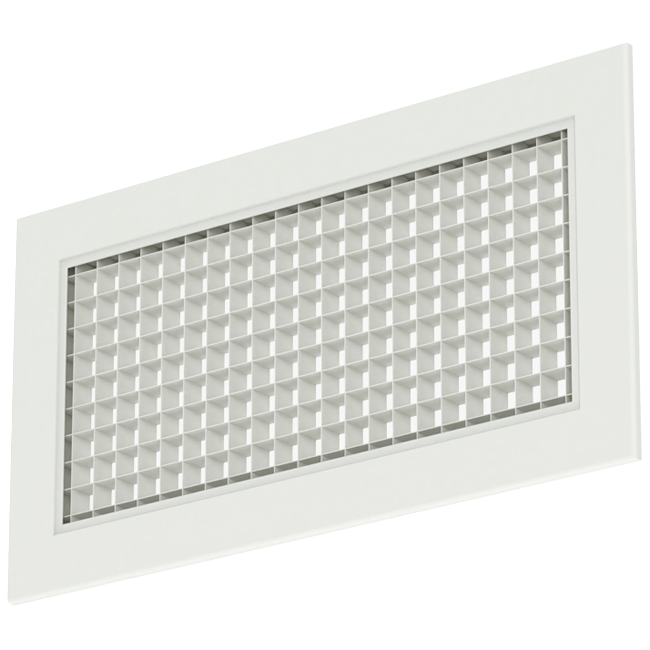

Wall grille aluminum with fixed grid - with friction springs - 600x300 mm - RAL 9010

Brand: Econox

-25%

RRP 121.10

90.83 -25%

You'll save 30.27

In stock

The largest collection in the United Kingdom
100 day return period
Customer review 9/10
Safe shopping with Trustedshops

Pay safe and fast with:

Good points

For supply and removal
Extruded aluminum

Aluminium wall grille with fixed grid – with spring clips – 600x300 mm – RAL 9010

The Econox aluminium wall grille with a fixed grid is specifically designed for air supply and return in commercial indoor spaces such as offices, schools, and retail stores. The fixed grid ensures stable, consistent, and predictable air distribution.

Practical information

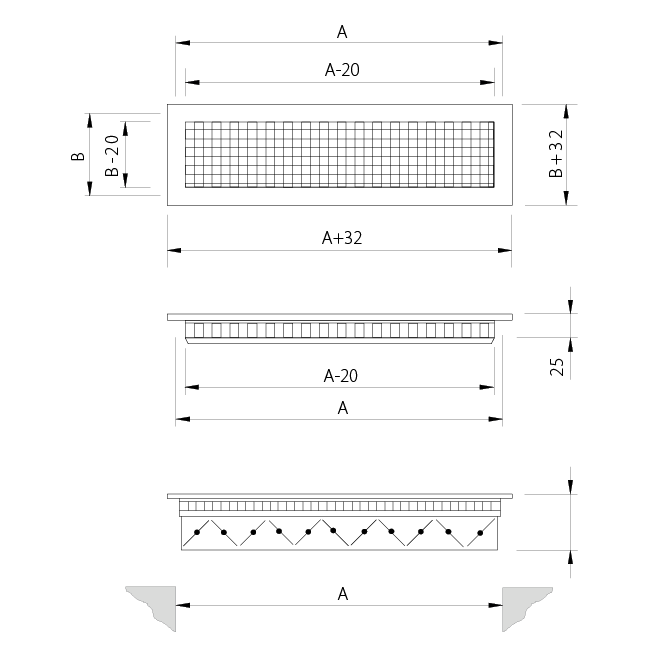

The wall grille measures 600 mm in width and 300 mm in height. The mounting frame and slats are made from extruded aluminium, preventing deformation during installation, and are subsequently powder-coated in RAL 9010, 9016, or 9005.

Installation and applications

The wall grille is supplied standard with spring clips and a mounting frame, enabling installation into the wall. The grille can be easily clipped into the mounting frame using the spring clips before the assembly is fitted into the wall. Optionally, the wall grille can be combined with a plenum box (only when used with spring clips and without the mounting frame) or a volume control damper to ensure uniform air distribution in the respective space.

Brand	Econox
Category	Rectangular wall grilles with fixed louvre
GTIN	8719544330000
Manufacturer's item number	79000292
Article number	79000292

Specifications

Category code	59
Material	Aluminium
Surface protection	Lacquered
Nominal duct width	600 mm
Nominal duct height	300 mm
Vertical fins	Yes
Double row of ribs	No
Front width	632 mm
Colour	White
With built-in window	Yes
Front height	332 mm
Servomotor, adjustable	No
Volume setting	None
Thermostatically adjustable	No
Ball-protected	No
Built-in depth	92 mm
Mounting of internal parts/grille	Hidden clamp
Suitable for round air duct	No
RAL-number	9010
Air pattern, adjustable	Yes
RAL Color	RAL 9010
Dimensions	600x300 mm
