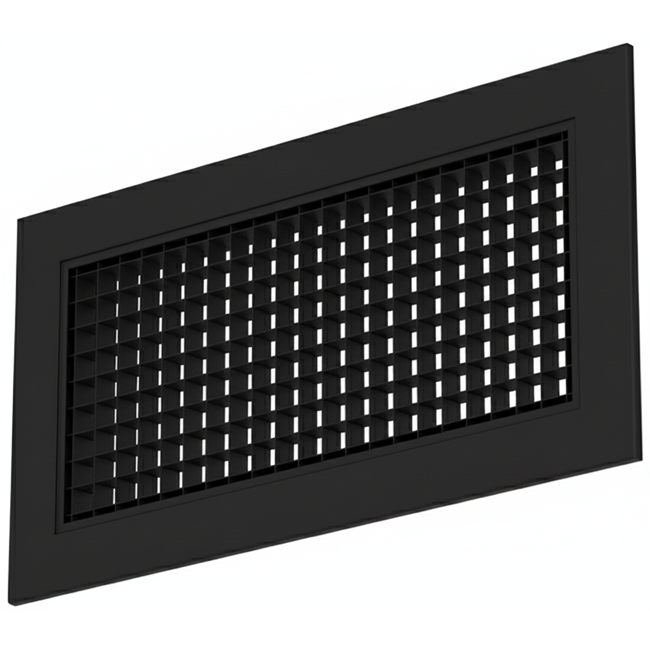

Wall grille aluminum with fixed grid - with friction springs - 600x300 mm - RAL 9005

Brand: Econox

-25%

RRP 121.10

90.83 -25%

You'll save 30.27

In stock

The largest collection in the United Kingdom
100 day return period
Customer review 9/10
Safe shopping with Trustedshops

Pay safe and fast with:

Good points

For air supply and exhaust
Extruded aluminum

Aluminium Wall Grille with Fixed Grid – with Spring Clips – 600x300 mm – RAL 9005

The Econox aluminium wall grille with a fixed grid is specifically designed for air supply and exhaust in commercial indoor spaces such as offices, schools, and shops. The fixed grid ensures a stable, consistent, and predictable air distribution.

Practical Information

The wall grille measures 600 mm in width and 300 mm in height. The mounting frame and blades are made from extruded aluminium, preventing deformation during installation, and are then powder coated in RAL 9010, 9016, or 9005.

Installation and Applications

The wall grille is supplied standard with spring clips and a mounting frame, allowing for installation into the wall. The grille can be easily clipped into the mounting frame via the spring clips before the assembly is placed in the wall. Optionally, the wall grille can be combined with a plenum (only when using spring clips and without a mounting frame) or a volume control damper to ensure even air distribution within the relevant space.

Brand	Econox
Category	Rectangular wall grilles with fixed louvre
GTIN	8719544330406
Manufacturer's item number	79000332
Article number	79000332

Specifications

Category code	59
Material	Aluminium
Surface protection	Lacquered
Nominal duct width	600 mm
Nominal duct height	300 mm
Vertical fins	Yes
Double row of ribs	No
Front width	632 mm
Colour	Black
With built-in window	Yes
Front height	332 mm
Servomotor, adjustable	No
Volume setting	None
Thermostatically adjustable	No
Ball-protected	No
Built-in depth	92 mm
Mounting of internal parts/grille	Hidden clamp
Suitable for round air duct	No
RAL-number	9005
Air pattern, adjustable	Yes
RAL Color	RAL 9005
Dimensions	600x300 mm
