Good points

Galvanised
No additional connection required

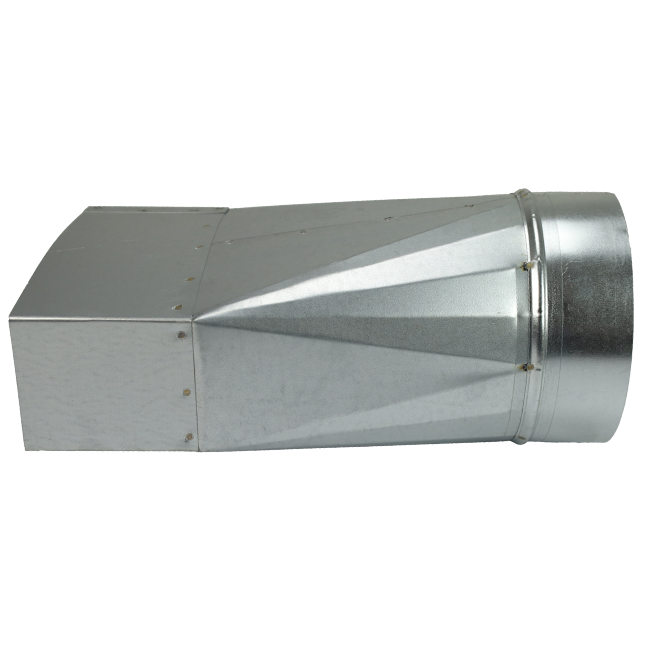

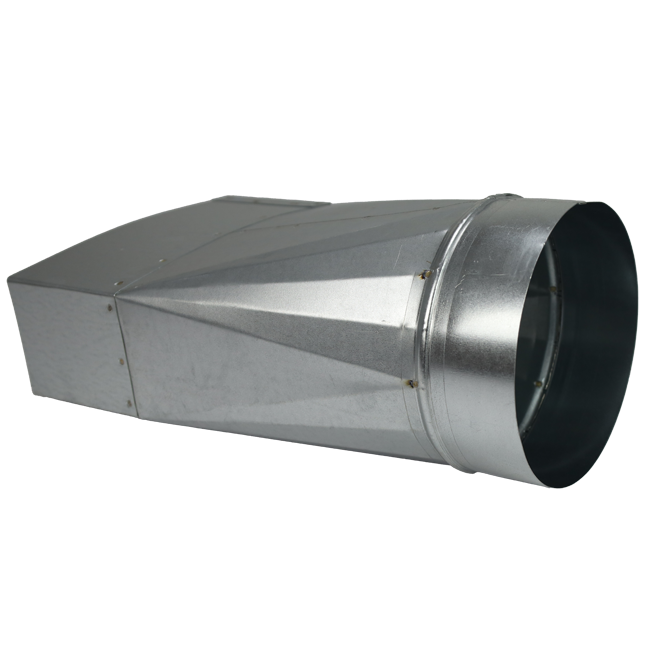

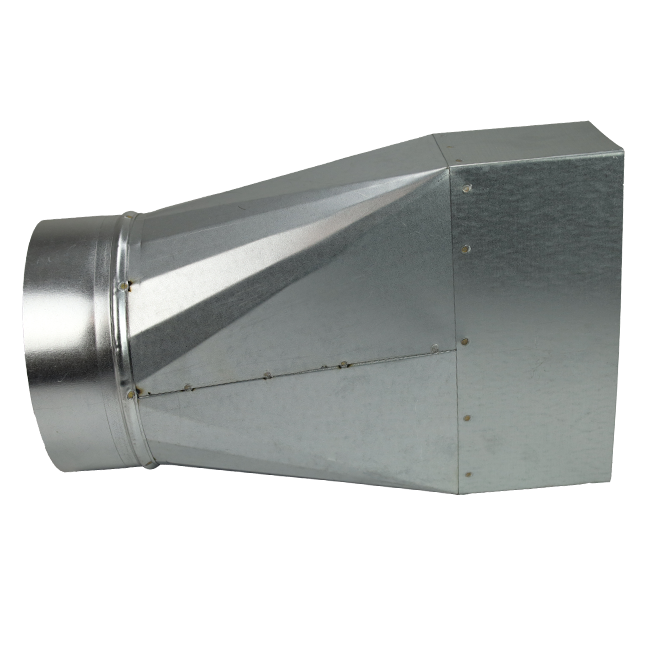

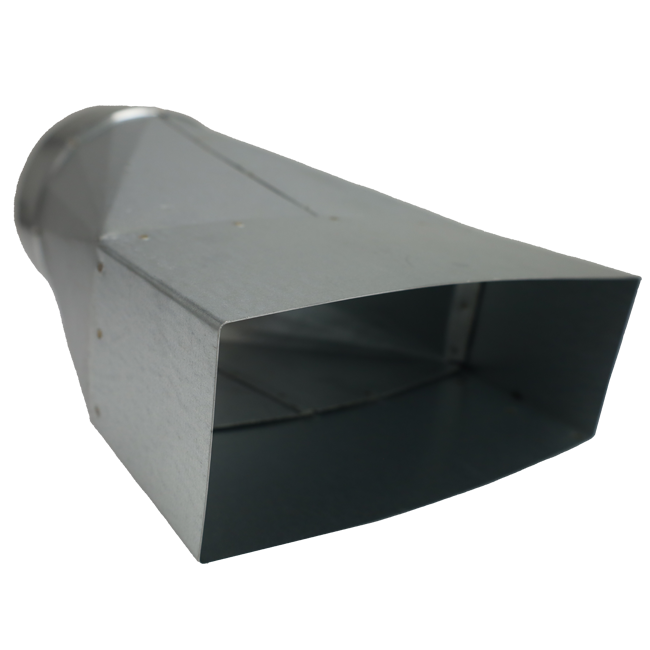

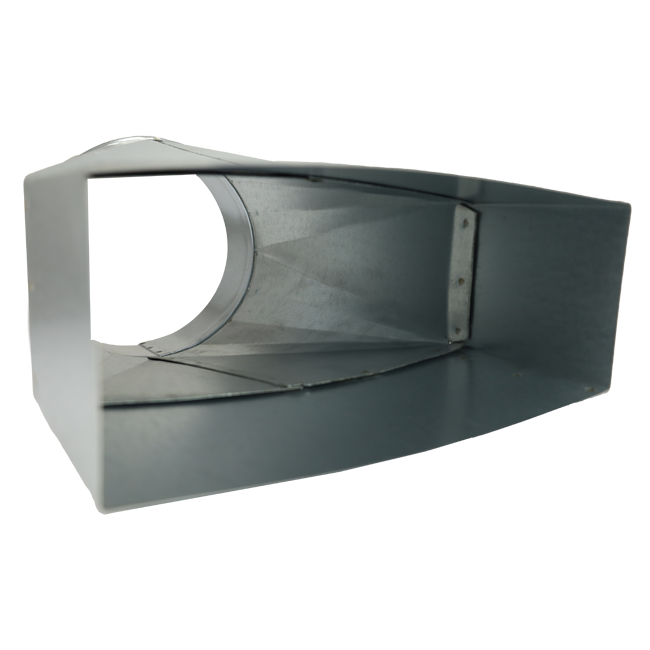

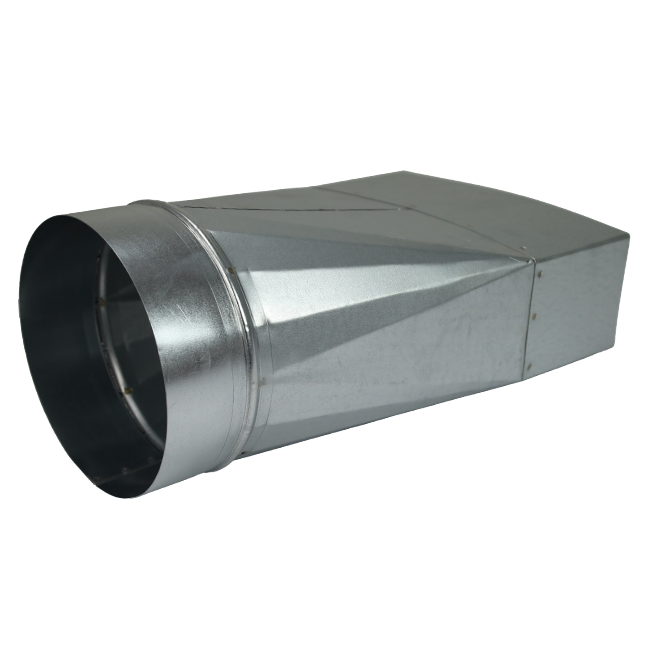

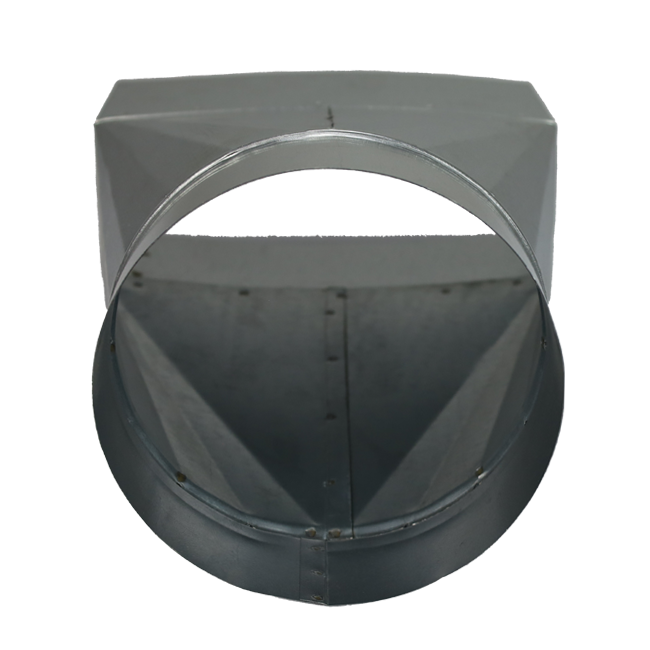

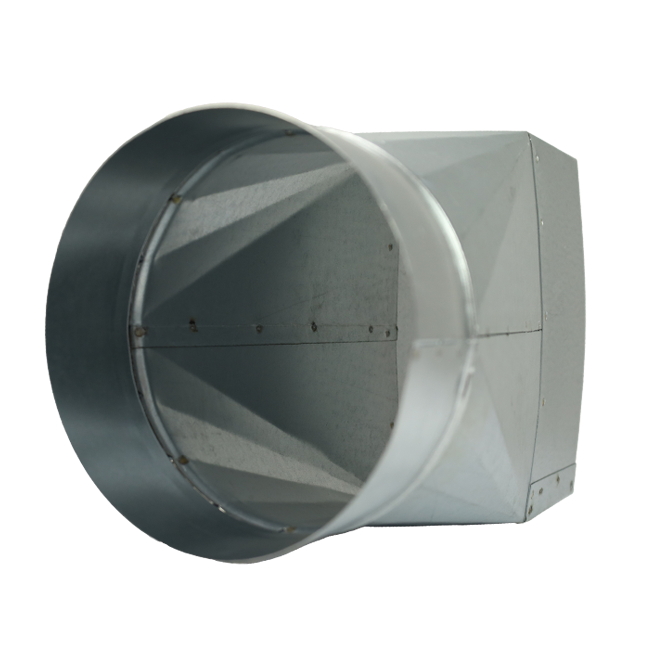

Transition piece 220x80 mm to diameter 150 mm for flue pipe

The galvanized reducer with dimensions of 220x80 mm has an insertion end that fits over a duct, without requiring an additional connector to connect the reducer to an embedded duct.

Embedded ducts are ventilation ducts integrated into a floor or concrete to enable air distribution or extraction in buildings. These flexible products are designed to be invisible and are commonly used in new construction and renovation projects. Additionally, an embedded duct can be used in walls, floors, and/or ceilings. Combined with a straight embedded duct and various accessories, a ventilation system can be installed as needed. There are both round and rectangular embedded ducts. Some advantages of embedded ducts include efficient airflow, space savings, noise reduction, and design flexibility.

Product Specifications

Our embedded air ducts are specially designed for use in residential construction and floors that are equivalent to residential buildings. Additionally, these durable products are made from high-quality galvanized steel. This steel is coated with a corrosion-resistant zinc layer, applied using the reliable Sendzimir process, ensuring a double-sided zinc coating. This guarantees robust and long-lasting protection against corrosion, in compliance with NEN-EN 10346 and NEN-EN 10143 standards.

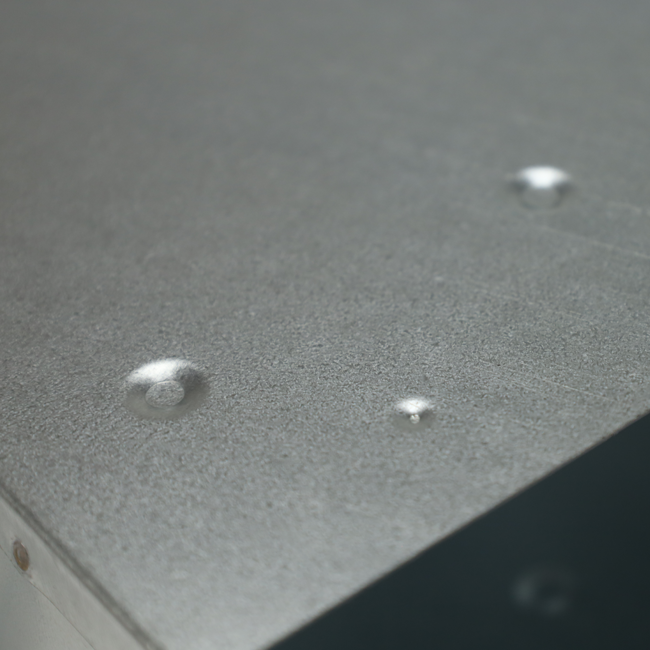

Depending on the dimensions of the air duct, we select the most suitable sheet thickness to ensure strength and functionality. For embedded ducts measuring 170x80 mm, a sheet thickness of 0.5 mm is used, while larger sizes such as 220x80 mm mm and 300x80 mm are manufactured with a 0.6 mm sheet. The transverse connections in rectangular embedded ducts are designed as sliding connections, using a coupling piece. These connections are securely fastened with self-drilling screws. To prevent water or cement from entering the air duct, the connections are sealed with PVC tape. Longitudinal connections are executed as a seam connection or spot-welded connection. These characteristics make our galvanized embedded air ducts a reliable choice for construction projects where durability and quality are paramount.

Brand	Econox
Category	Flat Ducts 220x80mm
GTIN	8719544040633
Manufacturer's item number	22081150
Article number	22081150

Specifications

Category code	179
Model	Uninsulated duct
Material duct	Steel
Material quality duct	Other
Wall thickness duct	0.5 mm
Production method	Longitudinal rebated joint
Pressed	No
Outer surface protection	Sendzimir galvanised
Inner surface protection	Sendzimir galvanised
Outside colour	Zinc
Design form	Centric
Connection type connection 1	Rectangular air duct
Nominal duct width connection 1	222 mm
Nominal duct height connection 1	82 mm
Connection 1	Insert end
Connection type connection 2	Round air duct
Nominal duct diameter, connection 2	150 mm
Connection 2	Insert end
Length	156 mm
Length of connection 1	28 mm
Working length connection 1	128 mm
Length of connection 2	150 mm
Working length connection 2	100 mm
Embeddable in concrete	Yes
Air tightness class according to EN 1751	C
