Spiro-SAFE premium silencer diameter 100 mm - length 900 mm (100 mm insulation)

Spiro-SAFE premium sound attenuator diameter 100 mm - length 900 mm (100 mm insulation)

The Spiro-SAFE premium sound attenuator diameter 100 mm - length 900 mm (100 mm insulation) is a round ventilation sound attenuator made from galvanised steel, specifically designed for use in ventilation and air handling ducts. This attenuator is engineered to effectively reduce noise generated by air flow and mechanical fans, ensuring that noise levels in occupied and technical spaces remain within acceptable limits. The attenuator features a male connection (insertion end) with an integrated double EPDM lip seal on both sides, providing an airtight and reliable connection with round ventilation ducts.

Practical information

Sound absorption is achieved through glass wool located between the inner and outer jacket of the attenuator. Depending on the version, the wool thickness is 50 mm or 100 mm for the PREMIUM-100. The mineral wool is flexible and is cut from roll material, allowing it to conform well to the shape of the attenuator, ensuring uniform sound reduction throughout the entire length of the product. This guarantees consistent attenuation, even with variable air flows and smaller duct dimensions.

The outer jacket is made of high-quality galvanised steel to ensure durability and reliability, providing a robust and corrosion-resistant finish.

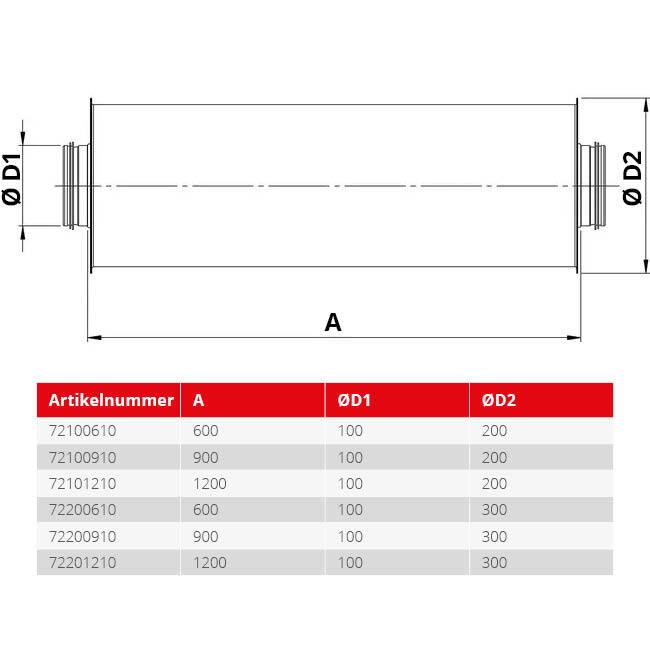

The construction is sturdy and functional, with a strong outer jacket that withstands mechanical stress during installation and operation. The product code clearly indicates the type of attenuator, insulation thickness, duct diameter (Ød1), and length of the attenuator. This makes it easy to select the right attenuator for any ventilation project, from residential buildings to complex commercial installations.

Why is the premium variant better than the standard variant?

The premium sound attenuator offers several advantages over the standard version, making it better suited for certain applications:

1. Wool thickness: The premium sound attenuator uses 100 mm thick mineral wool cut from roll material. This allows the insulation to better conform to the internal shape of the attenuator, resulting in more uniform sound attenuation.
2. Centre core: From diameter 315 onwards, the premium attenuators feature a centre core. The centre core directs the air through a perforated inner tube, increasing the contact of sound waves with the absorption layer. This particularly enhances attenuation of mid- and high-frequency noise.
3. More uniform sound reduction: The combination of flexible insulation, precise fitting, and thoughtful construction ensures that the premium variant provides a more consistent sound reduction across a wide frequency range. The standard variant’s sound attenuation can be somewhat less uniform, especially at lower frequencies.
