Spiro-SAFE premium silencer diameter 100 mm - length 1200 mm (100 mm insulation)

Spiro-SAFE premium sound attenuator diameter 100 mm - length 1200 mm (100 mm insulation)

The Spiro-SAFE premium sound attenuator diameter 100 mm - length 1200 mm (100 mm insulation) is a circular ventilation sound attenuator made of galvanized steel, specially designed for use in ventilation and air handling ducts. This attenuator is engineered to effectively reduce noise generated by airflow and mechanical fans, ensuring that sound levels in occupied spaces and technical rooms remain within acceptable limits.
The connection of the sound attenuator features male ends (insertion ends) on both sides with integrated double EPDM lip seals, providing an airtight and reliable connection to circular ventilation ducts.

Practical information

Sound absorption is achieved through glass wool placed between the inner and outer casing of the attenuator. Depending on the model, the wool thickness is 50 mm or 100 mm for the PREMIUM-100. The mineral wool is flexible and cut from roll material, allowing it to conform well to the shape of the attenuator and ensuring uniform sound attenuation along the entire length of the product. This guarantees consistent attenuation even with variable airflow and smaller duct dimensions.

The outer casing is made from high-quality galvanized steel to ensure durability and reliability, providing a robust and corrosion-resistant finish.

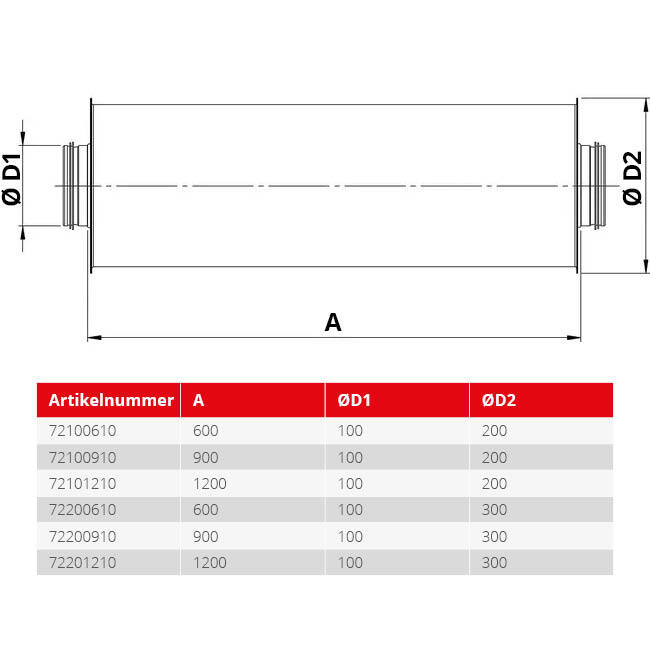

The construction is sturdy and functional, with a solid outer casing resistant to mechanical stress during installation and operation. The product code clearly indicates the type of attenuator, insulation thickness, duct diameter (Ød1), and attenuator length, making it easy to select the correct attenuator for any ventilation project, from residential buildings to complex commercial installations.

Why is the premium variant better than the standard variant?

The premium sound attenuator offers several advantages over the standard attenuator that make it better suited for certain applications:

1. Wool Thickness: The premium attenuator uses 100 mm thick mineral wool cut from rolls. This allows the insulation to better conform to the inner shape of the attenuator, resulting in a more uniform sound attenuation.
2. Centre core: Starting from diameter 315, premium attenuators are equipped with a centre core. The centre core directs airflow through a perforated inner tube, increasing the contact of sound waves with the absorption layer. This particularly enhances attenuation of mid and high frequencies.
3. More uniform sound reduction: The combination of flexible insulation, secure connections, and thoughtful construction ensures the premium variant provides more consistent sound attenuation across a wide frequency range. The standard variant may show slightly less uniform reduction, especially at lower frequencies.
