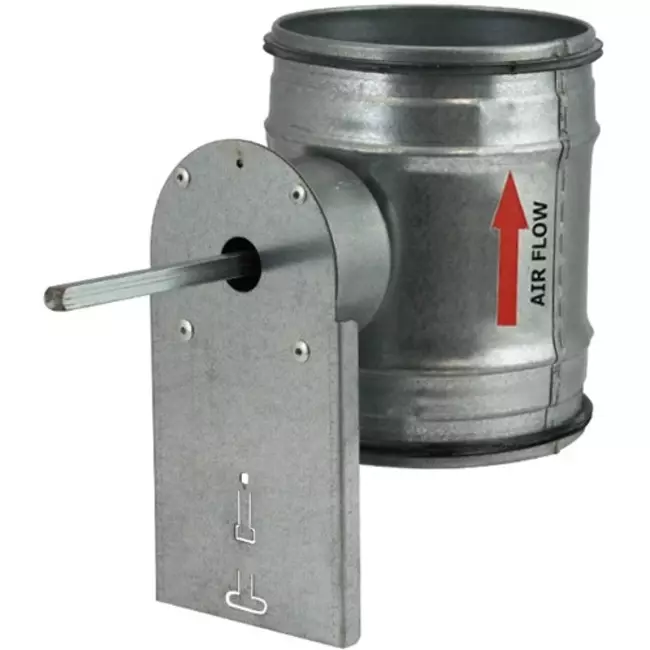

This motor operated check valve has an adjustable damper blade with locking device. By adjusting the control blade, the air passage (the flow rate) can be set manually. This valve is suitable for a pipe with a diameter of 100 mm. The damper is suitable for our Belimo motor range.
Material
The spiral control valves are manufactured to the highest standards. They are galvanised (Z275) according to the sendzimir process, making them durable in use and guaranteeing a long service life.
Air tightness class
The motor-operated control valve meets the strict requirements for airtightness class D (ATC 2), according to standard EN12237.
Ease of installation thanks to rubber seal
The rubber seal, fitted to our fittings as standard, not only ensures an airtight connection, but this so-called safe-connection also ensures that further assembly materials are limited.
| Brand | Econox |
| Category | Motorized control valve |
| GTIN | 8719544108746 |
| Manufacturer's item number | 75110101 |
| Article number | 75110101 |
| Category code | 57 |
| Diameter | 100 mm |
