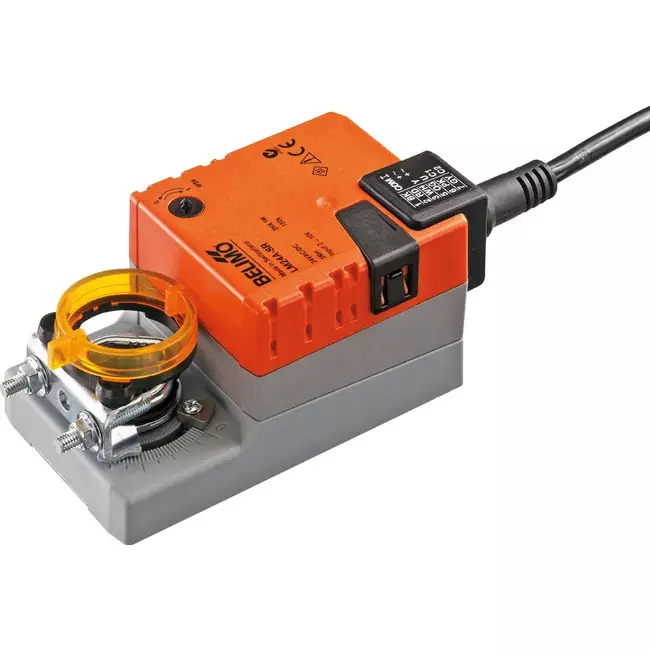

Belimo servomotor - 24V modulating 5 Nm - LM24A-SR
The Belimo servomotor LM24A-SR is a valve actuator that allows you to control the control damper in your ventilation system. With this servomotor you can open and close your control damper (Belimo open/closed control). As you can mount the motor directly on your valve shaft, it is very user-friendly. The valve actuators are packaged individually and are supplied with a twist guard strip, mechanical position indicator and a description/connection diagram. The Belimo has brushless and sensorless motors and has an algorithm that detects overload and prevents burn out. Five-year warranty.
With this servomotor you can control a control damper of up to 1 m². In 150 seconds the motor reaches an angle of 90°, where the maximum turning angle of this Belimo servomotor is 95°.
Technical data
- Valve actuator for valves up to approx. 1m²
- Torque: 5 Nm
- Running time: 150 seconds constant
- Maximum turning angle: 95°
- Supply voltage: AC/DC 24V - 50/60 Hz
- Control: Modulating
- Level of security: IP 54
- Manual adjustment with pushbutton
- Control DC 0 - 10V
- Operating range DC 2 - 10V
- Standby feedback DC2 - 10V
- Connection cable PVC 1 meter
- Rotation of your choice (left/right)
- Turning angle limitation mechanically integrated
- Shaft connection universal clamp block
The Belimo motor is mounted directly on our motor-controlled control dampers. View our selection of motor-controlled control dampers here.
| Brand | Belimo |
| Category | Belimo damper actuators |
| GTIN | 8719544154682 |
| Manufacturer's item number | LM24A-SR |
| Article number | 23010012 |
Specifications
| Automatic stroke recognition | No |
| Protection rating (IP) | IP54 |
| Degree of protection (NEMA) | 3 |
| Width | 66 mm |
| Category code | 101 |
| Depth | 116 mm |
| End contacts | None |
| Explosion-proof | No |
| Suitable for valve | No |
| Suitable for air appendage | Yes |
| Manual operation | Yes |
| Height | 61 mm |
| Auxiliary contacts | No |
| Auxiliary contacts optional | Yes |
| Adjustable working range | No |
| Adjustable position feedback | No |
| Link | 5 Nm |
| Length of connection cable | 1 meter |
| Duration | 150 s |
| Housing material | Plastic |
| Max rotation angle | 95 degrees |
| Max. electrical power consumption | 2 VA |
| With ISO 5211 Direct Mount top flange | No |
| With mechanical position indicator | Yes |
| With zero voltage feedback | No |
| With safety function | No |
| Tensionless closed | No |
| Standby report | 0-10 V |
| Control signal | 0-10 V |
| Permitted relative humidity | 0-95% |
| Implementation | Rotating |
| Supply voltage | voedingsspanning--24-v-ac-dc |
| Self-adjustable stroke length | No |
| Ambient temperature | -30-50 |
| Transfer | Magnetic |
| Potential free switch contact | Yes |
