Good points
- Brand: Maxivent by Econox
- Up to 5500 m³/h at 575 Pa
- Up to 90% thermal efficiency
- Integrated constant-flow controller

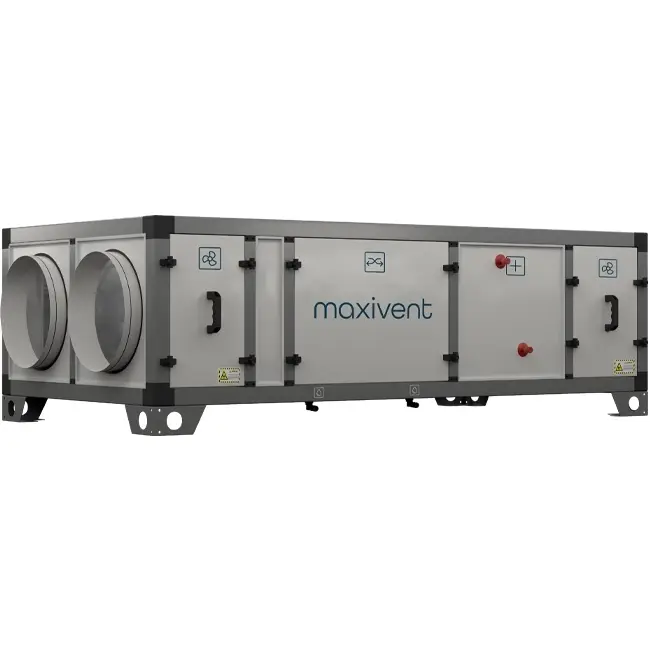

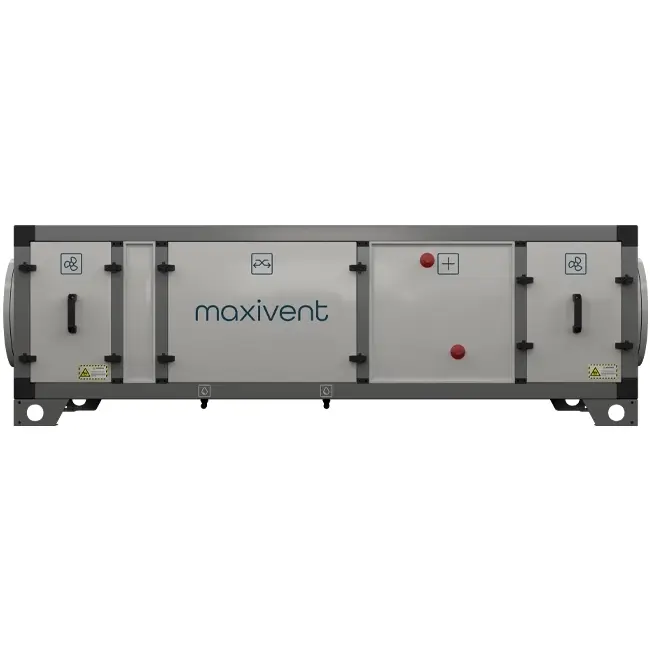

Maxivent Heat Recovery Air Handling Unit with Counterflow Heat Exchanger 5500 m³/h Horizontal Low Profile Left - M4555
The Maxivent by Econox M4555 system is a highly efficient, robust, advanced, and versatile balanced ventilation unit with heat recovery, specifically designed for educational institutions, theatres, and large-scale commercial buildings. With a nominal airflow of 5500 m³/h and heat recovery exceeding 80%, this air handling unit is ideally suited for your next commercial project where continuous ventilation without energy loss is a priority. The unit operates using an efficient counterflow heat exchanger, EC fans, an integrated control panel and remote controller with 10 m cable. It is plug & play, designed for floor mounting, and features handles on the left side for easy opening and maintenance.
Advantages and Features
- Durable casing: Constructed from aluminium profiles with a polyamide thermal break (TB2 class) to prevent thermal bridging. According to EN 1886, the unit achieves class D1, L1, T2, and TB2. The double-walled panels are insulated with 45 mm rock wool to minimise heat loss and noise.
- Counterflow heat exchanger: The integrated, efficient, and Eurovent-certified counterflow heat exchanger recovers over 80% of the thermal energy from the return air without mixing the air streams.
- EC fans: Direct-driven EC motorised plug fans with high-efficiency electronic commutation (EC) provide an eco-friendly solution with low energy consumption and low noise levels.
- Maintenance friendly: Easy access to the air handling unit via handles on the left side. Filters and optional accessories can be quickly replaced and/or installed.
- The Regin E3-DSP: Remote control is supplied as standard and offers intuitive remote control via an LCD display. This allows ventilation and air conditioning modes, temperature settings, dirty filter information and many other parameters to be easily adjusted and monitored remotely, without the need for direct access to the air handling unit. As standard, the maximum distance is 10 meters but it is possible to extend it even more by adding some additional components.
- Control panel: The fully integrated Regin control panel is suitable for constant pressure or constant airflow control. It can be equipped with CO₂ or humidity sensors and enables display and control of multiple functions (such as airflow regulation, temperature control, dirty filter alarms, frost protection, and more).
- Additional components: Thanks to its flexible design, the unit can be easily expanded with extra functionalities such as hot and chilled water coils, electric preheaters, silencers, and protective devices, tailored to the user’s requirements.
| Brand | Maxivent |
| Category | Maxivent M45 counterflow - side connection low profile |
| GTIN | 8719544340047 |
| Manufacturer's item number | 78010487 |
| Article number | 78010487 |
Specifications
| Category code | 261 |
| Housing material | Steel, lined |
| Max. air volume at 50 Pa | 5500 m³/h |
| Max. air volume at 100 Pa | 5600 m³/h |
| Max. air volume at 150 Pa | 5700 m³/h |
| Max. air volume at 200 Pa | 5750 m³/h |
| Max. air volume at 250 Pa | 5800 m³/h |
| Max. air volume at 300 Pa | 5850 m³/h |
| Max. air volume at 400 Pa | 5850 m³/h |
| Max. air volume at 500 Pa | 5750 m³/h |
| Max. air volume at 600 Pa | 5350 m³/h |
| Fan type | Direct |
| Type of motor | Electronically commutated (EC) |
| Number of fan levels | 3 |
| Heat recovery by | Counter current unit |
| Material heat exchanger | Aluminium |
| Type of cooling coil | Water/glycol |
| Type of heating coil | Electrical heating element |
| Change-over system | Yes |
| With bypass | No |
| Supply filter according to ISO 16890-1:2016 | ISO ePM1 |
| Efficiency supply filter according to ISO 16890-1:2016 | 50 % |
| Exhaust filter according to ISO 16890-1:2016 | ISO ePM10 |
| Efficiency exhaust filter according to ISO 16890-1:2016 | 50 % |
| With condensate drain | Yes |
| Frost protection circuit | Yes |
| With constant pressure control | Yes |
| With constant volume flow control | Yes |
| Connection voltage | 3x 400 V AC +N |
| Electrical connection | Terminals |
| With thermal overload protection | No |
| Power consumption | 5.46 kW |
| Thermal efficiency | 82 % |
| Suitable for electronic control | Yes |
| Suitable for low-current control | No |
| With rotational speed/frequency control | Yes |
| Suitable for transformer control | No |
| Nominal duct width indoor connection | 730 mm |
| Nominal duct height indoor connection | 1225 mm |
| Nominal duct width, outdoor connection | 730 mm |
| Nominal duct height, outdoor connection | 1225 mm |
| Nominal duct diameter, indoor connection | 630 mm |
| Nominal duct diameter, outdoor connection | 630 mm |
| Connection | Flange |
| Degree of protection (IP) | IP54 |

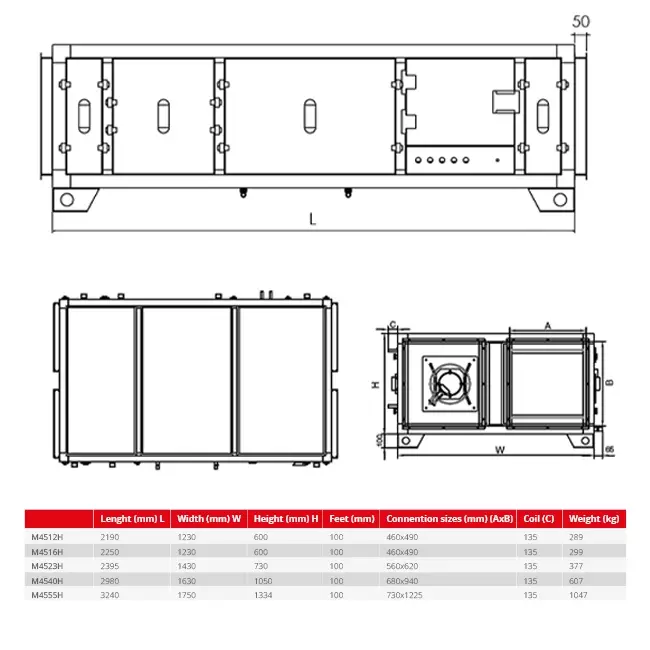

| Length | 3240 mm |
| Width | 1750 mm |
| Height | 1334 mm |
| With roof plate | No |
| With support frame | Yes |
| Weight | 1047 kg |
| Device emplacement | Indoor and outdoor positioning |
