Good points
- Brand: Maxivent by Econox
- Up to 2300 m³/h at 540 Pa
- Up to 90% thermal efficiency
- Integrated constant-flow controller

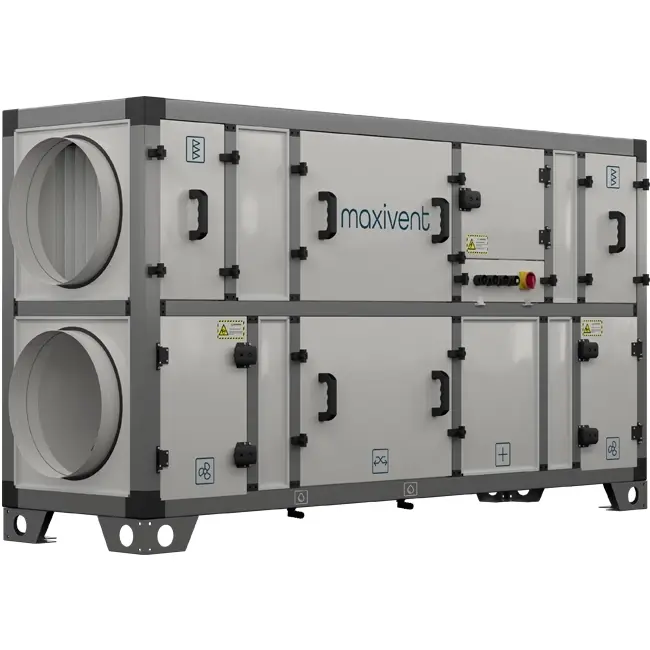

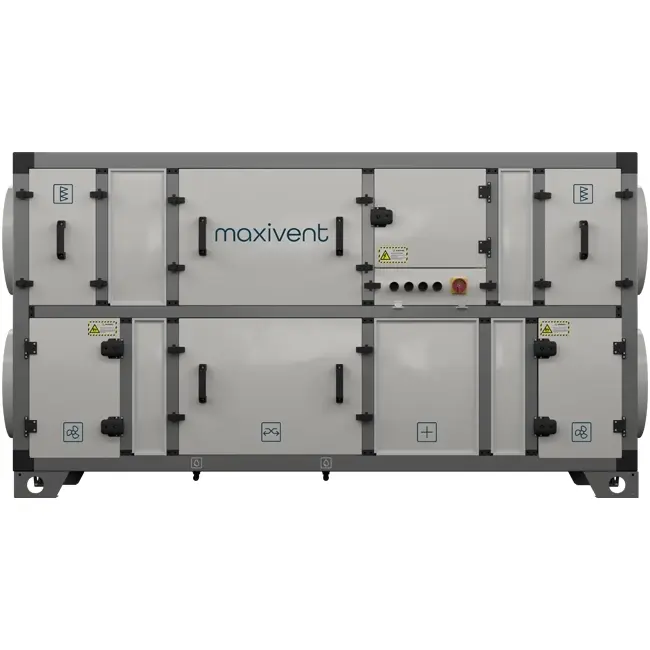

Maxivent Heat Recovery Air Handling Unit with Counterflow Heat Exchanger 2300 m³/h Horizontal Left - M4523
The Maxivent by Econox M4523 system is a highly efficient, robust, advanced and versatile balanced ventilation unit with heat recovery, specifically designed for conference rooms, offices, and small to medium-sized commercial buildings. With a nominal airflow of 2300 m³/h and heat recovery exceeding 80%, this air handling unit is ideal for your next commercial project where continuous ventilation without energy loss is a priority. The unit operates using an efficient counterflow heat exchanger, EC fans, an integrated control panel and remote controller with 10 m cable.The unit is plug & play, designed for floor mounting, and features handles on the left side for easy access and maintenance.
Benefits and Features
- Durable Housing: Constructed from aluminium profiles with a polyamide thermal break (TB2-class) to prevent thermal bridging. According to EN 1886, the unit achieves class D1, L1, T2 and TB2. The double-walled panels are insulated with 45 mm rock mineral wool to minimise heat loss and reduce noise.
- Counterflow Heat Exchanger: The integrated, efficient and Eurovent-certified counterflow heat exchanger recovers over 80% of the thermal energy from the exhaust air without mixing airflow streams.
- EC Fans: Direct-driven EC motorised plug fans with high-efficiency electronic commutation (EC) provide an eco-friendly solution with low energy consumption and low noise levels.
- Maintenance Friendly: Easy access to the air handling unit via handles on the left side. Filters and optional accessories can be easily replaced and/or installed.
- The Regin E3-DSP: Remote control is supplied as standard and offers intuitive remote control via an LCD display. This allows ventilation and air conditioning modes, temperature settings, dirty filter information and many other parameters to be easily adjusted and monitored remotely, without the need for direct access to the air handling unit. As standard, the maximum distance is 10 meters but it is possible to extend it even more by adding some additional components.
- Control Panel: The fully integrated Regin control panel is suitable for constant pressure or constant airflow control. It can be equipped with a CO₂ or humidity sensor and supports display and operation of various functions (such as airflow control, temperature regulation, dirty filter alarms, frost protection and more).
- Additional Components: Thanks to its flexible design, the unit can be easily extended with extra functionalities, such as heating and cooling coils, electric preheaters, silencers and protective features, tailored to the user’s requirements.
| Brand | Maxivent |
| Category | Maxivent M45 counterflow - side connection |
| GTIN | 8719544339980 |
| Manufacturer's item number | 78010481 |
| Article number | 78010481 |
Specifications
| Category code | 261 |
| Housing material | Steel, lined |
| Max. air volume at 50 Pa | 2500 m³/h |
| Max. air volume at 100 Pa | 2580 m³/h |
| Max. air volume at 150 Pa | 2825 m³/h |
| Max. air volume at 200 Pa | 2850 m³/h |
| Max. air volume at 250 Pa | 2775 m³/h |
| Max. air volume at 300 Pa | 2600 m³/h |
| Max. air volume at 400 Pa | 2540 m³/h |
| Max. air volume at 500 Pa | 2360 m³/h |
| Max. air volume at 600 Pa | 2150 m³/h |
| Fan type | Direct |
| Type of motor | Electronically commutated (EC) |
| Number of fan levels | 3 |
| Heat recovery by | Counter current unit |
| Material heat exchanger | Aluminium |
| Type of cooling coil | Water/glycol |
| Type of heating coil | Electrical heating element |
| Change-over system | Yes |
| With bypass | No |
| Supply filter according to ISO 16890-1:2016 | ISO ePM1 |
| Efficiency supply filter according to ISO 16890-1:2016 | 50 % |
| Exhaust filter according to ISO 16890-1:2016 | ISO ePM10 |
| Efficiency exhaust filter according to ISO 16890-1:2016 | 50 % |
| With condensate drain | Yes |
| Frost protection circuit | Yes |
| With constant pressure control | Yes |
| With constant volume flow control | Yes |
| Connection voltage | 3x 400 V AC +N |
| Electrical connection | Terminals |
| With thermal overload protection | No |
| Power consumption | 2.2 kW |
| Thermal efficiency | 83 % |
| Suitable for electronic control | Yes |
| Suitable for low-current control | No |
| With rotational speed/frequency control | Yes |
| Suitable for transformer control | No |
| Nominal duct width indoor connection | 620 mm |
| Nominal duct height indoor connection | 560 mm |
| Nominal duct width, outdoor connection | 620 mm |
| Nominal duct height, outdoor connection | 560 mm |
| Nominal duct diameter, indoor connection | 450 mm |
| Nominal duct diameter, outdoor connection | 450 mm |
| Connection | Flange |
| Degree of protection (IP) | IP54 |

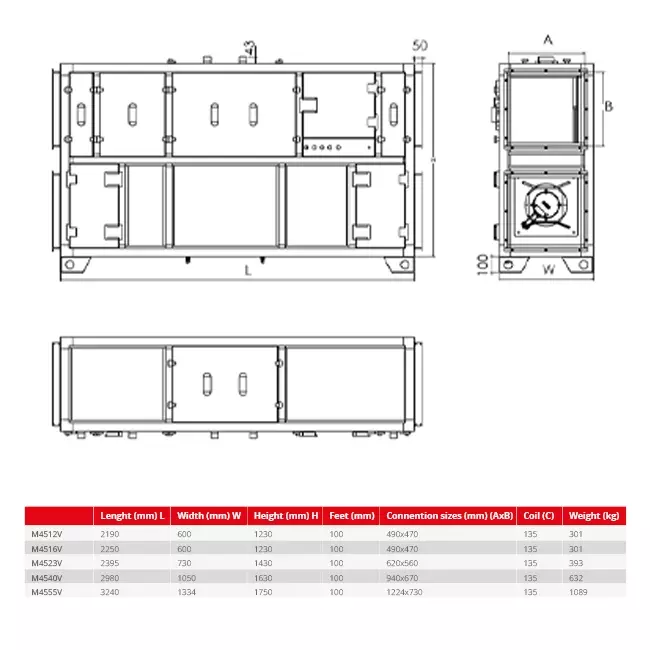

| Length | 2395 mm |
| Width | 730 mm |
| Height | 1430 mm |
| With roof plate | No |
| With support frame | Yes |
| Weight | 393 kg |
| Device emplacement | Indoor and outdoor positioning |
