Good points

For supply
Extruded aluminum
Coanda effect
Horizontal & vertical airflow

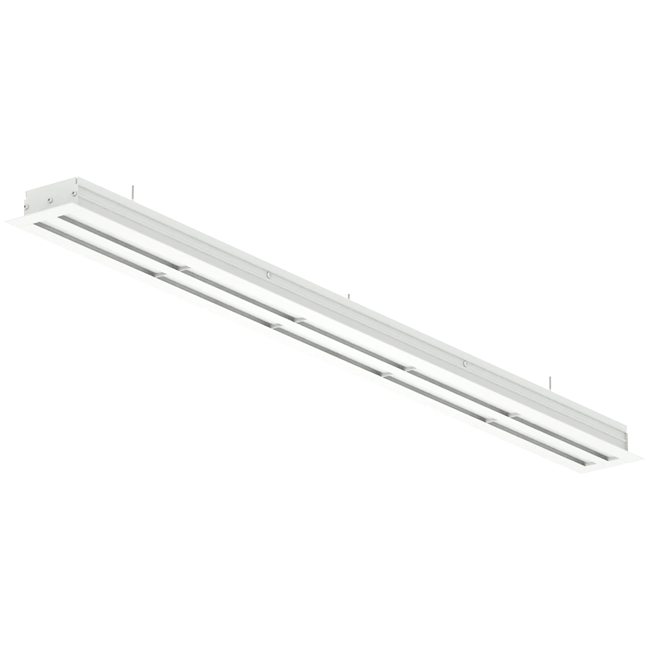

Aluminium linear diffuser with 1 adjustable pattern blade – 1250 mm – RAL 9016

The Econox linear diffuser is made of extruded aluminium and designed for installation in ceilings or high walls. The diffuser features a single row of blades and integrated adjustable deflectors that allow for both horizontal and vertical air discharge. Thanks to the Coanda effect design, the air is evenly distributed along the ceiling, ensuring comfortable and draught-free air distribution in spaces such as offices, shops, restaurants, and hotels.

Practical information

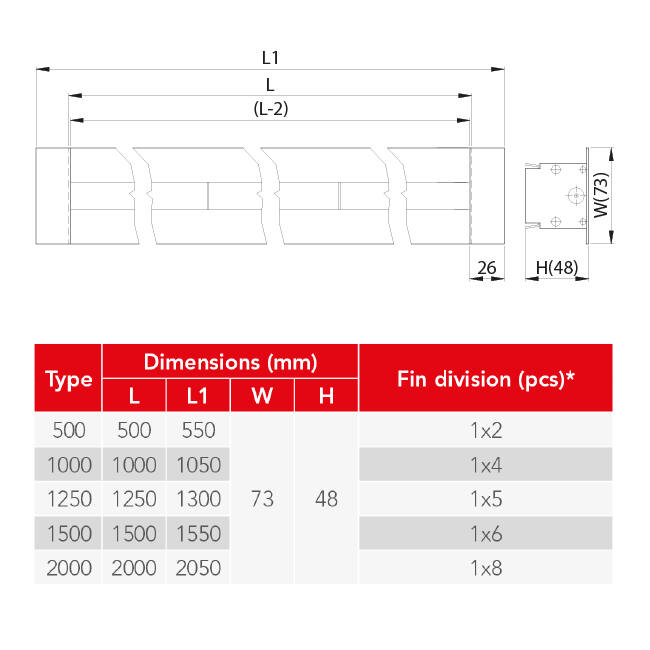

The linear diffuser has one row of blades (one slot zone) and a length of 1250 mm. The height of the diffuser is approximately 48 mm and the depth around 73 mm. Both the frame and blades are made of aluminium and powder coated in RAL 9010, 9016 or 9005.

Installation and applications

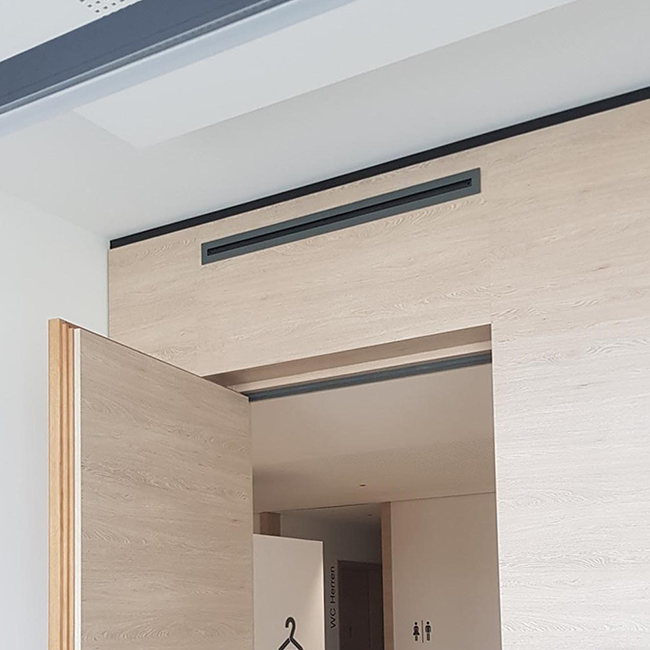

The linear diffuser can be installed individually or in continuous rows. For optimal air distribution and sound attenuation, the diffuser should be connected to a suitable plenum. The linear diffuser is fixed directly into the ceiling or wall profile, and the deflectors can be manually adjusted after installation to achieve the desired airflow direction.

Brand	Econox
Category	Linear slot diffusers with adjustable blades
GTIN	8719544331120
Manufacturer's item number	79000404
Article number	79000404

Specifications

Category code	59
Material	Aluminium
Without plenum	Yes
Number of connections	1
Connection	Other
Front length	1300 mm
Front width	73 mm
Built-in height	48 mm
Number of slits	1
With cover edge	Yes
Without flange frame	No
With volume control	No
Air pattern, adjustable	Yes
Length of plenum	1250 mm
