Good points

For supply
Extruded aluminum
Coanda effect
Horizontal & vertical airflow

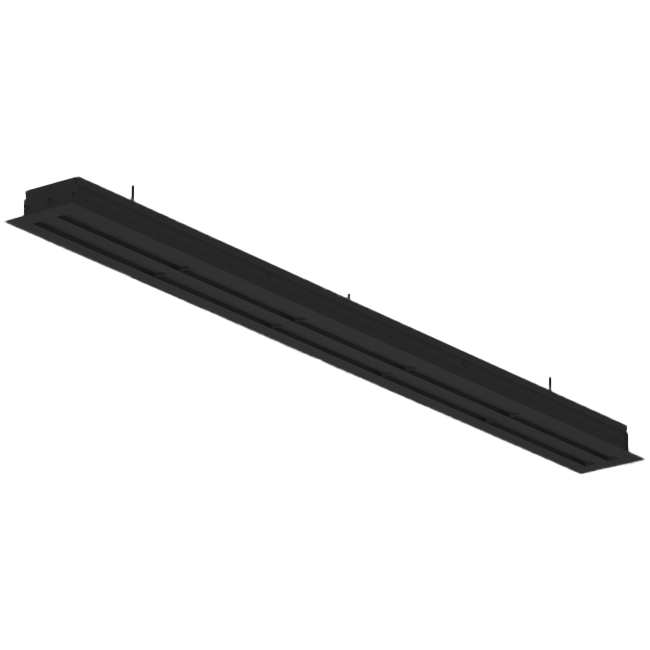

Aluminium linear grille with 1 adjustable pattern blade – 1250 mm – RAL 9005

The Econox linear grille is manufactured from extruded aluminium and designed for installation in ceilings or high walls. The grille features a single row of blades and integrated adjustable deflectors that enable both horizontal and vertical air discharge. Thanks to the Coanda effect design, the air is evenly distributed along the ceiling, providing comfortable and draught-free air distribution in spaces such as offices, shops, restaurants, and hotels.

Practical information

The linear grille has one row of blades (one slot zone) and a length of 1250 mm. The grille height is approximately 48 mm and the depth around 73 mm. Both the frame and the blades are made of aluminium and powder-coated in RAL 9010, 9016, or 9005.

Installation and applications

The linear grille can be installed individually or in continuous rows. For optimal air distribution and noise attenuation, the grille should be connected to a suitable plenum. The linear grille is mounted directly into the ceiling or wall profile, and the deflectors can be manually adjusted after installation to achieve the desired airflow direction.

Brand	Econox
Category	Linear slot diffusers with adjustable blades
GTIN	8719544331328
Manufacturer's item number	79000424
Article number	79000424

Specifications

Category code	59
Material	Aluminium
Without plenum	Yes
Number of connections	1
Connection	Other
Front length	1300 mm
Front width	73 mm
Built-in height	48 mm
Number of slits	1
With cover edge	Yes
Without flange frame	No
With volume control	No
Air pattern, adjustable	Yes
Length of plenum	1250 mm
