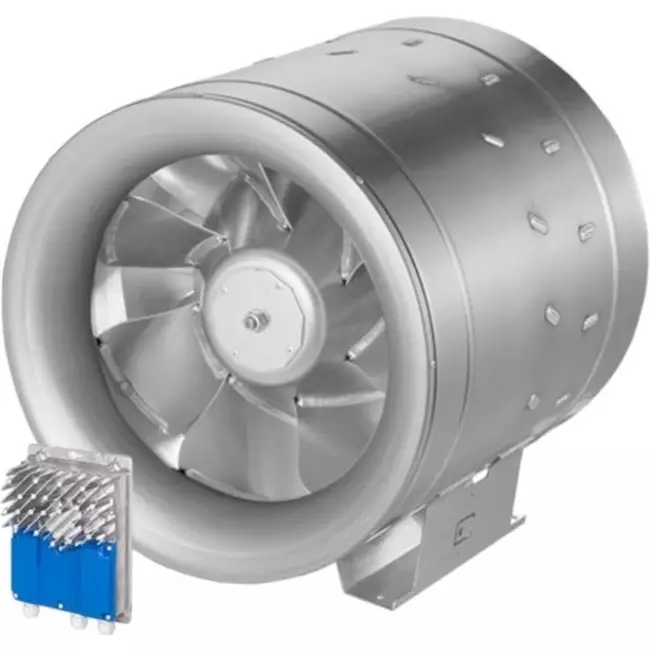

The EL 450 EC O 01 from Ruck is an advanced and powerful tube fan with a high efficiency of 68.6% and an impressive air volume of up to 9,700 m³/h. Manufactured from aluminum (AlMg3), this tube fan features a specially designed impeller and diffuser with a three-dimensional geometry. This results in maximum airflow performance and minimal energy loss. Direct installation in the duct is possible both horizontally and vertically and is made easier by the integrated mounting bracket. The impeller is dynamically balanced according to G6.3 DIN ISO 1970, ensuring low-vibration and quiet operation. The EL 450 EC O 01 is the ideal solution for larger commercial and industrial ventilation systems where high air capacity, energy efficiency, and flexible installation are of great importance.

Advantages and Features

• Maximum Airflow 9700 m³/h: The fan offers a very high air capacity, ensures powerful air movement, and is ideal for applications requiring large air volumes.
• IP55 Rating: The IP55 classification guarantees that the fan is protected against dust ingress and water jets, ensuring reliable performance in demanding environments.
• EC Motor: Equipped with a modern EC motor, the fan combines low energy consumption with continuously variable speed control for maximum efficiency and flexibility in any application.
• Thermal Protection: The thermally protected motor automatically shuts off in the event of overheating, increasing operational safety and preventing damage to the fan.
• AlMg3 Housing: The casing is made of AlMg3, a robust aluminum-magnesium alloy that provides excellent corrosion resistance and a low weight.

Applications and Use

The EL 450 EC O 01 is designed for use in large commercial and industrial ventilation systems where high air capacity, energy efficiency, and reliable operation are essential. Thanks to its powerful EC motor, aerodynamically optimized impeller, and lightweight AlMg3 housing, this tube fan is perfectly suited for both supply and exhaust air applications in production halls, warehouses, parking garages, technical rooms, and utility buildings. The option for both horizontal and vertical installation, along with direct in-line duct mounting, ensures flexible integration in a wide range of systems. In addition, the IP55 protection ensures dependable operation even in dusty or humid environments.

Technical Information

The ETALINE tube fan operates on a 400 V three-phase AC power supply (50 Hz) and has a rated power of 2,320 W with a current draw of 3.6 A. It remains reliable at ambient temperatures up to 60 °C. With a sound level of 86 dB(A) and a weight of only 16.8 kg, this fan offers a powerful yet compact and easy-to-install solution for a wide variety of applications.
