Good points
- Brand: Ruck
- EC motor
- Up to 11580 m3/h
- Speed controllable

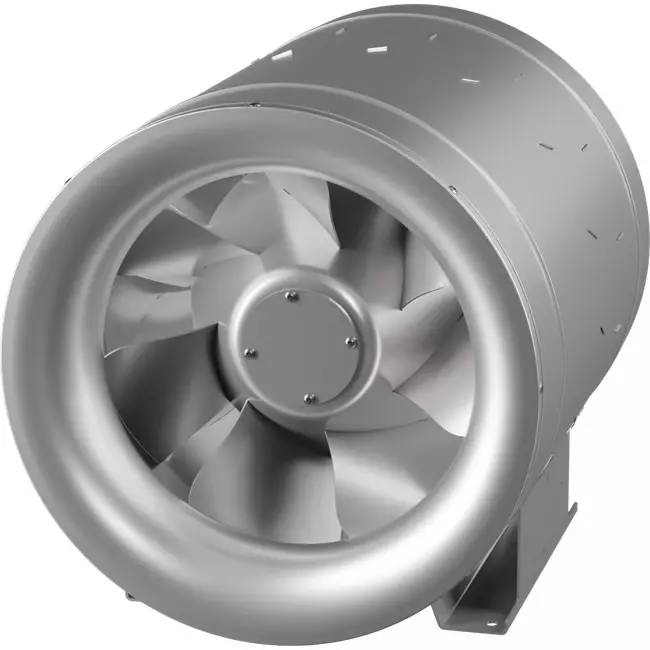

Ruck Etaline Duct Fan with EC Motor
The Ruck ETALINE duct fan EL 560 EC K01 is equipped with an innovative, energy-efficient diagonal fan that has set the benchmark for efficiency since 2007. The fan features optimized aerodynamics fine-tuned through Computational Fluid Dynamics (CFD) for maximum performance. It is powered by a high-efficiency EC motor that is infinitely adjustable, providing ideal airflow control for any application. The fan is suitable for transporting air at temperatures of up to 60°C in continuous operation. The housing material is made of lightweight and durable aluminum, ensuring a robust and long lifespan for the fan.
Powerful and Efficient
The ETALINE EL 560 EC K01 duct fan delivers excellent performance even at high airflows while remaining energy-efficient. Thanks to the advanced aerodynamics, energy consumption is minimized without compromising efficiency. The fan is designed for use in various environments, such as airspaces that need to be constantly cooled or heated. The EC motor allows for easy adjustment to a wide range of airflow requirements, and installation is straightforward thanks to the integrated mounting brackets.
Ruck Ventilatoren GmbH is a leading German company with over 25 years of experience in developing energy-efficient ventilation technology. The company is a market leader in duct fans with EC motors and employs more than 300 staff members daily to further advance cutting-edge ventilation technologies. All products comply with the latest ERP requirements (Energy Related Products), ensuring the highest quality and energy efficiency.
Features and Specifications
- Innovative, energy-efficient diagonal fan
- Optimized aerodynamics (CFD-optimized)
- High-efficiency EC motor, infinitely adjustable
- Housing made of lightweight, durable aluminum
- Suitable for medium temperatures up to 60°C in continuous operation
- Variable discharge direction
More Information
| Brand | Ruck ventilatoren GmbH |
| Category | Ruck Etaline Inline extractor fans |
| GTIN | 4061199039796 |
| Manufacturer's item number | EL 560 EC K 01 |
| Article number | 65164051 |
Specifications
| Category code | 35 |
| Length | 582 mm |
| Connection | Insert end |
| Housing material | Aluminium |
| Electrical connection | Terminals |
| Degree of protection (IP) | IP55 |
| Connection voltage | 1642 V |
| With thermal overload protection | Yes |
| Indirect drive | No |
| Air volume, unloaded | 11580 m³/h |
| Power consumption | 1.68 kW |
| Suitable for frequency control | No |
| Pole-reversible | No |
| Suitable for transformer control | No |
| Suitable for electronic control | Yes |
| Max. air temperature | 60 °C |
| Suitable for low-current control | Yes |
| Direct-current motor | Yes |
| 2-speed motor | No |
| Duct diameter | 560 mm |
