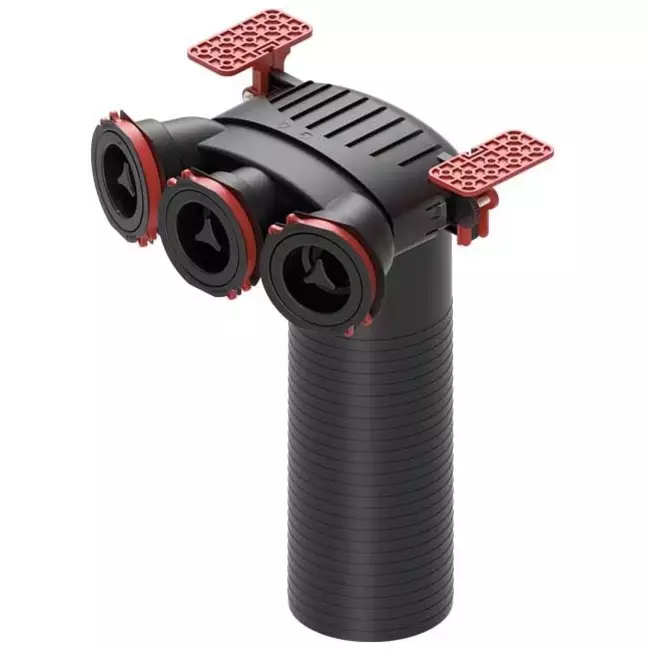

This plenum box is part of the Aria air distribution system by Heatpex. Constructed from high quality polypropylene the plenum box allows the connection of up to 3 Ø 75 mm ducts to a single Ø 125 mm exhaust/supply duct. Adaptable mounting flaps with height adjustment make way for easy mounting on or under ceilings.
This plenum set contains the following:
Attention!

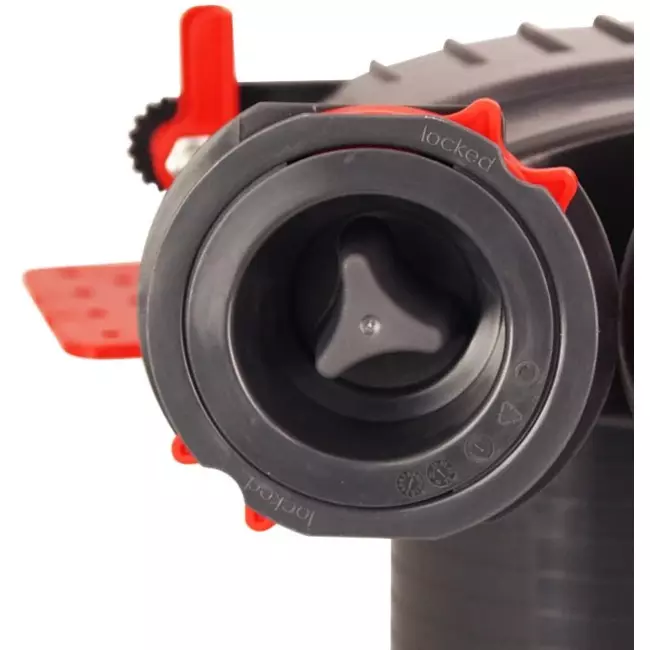

There is a red rubber ring around the end caps of the air distribution box and valve collector, and around the connection piece and connector. You put this around the tube before you connect it, so that you create an airtight connection. Then use the clamp to secure the tube. Never throw away the red rubber rings, as we do not have them separately. See picture with steps.
| Brand | HEATPEX |
| Category | Heatpex Aria air distribution system 75 mm |
| GTIN | 5908226240024 |
| Manufacturer's item number | 523375001 |
| Article number | 14400302 |
| Material | Plastic |
| With pre-assembled seal | Yes |
| Nom. channel diameter branches | 75 mm |
| Nom. main duct diameter | 124.1 mm |
| Type | Collector |
| Werkende lengte | 248 mm |
| Aansluiting aftakking | Male |
| Connection main channel | Female |
| Number of branches | 3 |
