Good points
- 10 Ø75 mm connections
- Airtightness class D, ATC-1
- OneClick technology

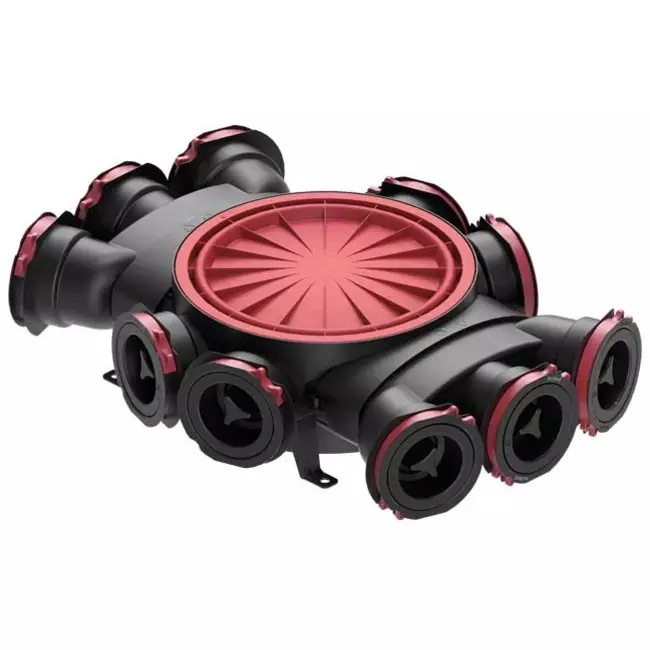

Heatpex Aria air distribution box with 10 sockets for Ø 75 mm ducts

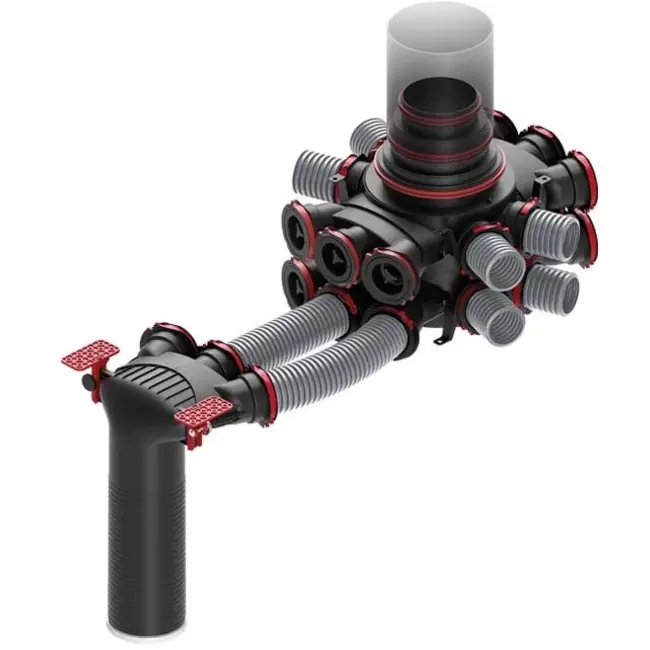

This distribution box is part of the high-quality, user-friendly air distribution system by Heatpex. Made of high quality, pollution-resistant polypropylene. The distribution box is meant to be directly connected to an MVHR or MEV unit in order to provide the desired rooms/area's of fresh air or as a means to exhaust the rooms of polluted air through the use of Heatpex ducts.
Benefits of using the Heatpex Aria distribution system:
- A complete air distribution system with only 5 basic parts
- Modular construction enables for expansion with additional distribution boxes
- Compact in size (only 106 mm in height) for easy installation in walls, floors and ceilings
- Airtightness class (ATC-1 according to PN-EN 17192)

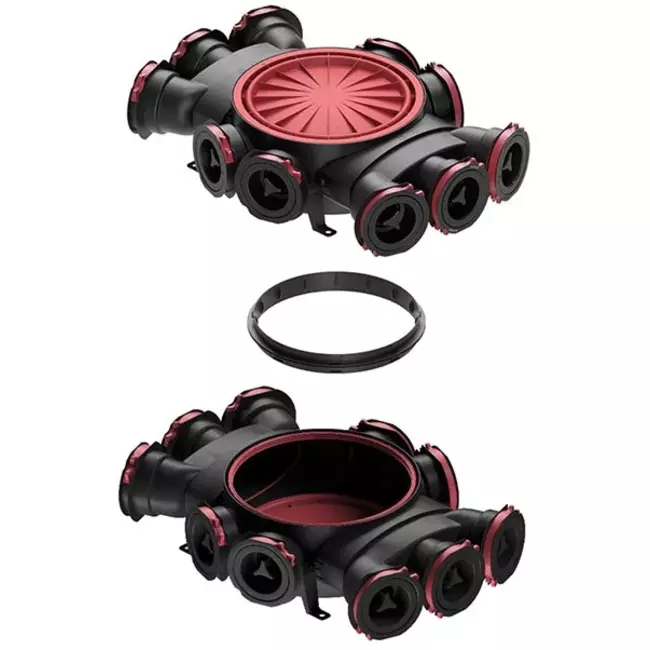

This set contains the following:

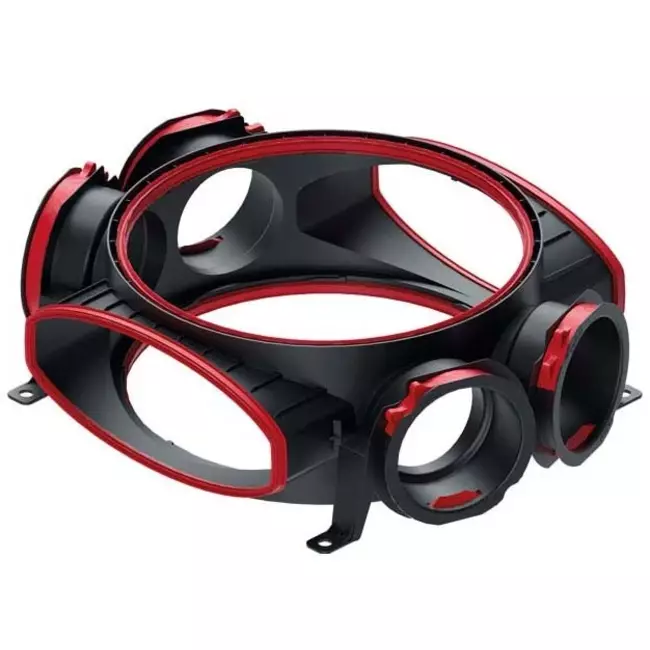

- 1x Main unit with 4 sockets Ø 75 mm
- 2x Elliptical seat gasket modules 3 x 75 mm

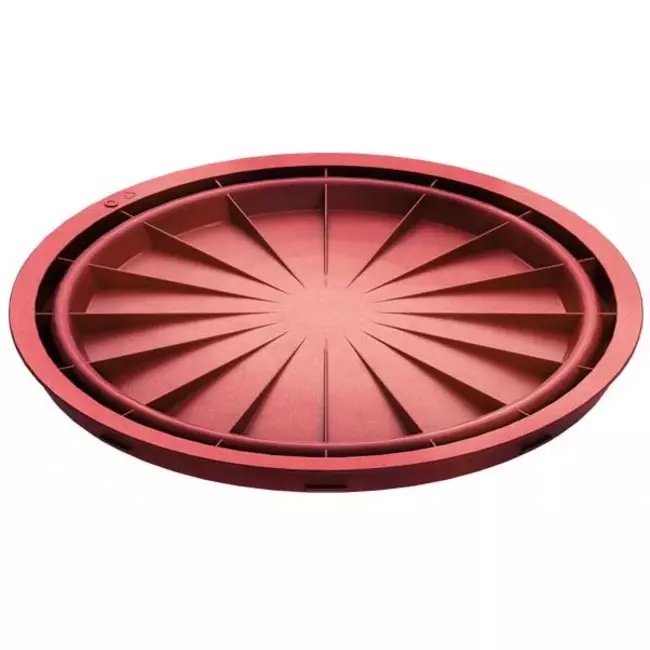

- 2x Cover with gasket for main unit
- 10x Mounting ring for air duct
- 10x End cap with gasket for duct sockets Ø 75 mm
Attention!
There is a red rubber ring around the end caps of the air distribution box and valve collector, and around the connection piece and connector. You put this around the tube before you connect it, so that you create an airtight connection. Then use the clamp to secure the tube. Never throw away the red rubber rings, as we do not have them separately. See picture with steps.
| Brand | HEATPEX |
| Category | Heatpex Aria 75mm |
| GTIN | 5908226240017 |
| Manufacturer's item number | 523000001 |
| Article number | 14400301 |
Specifications
| Connexion de branche | Other |
| Connection main channel | Male |
| Number of branches | 10 |
| Category code | 197 |
| Material | Plastic |
| With pre-assembled seal | Yes |
| Nom. channel diameter branches | 75 mm |
| Nom. main duct diameter | 125 mm |
| Type | Distribution box |
| Sub-connection | Yes |
| Operating length | 498 mm |
| Side connection | Yes |
