Good points

Brand: Econox
Melting lead 72°C
230V servo motor
Class 3, Class C according to EN 1751

Round Fire Damper E-FDC DD M230 D100 with Servomotor 230V

The E-FDC DD M230 D100 is a circular fire damper with servomotor control, equipped with a Belimo 230V motor and supplied with an installation frame. This damper is suitable for use in fire and smoke separating solid or flexible walls, with a fire resistance of up to 60 minutes, depending on the installation construction. The included installation frame allows quick and easy installation, reducing installation costs and time. The damper blade thickness is 25 mm and the thermal probe must be mounted in the connecting duct for proper operation.

Benefits of the E-FDC DD M230 D100 Round Fire Damper with Servo Motor 230V

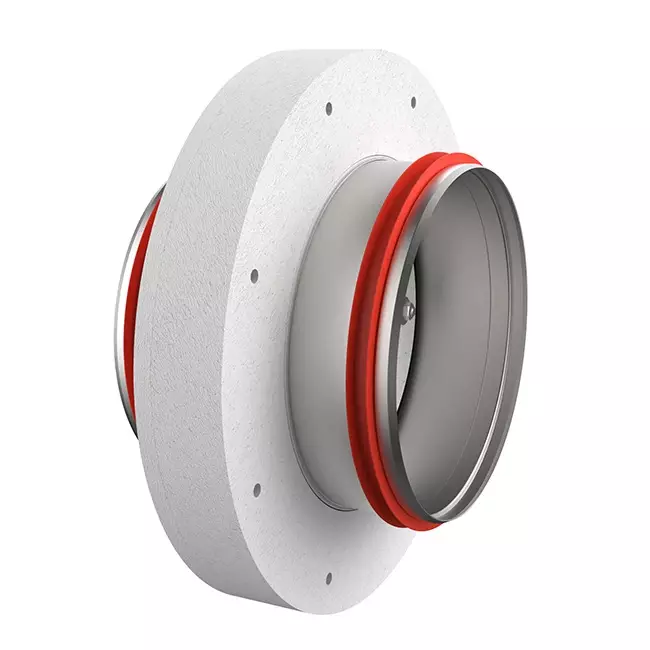

Includes installation frame for easy and quick mounting

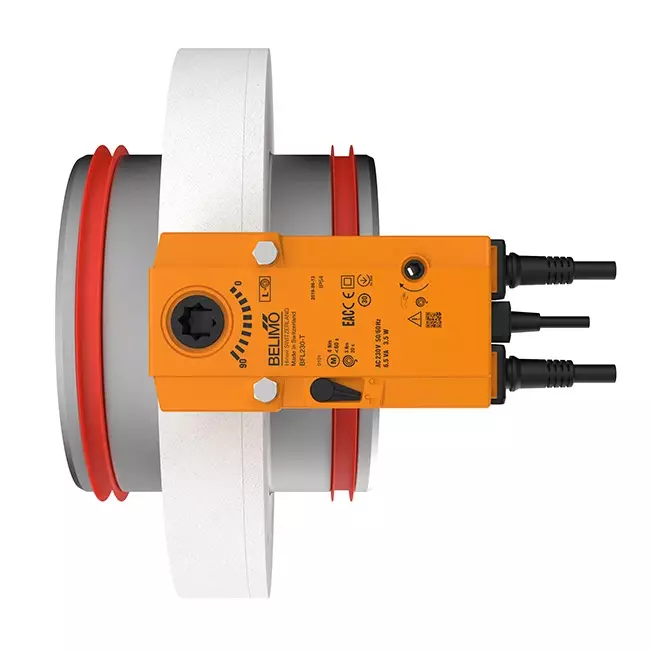

Equipped with a compact and lightweight Belimo servo motor (230V)
Fire resistance up to 60 minutes, depending on the installation situation
Damper blade density is class C, tested according to EN 1751.
Compact and lightweight design without operating mechanism on the valve body.

Available versions

The E-FDCDD fire dampers are available in different versions, including with different installation frames and motor options such as Belimo 24V or 230V motors. These dampers are available in different duct diameters ranging from 100 mm to 315 mm. The E-FDCDD series has a damper blade thickness of 25 mm

Why choose the E-FDC DD M230 D100 Round Fire Damper

The E-FDC DD M230 D100 is the ideal choice for situations where smoke and fire safety are critical. With its compact design, reliable Belimo 230V servo motor and quick installation with the included frame, this damper offers an efficient and durable solution for ventilation systems. The valve complies with EN 1751 and EN 15650 standards, ensuring safety and reliability in your application.

Brand	Econox
Category	Fire damper round compact 230V
GTIN	8719544305527
Manufacturer's item number	E-FDC-DD-M230 d100
Article number	50301264

Specifications

Category code	233
Material	Steel
Nominal duct diameter	100 mm
Fire damper diameter	100 mm
Connection 1	Insert end
Connection 2	Insert end
Free passage	0.005 %
Surface protection	Sendzimir galvanised
Operation	Electromotor 230 V
Built-on end switch in closed position	Yes
Built-on end switch in open position	Yes
Can be used on solid walls/floors	No

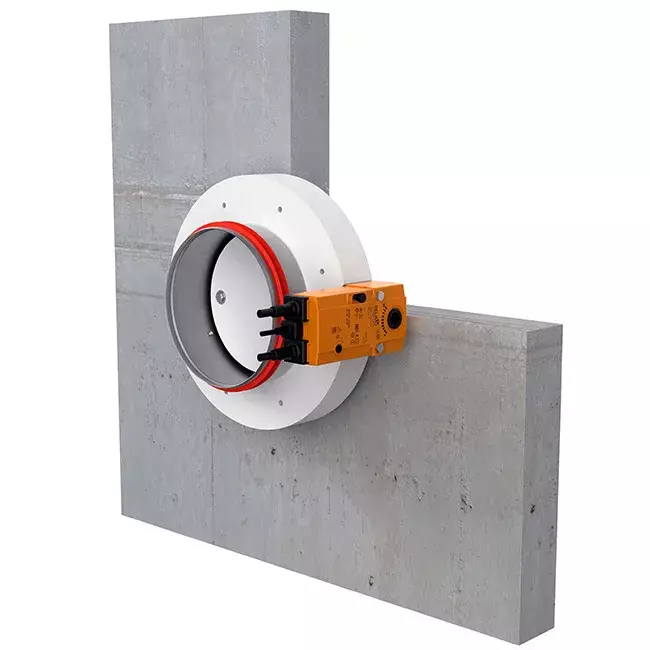

Can be used directly against walls/floors	Yes
Can be used in separating partitions	No
Can be used at a distance from walls	No
With inspection hatch	No
With square mounting stone	No
With round mounting stone	Yes

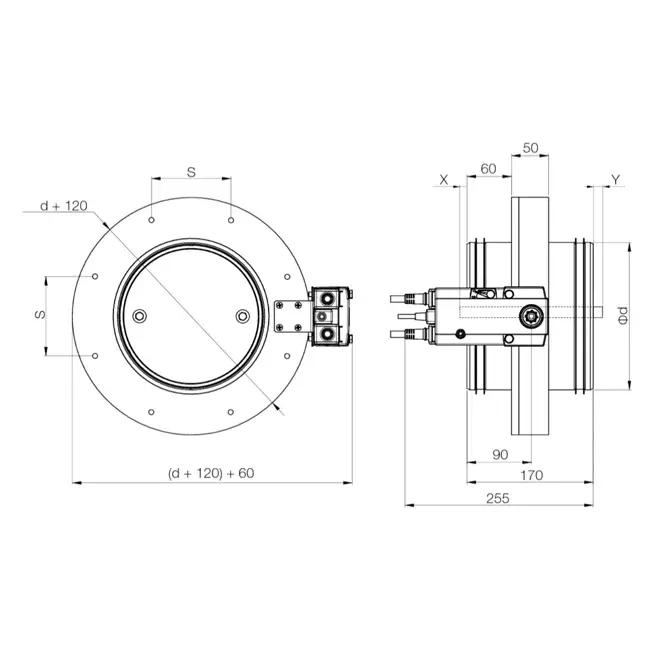

Length	170 mm
Working length	50 mm

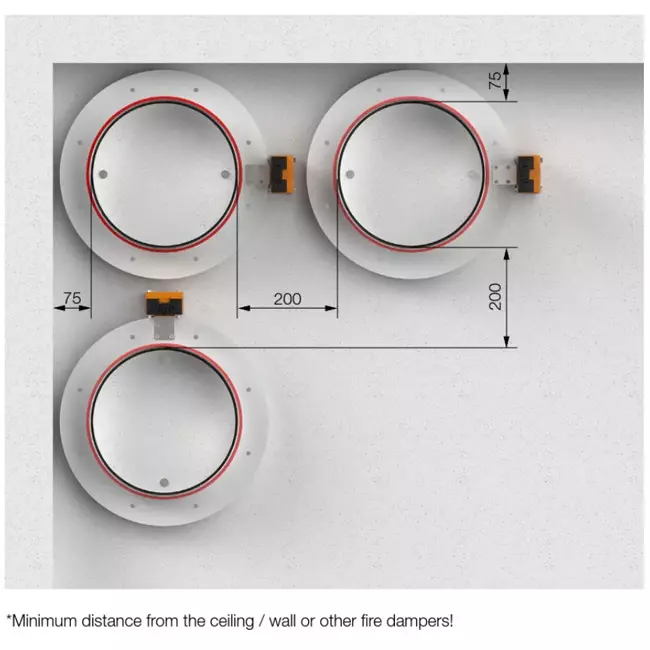

Min. operating space required	300 mm
