Good points
- Brand: Econox
- Flap thickness 25mm
- 24V servo motor
- Class 3, Class C according to EN 1751

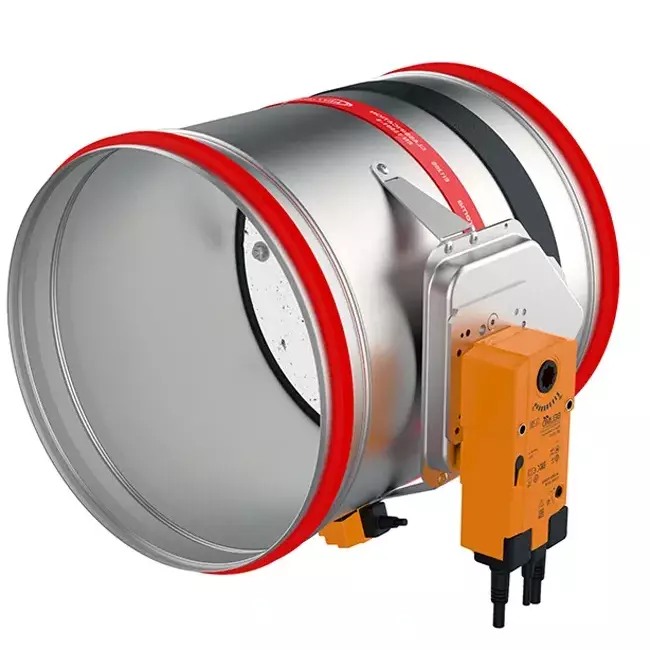

Round Fire Damper E-FDC25 D100 M24 S with Servomotor 24V
The E-FDC25 D100 M24 S is a servomotor-controlled circular fire damper equipped with a Belimo servomotor and 72°C thermoelectric fuse. This fire damper provides reliable fire resistance of up to 120 minutes, depending on the installation design. The damper features limit switches for easy reading of the damper position (open or closed). With a damper blade thickness of 25 mm and conforming to the EN 15650 standard, this is an excellent choice for fire safety in your ventilation system
Benefits of the E-FDC25 D100 M24 S Round Fire Damper with Servo Motor
- Equipped with a Belimo servo motor for reliable and efficient operation
- Fire resistance up to 120 minutes, depending on the installation situation
- Equipped with inspection openings
- Damper blade of only 25 mm thick ensures minimal pressure loss and noise.
- Limit switches display valve position (open/close) for additional control
Available versions
The E-FDC25 D100 M24 S fire dampers are available in different versions, such as installation frames and smoke sensors that are optionally available, allowing you to customize the damper to your specific installation needs. These fire dampers are suitable for both horizontal and vertical mounting and can be used in a variety of installation situations
Why choose the E-FDC25 D100 M24 S Circular Fire Damper with Servo Motor?
With the E-FDC25 D100 M24 S, you are choosing an advanced fire damper that ensures safety in your ventilation system. Thanks to the Belimo servo motor and high-quality workmanship, this fire damper is easy to install and maintain. You can rely on its long-lasting performance and reliable protection in case of fire.
| Brand | Econox |
| Category | Fire damper round servo motor 24V |
| GTIN | 8719544304803 |
| Manufacturer's item number | E-FDC25-D100-M24-S |
| Article number | 50301192 |
Specifications
| Category code | 41 |
| Material | Steel |
| Nominal duct diameter | 100 mm |
| Fire damper diameter | 100 mm |
| Connection 1 | Insert end |
| Connection 2 | Insert end |
| Free passage | 0.005 % |
| Surface protection | Other |
| Operation | Electromotor 24 V |
| Built-on end switch in closed position | Yes |
| Built-on end switch in open position | Yes |
| Can be used on solid walls/floors | Yes |
| Can be used directly against walls/floors | No |
| Can be used in separating partitions | Yes |
| Can be used at a distance from walls | Yes |
| With inspection hatch | Yes |
| With square mounting stone | No |
| With round mounting stone | No |

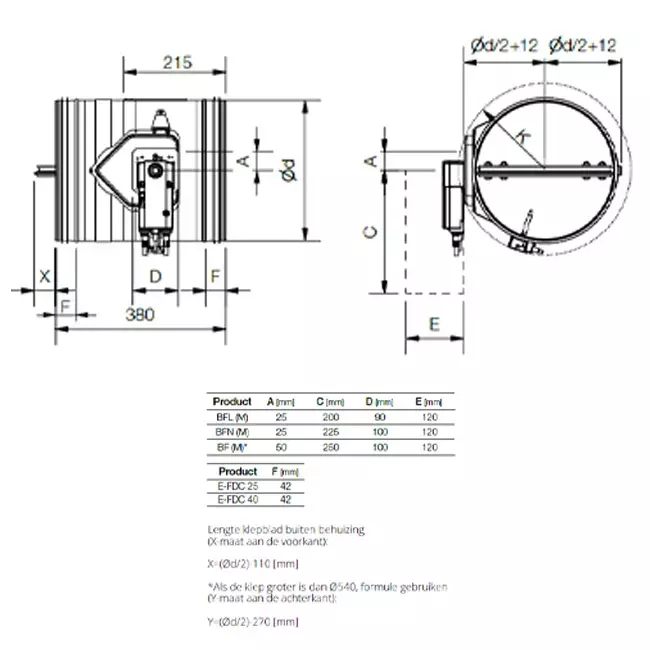

| Length | 380 mm |
| Working length | 296 mm |
| Min. operating space required | 120 mm |
