Ergovent recessible frameless linear grille 1050 mm with connection diameter 125 mm - air conditioning - 1 slot

Ergovent recessible frameless linear grille 1050 mm with connection diameter 125 mm - air conditioning - 1 slot

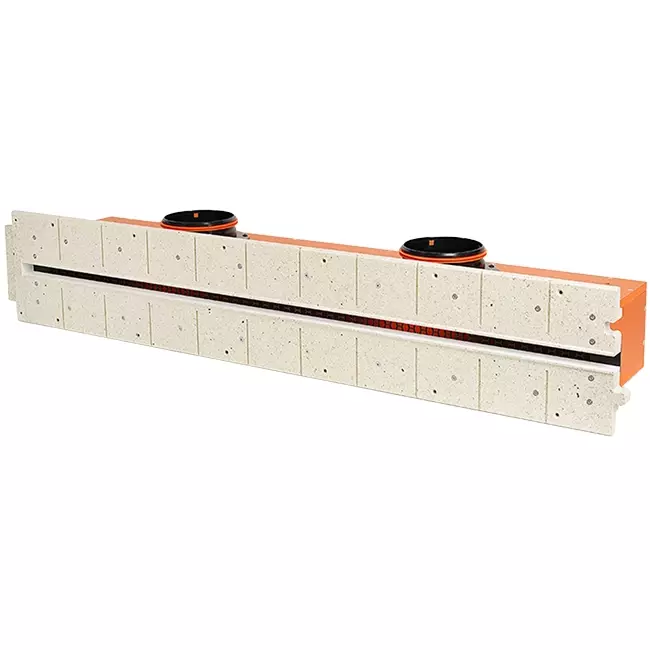

The Ergovent recessible frameless linear grille of 1050 mm is a linear ventilation grille specially designed for installation in plasterboard ceilings and walls. The Lineo Pro Condi creates a minimalist, subtle slot in the surface, making it barely noticeable and seamlessly integrating into the interior design. The ventilation grille is suitable for connection to flexible plastic ducts with a diameter of 125 mm, and can also be used in combination with air conditioning systems. Inside the box, additional K-flex anti-condensation tape is used to prevent the formation of water droplets.

Installation of the ventilation grille

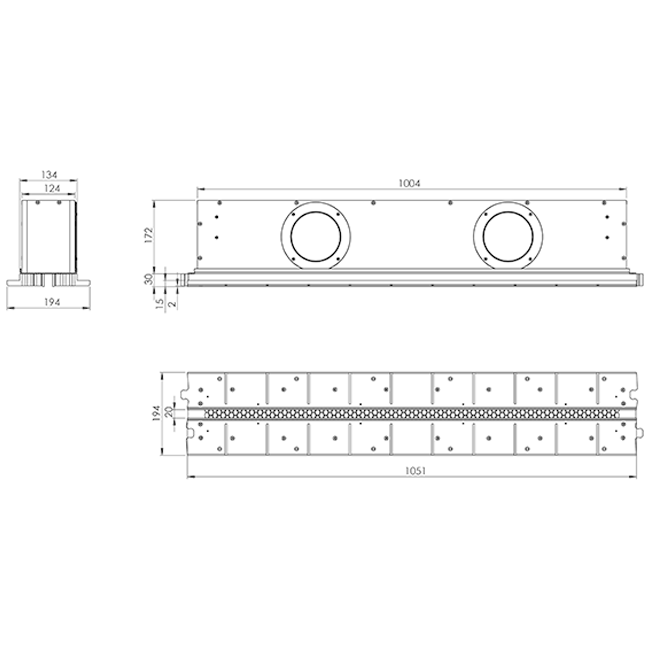

The Lineo Pro Condi is mounted on plasterboard profiles and, like the Lineo Pro Puzzle, can be linked to form longer, continuous ventilation slots. The puzzle system effortlessly clicks the segments together, ensuring a neat, invisible connection. For proper adhesion, it is important to first clean the surface and any joints from dust. To prevent cracking in the finish, it is recommended to apply a thin layer of glass fibre mesh over the visible surface of the grille. Afterwards, a primer can be applied to the areas to be plastered. After surface treatment, fastening the grille and connecting the duct or air conditioning system, the entire assembly is finished and repainted in the same colour as the ceiling for a clean, seamless appearance. The Lineo Pro Condi has a fixed length of 1050 mm and can be extended by connecting multiple Lineo Pro Puzzle/Condi grilles or corner pieces. Duct connections or covers are mounted at a 45-degree angle on the rear side.

Standard, profile or modular?

• Lineo Pro Single (standard): Standalone model for a single, independent connection to a flexible ventilation duct, which must be installed directly on the concrete ceiling before the plasterboard ceiling is mounted.
• Lineo Pro Profile (profile): Standalone model for a single, independent connection to a flexible ventilation duct, which can be placed directly on the plaster frame for faster installation.
• Lineo Pro Puzzle (modular): Modular model for connection with other recessible linear grilles or corner pieces, which can be placed directly on the plaster frame for faster installation.
