Ergovent Frameless Insertable Linear Grille, 1050 mm, with 125 mm Connection Diameter - Air Conditioning - 2 Slots

Ergovent plasterable frameless linear grille 1050 mm with connection diameter 125 mm - air conditioning - 2 slots

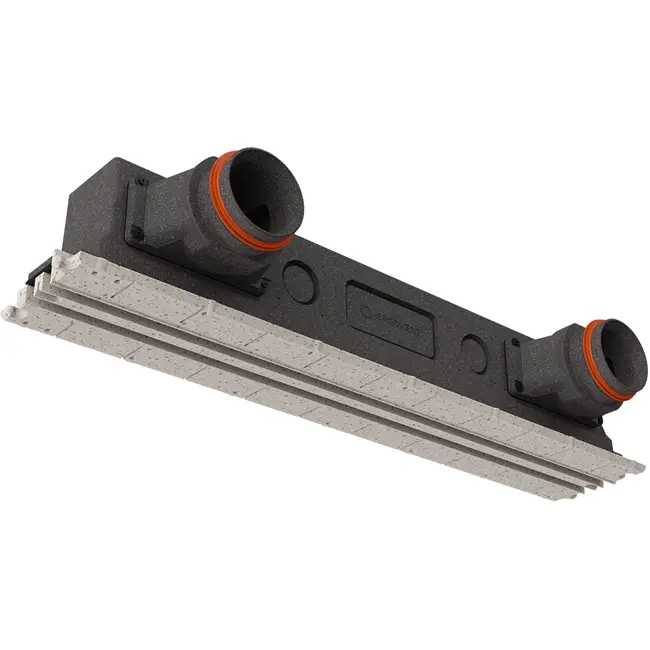

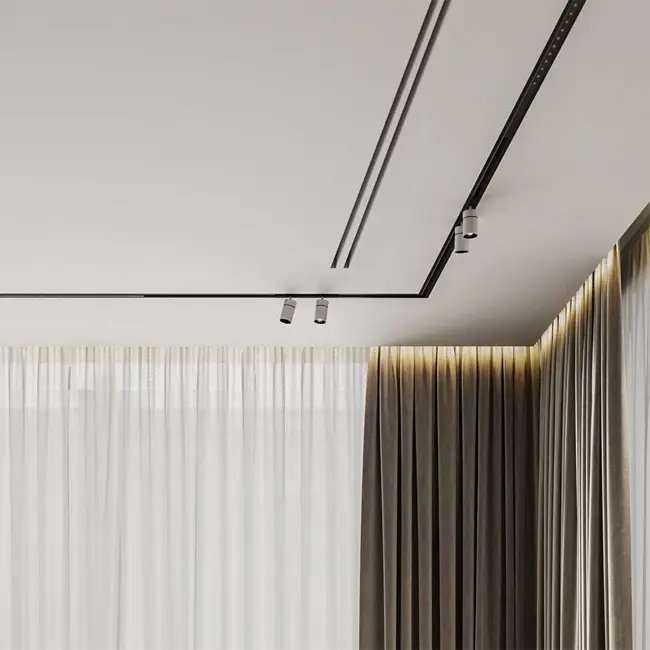

The Ergovent plasterable frameless linear grille of 1050 mm is a linear ventilation grille, specially designed for installation in plasterboard ceilings and walls. The Lineo Pro Condi creates minimalist, subtle slots in the surface, making it barely noticeable and seamlessly integrating into the interior design. The ventilation grille is suitable for connection to flexible plastic ducts with a diameter of 125 mm and can also be used in combination with air conditioning systems. Inside the box, extra K-flex anti-condensation tape is used to prevent the formation of water droplets. The bottom plate with two slots is made of PVC and the plenum is made of EPP.

Installation of the ventilation grille

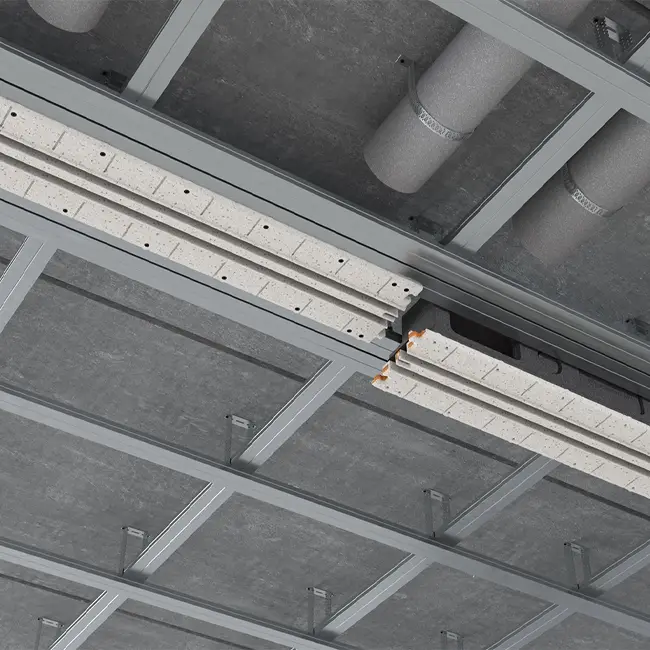

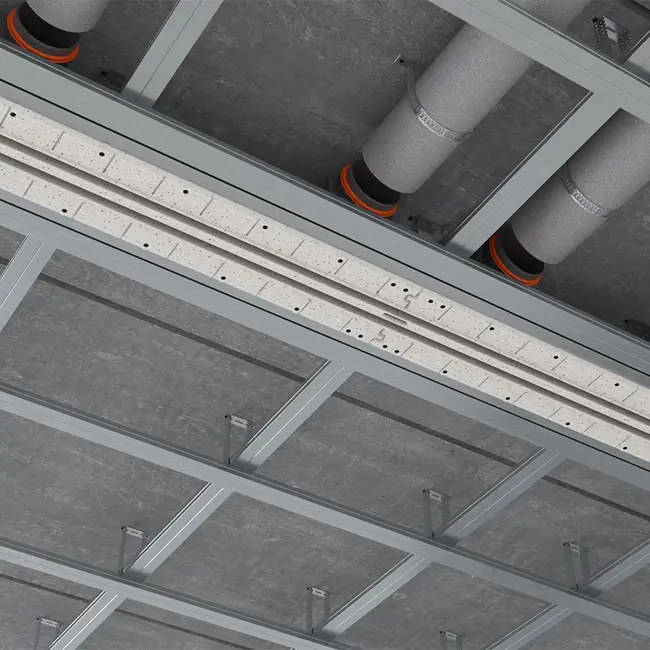

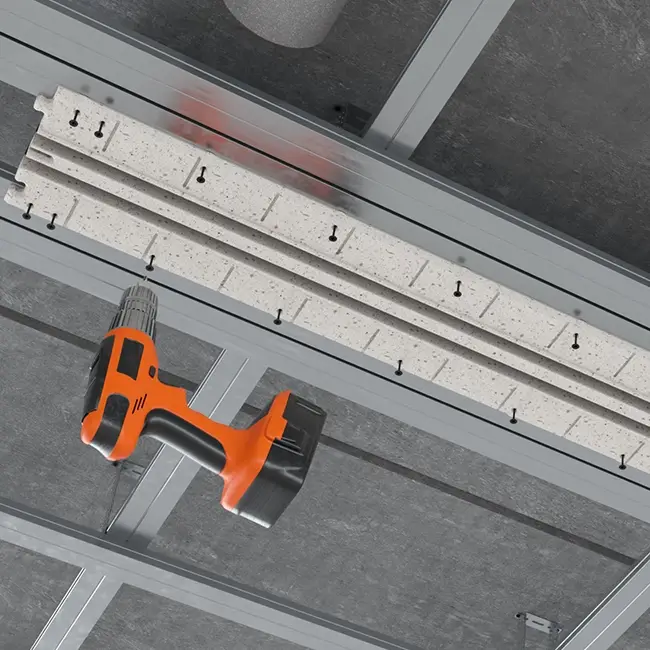

The Lineo Pro Condi is mounted on plasterboard profiles and, just like the Lineo Pro Puzzle, can be connected into longer, continuous ventilation slots. The puzzle system clicks the segments effortlessly together and ensures a neat, invisible connection. For proper adhesion, it is important first to clean the surface and any joints from dust. To prevent cracking in the finish, it is recommended to apply a thin layer of fiberglass mesh over the visible surface of the grille. Afterwards, a primer can be applied to the areas that will be plastered. After the surface treatment, securing the grille and connecting the duct or air conditioning system, the entire unit is finished and repainted in the same colour as the ceiling for a smooth, seamless appearance. The Lineo Pro Condi has a fixed length of 1050 mm and can be extended by connecting multiple Lineo Pro Puzzle/Condi grilles, connectors, or corner pieces. Duct connections or covers are attached at a 45-degree angle to the rear side.

Standard, profile or modular?

• Lineo Pro Single (standard): Standalone model for a single, independent connection to a flexible ventilation duct, to be mounted directly onto the concrete ceiling before the plaster ceiling installation.
• Lineo Pro Profile (profile): Standalone model for a single, independent connection to a flexible ventilation duct, which can be placed directly on the plaster frame for quicker installation.
• Lineo Pro Puzzle (modular): Modular model for connection with other plasterable linear grilles, connectors, or corner pieces, which can be placed directly on the plaster frame for faster assembly.
• Lineo Pro Condi (modular): Modular model for connection with other plasterable linear grilles, connectors, or corner pieces, designed for use in combination with air conditioning systems.
