Good points

For supply
Galvanized steel
360° air distribution
5 positions

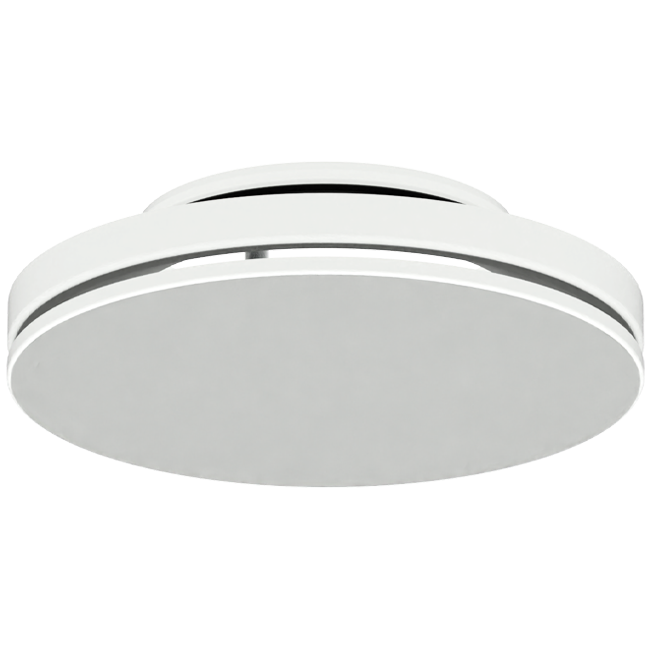

Steel Ceiling Diffuser with Round Discharge – 125 mm – RAL 9016

The Econox ceiling diffuser with round discharge is specifically designed for uniform 360° air distribution in commercial indoor spaces such as offices, schools, retail stores, and hotels. The diffuser features a pressed steel front plate with environmentally friendly sound-absorbing insulation and a steel rear section with a round air connection equipped with an EPDM seal. The airflow and throw can be manually adjusted by shifting the front plate to one of five positions.

Practical Information

The ceiling diffuser is made from galvanized steel and is standard powder-coated in RAL 9010, 9016, or 9005. The air connection has a diameter of 125 mm. The diffuser offers an aesthetically pleasing, minimalist finish and is suitable for air supply and ceiling installation.

Installation and Applications

Thanks to the adjustable front plate, the air direction can be easily modified without the need for additional tools. The round 125 mm diameter connection on the rear can be linked to an air duct or a connection box above the ceiling. Optionally, you can add the Econox acoustically insulated plenum between the diffuser and the duct. This ensures uniform air distribution across the diffuser, simplifies installation above the ceiling, and helps reduce noise transmission and unwanted airflow.

Brand	Econox
Category	Round ceiling diffusers adjustable
GTIN	8719544330796
Manufacturer's item number	79000371
Article number	79000371

Specifications

Category code	59
Material	Steel
Shape	Round

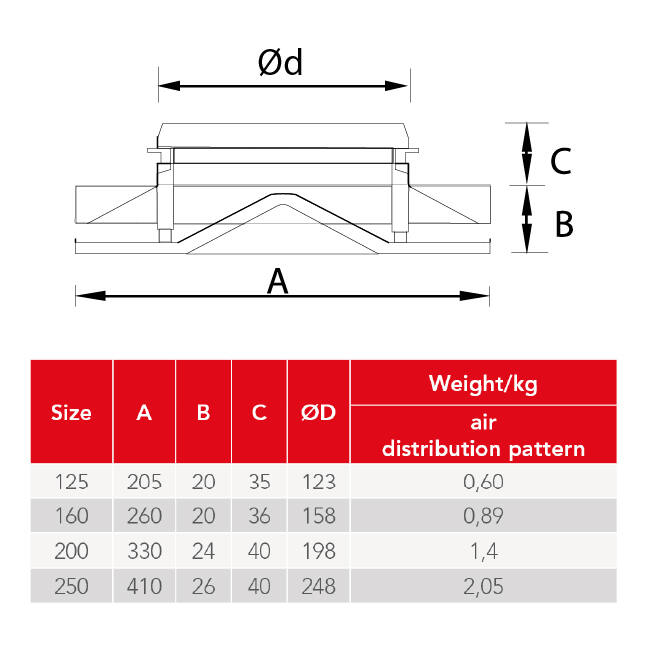

Nominal duct diameter connection	125 mm
Front diameter	205 mm
Front width	205 mm
Front length	205 mm
Built-in depth	55 mm
Ring for building in	Rubber ring
Air supply valve	Yes
Air extraction valve	No
With volume control	No
Colour	White
RAL-number	9016
Capacity	450 m³/h
Self-controlling	No
2-position setting	Yes
Controls, 2 positions	Manually operated
High-inducing	No
With filter	No
Outlet pattern limited	No
