Good points

For supply
Galvanized steel
360° air distribution
5 positions

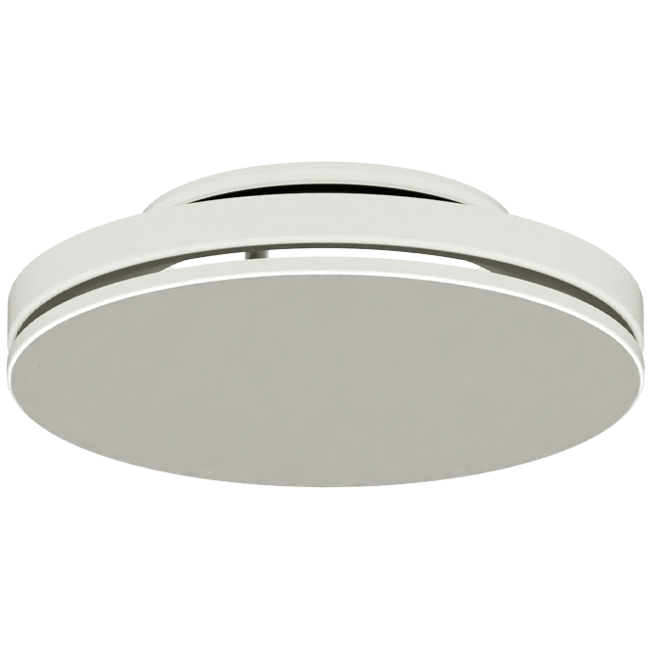

Steel Ceiling Diffuser with Round Outlet – 125 mm – RAL 9010

The Econox ceiling diffuser with a round outlet is specially designed for even 360° air distribution in commercial interiors such as offices, schools, retail stores, and hotels. The diffuser features a pressed steel front plate with eco-friendly sound-absorbing insulation and a steel rear section with a round air connection equipped with an EPDM seal. The airflow and throw can be manually adjusted by moving the front plate into five different positions.

Practical Information

The ceiling diffuser is manufactured from galvanized steel and is standard powder coated in RAL 9010, 9016, or 9005. The air connection has a diameter of 125 mm. The diffuser offers an aesthetic, minimalist finish and is suitable for air supply and ceiling mounting.

Installation and Applications

Thanks to the adjustable front plate, the airflow direction can be easily modified without additional tools. The round 125 mm diameter connection at the rear can be connected to an air duct or a connection box above the ceiling. Optionally, you can add the Econox acoustically insulated plenum between the diffuser and the duct. This ensures even air distribution across the diffuser, simplifies installation above the ceiling, and helps reduce noise transmission and unwanted airflows.

Brand	Econox
Category	Round ceiling diffusers adjustable
GTIN	8719544330727
Manufacturer's item number	79000364
Article number	79000364

Specifications

Category code	59
Material	Steel
Shape	Round
Nominal duct diameter connection	125 mm
Front diameter	205 mm
Front width	205 mm
Front length	205 mm
Built-in depth	55 mm
Ring for building in	Rubber ring
Air supply valve	Yes
Air extraction valve	No
With volume control	No
Colour	White
RAL-number	9010
Capacity	450 m³/h
Self-controlling	No
2-position setting	Yes
Controls, 2 positions	Manually operated
High-inducing	No
With filter	No
Outlet pattern limited	No
