Ceiling diffuser steel round air outlet for supply and exhaust 595x595 mm - 200 mm - RAL 9016

Steel Ceiling Diffuser with Round Air Outlet for Supply and Exhaust 595x595 mm – 200 mm – RAL 9016

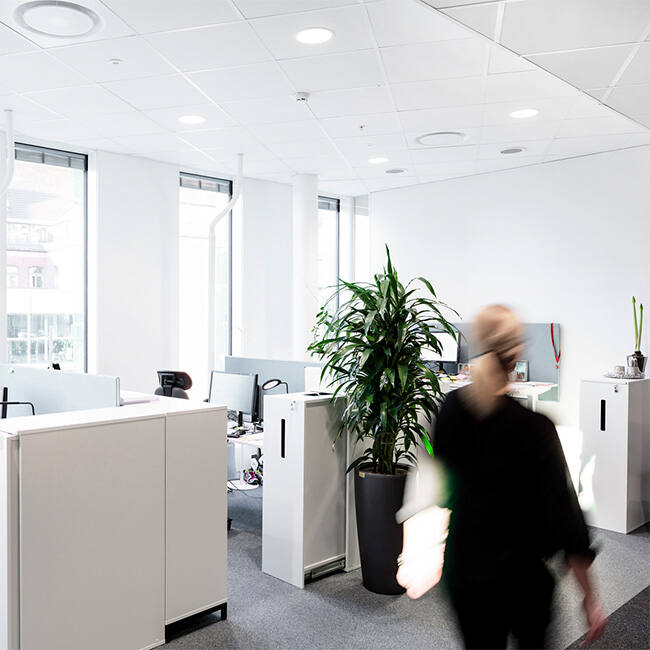

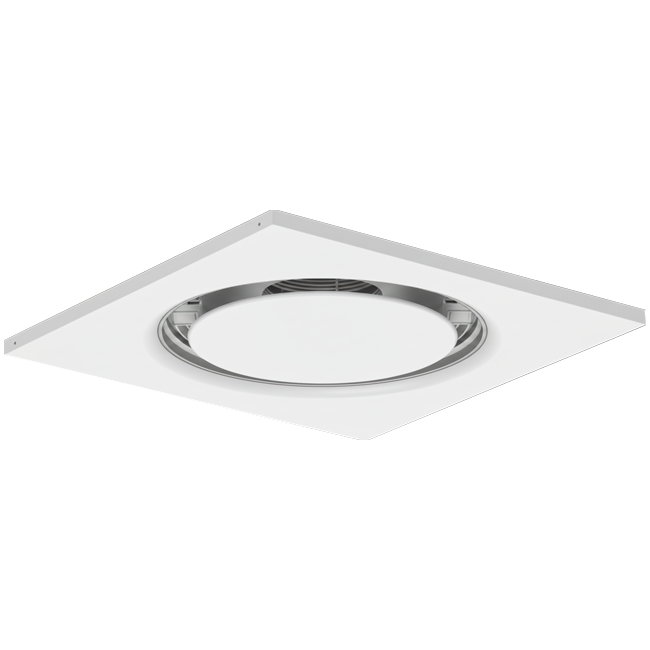

The Econox ceiling diffuser, made from steel, is a square supply and exhaust grille designed for installation in suspended ceilings. Thanks to the round air outlet with an aerodynamically shaped rear, the grille ensures an even 360° air distribution through the ceiling (Coanda effect), preventing drafts. This grille is suitable for offices, schools, healthcare facilities, and retail spaces, and can handle temperature differences up to 12 °C below room temperature without compromising comfort.

Practical Information

The ceiling diffuser is made of galvanized steel and subsequently powder-coated in RAL 9010, 9016, or 9005. The air connection is equipped with an EPDM gasket for an airtight installation. The grille can be connected to a round air duct with a diameter of 200 mm.

Installation and Applications

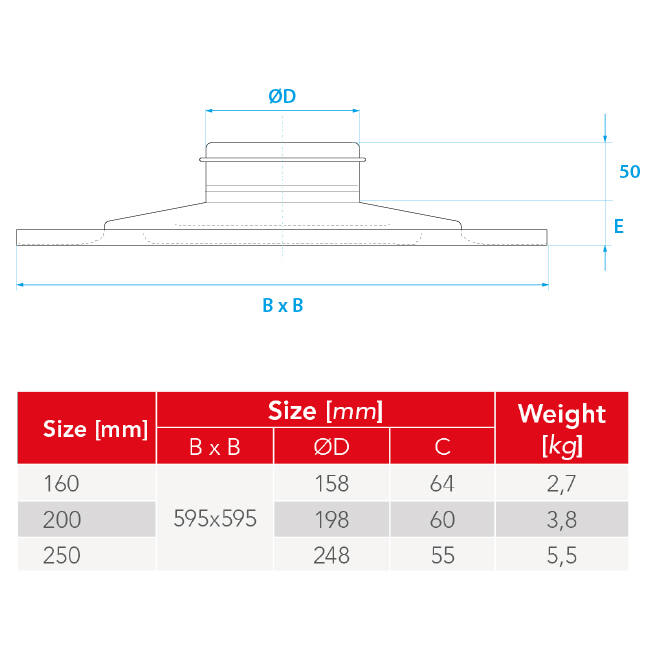

The ceiling diffuser is mounted in a standard 595x595 mm suspended ceiling by simply laying the grille into the T-grid. The round 200 mm diameter connection at the back is connected directly to the air duct or a flexible hose. Additionally, it is possible to connect this ceiling diffuser to the Econox acoustically insulated plenum to achieve even air distribution and effective sound attenuation.
