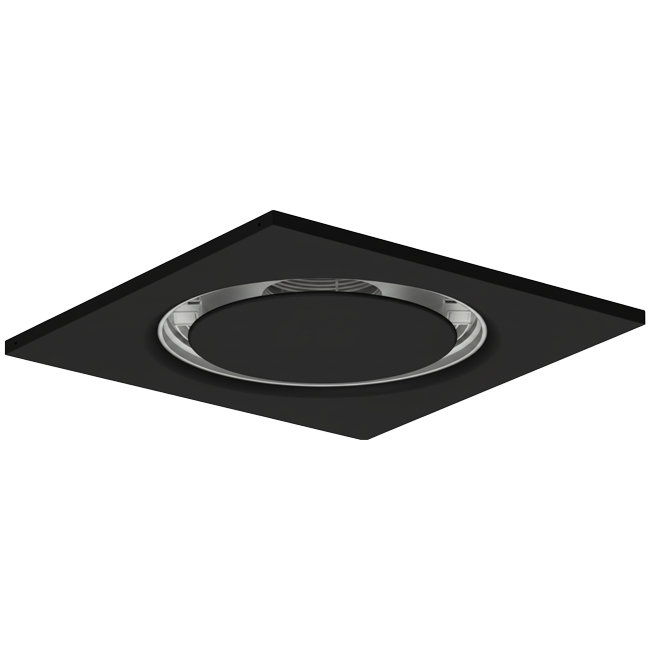

Ceiling diffuser steel round air outlet for supply and exhaust 595x595 mm - 200 mm - RAL 9005

Steel Ceiling Diffuser Round Air Outlet for Supply and Exhaust 595x595 mm – 200 mm – RAL 9005

The Econox ceiling diffuser, made of steel, is a square supply and exhaust grille designed for installation in suspended ceilings. Thanks to the round air outlet with an aerodynamically shaped rear side, the diffuser ensures an even 360° air distribution across the ceiling (Coanda effect), preventing draught formation. The grille is suitable for offices, schools, healthcare facilities, and retail spaces, and can handle temperature differences up to 12 °C below room temperature without compromising comfort.

Technical Information

The ceiling diffuser is manufactured from galvanized steel and powder coated in RAL 9010, 9016, or 9005. The air connection is fitted with an EPDM seal to ensure airtight installation. The diffuser can be connected to a round duct with a diameter of 200 mm.

Installation and Applications

The ceiling diffuser is installed in a standard 595x595 mm suspended ceiling by simply placing the grille into the T-grid. The round 200 mm diameter connection at the rear is connected directly to the air duct or a flexible hose. Additionally, it can be connected to the Econox acoustically insulated plenum to achieve uniform air distribution and effective sound attenuation.
