Brink WTW Ease 200 4/0 right - 200 m³/h 1921401

Good points

Brand: Brink

Up to 200 m³/h

87.0% temperature efficiency

Right

Brink WTW Ease 200 4/0 Right - 200 m³/h

The Brink WTW Ease 200 4/0 Right - 200 m³/h is a compact and energy-efficient balanced ventilation unit with heat recovery, specifically designed for modern homes, renovations, and small-scale projects. This "right" version offers a reliable solution for efficient ventilation with high thermal performance and easy maintenance.

Benefits and Features

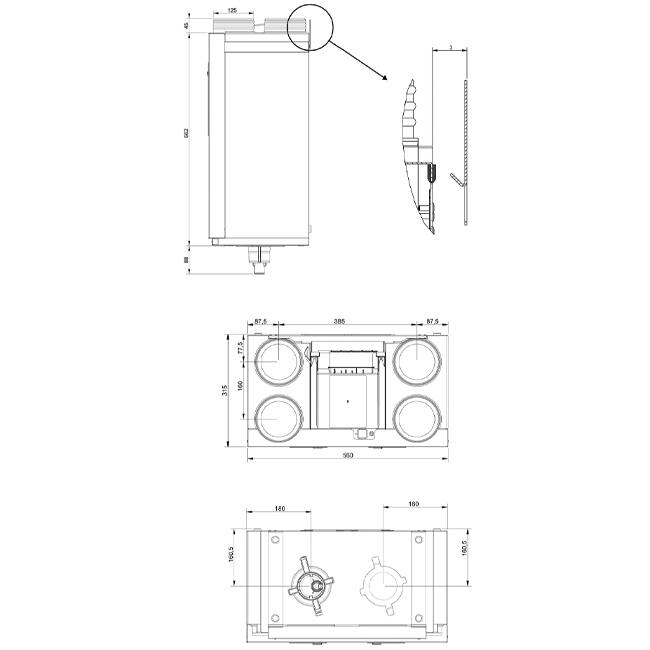

Compact size (560 × 660 × 315 mm): With a depth of only 31.5 cm, this unit fits effortlessly into small spaces such as a storage closet or kitchen cabinet – ideal for apartments and modular construction.

High-efficiency plate heat exchanger (87 %): Ensures very efficient use of recovered heat.

Maximum airflow 200 m³/h: With constant volume control via EC motors for perfectly balanced ventilation.

Integrated bypass: Provides summer comfort by bypassing the heat exchanger at higher outdoor temperatures.

Right-side version (4/0): All air ducts (home and outdoor air) are located at the top, specially designed for wall mounting with duct connections on the right.

Expandable with sensors and smart control: Supports CO₂, RH, VOC via 0–10 V, and is compatible with Brink Home/Air Control modules for app control and monitoring.

Applications and Use

The Brink Ease 200 WTW 4/0 Right is ideal for use in modern single-family homes, renovation houses, apartments, and small-scale constructions. Thanks to its compact dimensions and easy wall mounting capability, the unit can be easily integrated into technical rooms, kitchens, or storage closets. The high efficiency, constant volume control, and option for sensor guidance make the device suitable for comfortable and energy-efficient home ventilation.

Why Choose This Product

The Brink Ease 200 WTW 4/0 Right offers the perfect balance between compactness, efficiency, and functionality. With a high efficiency of 87 %, constant volume control via EC motors, integrated bypass, and smart expansion options (sensors, app control), this is a future-proof and reliable choice for ventilation in well-insulated homes or renovation projects.

Brand	Brink Climate Systems
Category	All MVHR units
GTIN	8718391273287
Manufacturer's item number	433101
Article number	1921401

Category code	259
Heat recovery by	Other
Housing material	Steel
Material heat exchanger	Plastic
Suitable for wall mounting	Yes
Suitable for ceiling mounting	No
Suitable for floor mounting	No
Suitable for mounting in suspended ceiling	No
Suitable for mounting in an attic	Yes
Left/right orientation reversible	No
Max. volume flow according to 1254/2014/EU	200 m³/h
Sound power level according to 1254/2014/EU	54 dB(A)
Sound pressure level	45 dB(A)
Type of motor	Electronically commutated (EC)
Voltage	230 V
Frequency	50 Hz
Number of phases	1
Fuse size of the device	6 A
With thermal overload protection	Yes
Electrical connection	Terminals
Energy efficiency class according to 1253/2014/EU	A
Type of switch	Other
With digital display	No
With wired control unit	Yes
Suitable for wired control unit	Yes
With wireless remote control	No
Suitable for wireless remote control	Yes
Supporting protocol for Modbus	Yes
Operation by app	No
With zone controller	No
Suitable for zone controller	Yes
With heating element	No
With volatile organic compound (VOC) sensor	No
Suitable for extra VOC sensor	Yes
With external humidity (RH) sensor	No
With internal humidity (RH) sensor	No
Suitable for (extra) humidity (RH) sensor	Yes
With internal carbon dioxide (CO2) sensor	No
Suitable for (extra) carbon dioxide (CO2) sensor	Yes
Suitable for central heating boiler connection	Yes
With bypass	Yes
With constant pressure control	No
With constant volume flow control	Yes
Type of frost protection	Heating element
Nominal duct diameter (min)	125 mm
Nominal duct diameter (max)	125 mm
Connections outdoor air side	Duct end
Connections residential side	Duct end
Residential connection, underside	No
Residential connection, left side	No
Residential connection, right side	No
Residential connection, top	Yes
Roof connection, side	No
Roof connection, top	Yes
Supply filter according to ISO 16890-1:2016	ISO Coarse
Efficiency supply filter according to ISO 16890-1:2016	60 %
Exhaust filter according to ISO 16890-1:2016	ISO Coarse
Efficiency exhaust filter according to ISO 16890-1:2016	60 %
Height	662 mm
Width	560 mm
Depth	315 mm
Degree of protection (IP)	IP40
Weight	17 kg
Energy label	A+
Connection type	connection right
With enthalpy exchanger	No
Plug type	Euro plug
