Good points
- 200 m³/h
- Left applicable
- Energy label A
- 100% bypass
Brink WTW Ease 200 4/0 Enthalpy Left - 200 m³/h
The Brink WTW Ease 200 4/0 Enthalpy Left - 200 m³/h is a compact and energy-efficient balanced ventilation unit featuring an enthalpy heat exchanger for both heat and moisture recovery. This “left” version is specifically designed for modern homes, renovations, and compact technical spaces. Thanks to the moisture-recovering membrane, a more comfortable indoor climate is achieved, especially during winter months. The unit delivers high thermal performance with minimal installation and maintenance requirements.
Benefits and Features

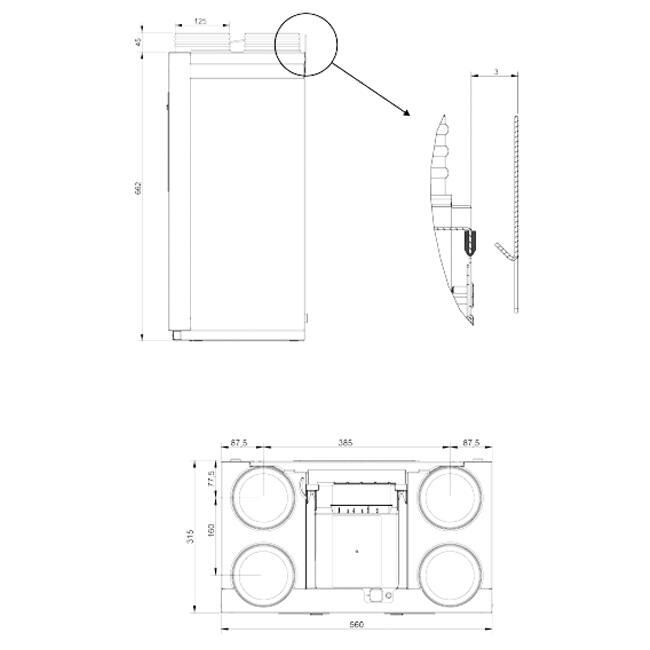

- Compact size (560 × 660 × 315 mm): With a depth of only 31.5 cm, this unit easily fits into small spaces such as storage cupboards or kitchen cabinets – ideal for apartments and modular construction.
- Enthalpy heat exchanger (heat and moisture recovery): Enhances indoor air quality by recovering humidity as well, perfect for well-insulated homes during colder seasons.
- Maximum airflow 200 m³/h: Featuring constant volume control via EC motors for perfectly balanced ventilation.
- Integrated bypass: Ensures summer comfort by bypassing the heat exchanger when outdoor temperatures are higher.
- Left-side configuration (4/0): All air ducts (supply and extract air) are located on the top side, especially suited for wall mounting with duct connections on the left.
- Expandable with sensors and smart control: Support for CO₂, RH, VOC via 0–10 V, and compatible with Brink Home/Air Control modules for app control and monitoring.
Applications and Usage
The Brink Ease 200 WTW 4/0 Enthalpy Left is ideal for use in modern detached homes, apartments, renovations, or passive houses. Thanks to the enthalpy heat exchanger, the indoor climate remains comfortable without drying out. The compact dimensions make installation straightforward, even in small technical spaces or above ceilings.
Practical Information
The unit has a nominal duct diameter of 125 mm and weighs approximately 17 kg. It operates on single-phase 230 V/50 Hz. All connections are located on the top side (4/0 left).
Why Choose This Product
The Brink Ease 200 WTW 4/0 Enthalpy Left is the ideal choice for those wanting not only heat recovery but also moisture retention for a comfortable and healthy indoor climate. With its integrated enthalpy exchanger, constant volume control, expandable sensors, and optional app control, this is an innovative, sustainable, and reliable ventilation solution.
| Brand | Brink Climate Systems |
| Category | All MVHR units |
| GTIN | 8718391283118 |
| Manufacturer's item number | 433108 |
| Article number | 1921403 |
Specifications
| Category code | 259 |
| Heat recovery by | Cross-counter-flow unit |
| Housing material | Steel |
| Material heat exchanger | Plastic |
| Suitable for wall mounting | Yes |
| Suitable for ceiling mounting | No |
| Suitable for floor mounting | No |
| Suitable for mounting in suspended ceiling | No |
| Suitable for mounting in an attic | Yes |
| Left/right orientation reversible | No |
| Max. volume flow according to 1254/2014/EU | 200 m³/h |
| Sound power level according to 1254/2014/EU | 54 dB(A) |
| Sound pressure level | 45 dB(A) |
| Type of motor | Electronically commutated (EC) |
| Voltage | 230 V |
| Frequency | 50 Hz |
| Number of phases | 1 |
| Fuse size of the device | 6 A |
| With thermal overload protection | Yes |
| Electrical connection | Terminals |
| Energy efficiency class according to 1253/2014/EU | A |
| Type of switch | Other |
| With digital display | No |
| With wired control unit | Yes |
| Suitable for wired control unit | Yes |
| With wireless remote control | No |
| Suitable for wireless remote control | Yes |
| Supporting protocol for Modbus | Yes |
| Operation by app | No |
| With zone controller | No |
| Suitable for zone controller | Yes |
| With heating element | Yes |
| With volatile organic compound (VOC) sensor | No |
| Suitable for extra VOC sensor | Yes |
| With external humidity (RH) sensor | No |
| With internal humidity (RH) sensor | No |
| Suitable for (extra) humidity (RH) sensor | Yes |
| With internal carbon dioxide (CO2) sensor | No |
| Suitable for (extra) carbon dioxide (CO2) sensor | Yes |
| Suitable for central heating boiler connection | Yes |
| With bypass | Yes |
| With constant pressure control | No |
| With constant volume flow control | Yes |
| Type of frost protection | Heating element |
| Nominal duct diameter (min) | 125 mm |
| Nominal duct diameter (max) | 125 mm |
| Connections outdoor air side | Duct end |
| Connections residential side | Duct end |
| Residential connection, underside | No |
| Residential connection, left side | No |
| Residential connection, right side | No |
| Residential connection, top | Yes |
| Roof connection, side | No |
| Roof connection, top | Yes |
| Supply filter according to ISO 16890-1:2016 | ISO Coarse |
| Efficiency supply filter according to ISO 16890-1:2016 | 60 % |
| Exhaust filter according to ISO 16890-1:2016 | ISO Coarse |
| Efficiency exhaust filter according to ISO 16890-1:2016 | 60 % |
| Height | 662 mm |
| Width | 560 mm |
| Depth | 315 mm |
| Degree of protection (IP) | IP40 |
| Weight | 17 kg |
| Energy label | A |
| Connection type | connections links |
| With enthalpy exchanger | Yes |
| Plug type | Euro plug |
