The Ruck box fan MPC T 630 EC K01 is a powerful and energy-efficient ventilation solution for professional applications where flexibility and high performance are paramount. The fan is equipped with a backward-curved centrifugal impeller and an EC motor that is positioned outside the airflow. This protects the motor from contamination and heat, ensuring a longer lifespan and lower maintenance costs. Thanks to the variable discharge direction, this fan can be easily adapted to different installation situations. The motor is infinitely adjustable via a 0-10V signal, providing optimal control over the air volume.
The MPC T 630 EC K01 features a double-walled and fully insulated housing made of galvanized steel, which provides thermal insulation and sound dampening. The underside is equipped with an integrated drain for condensate and grease, making this fan particularly suitable for use in environments with contaminated or humid air. The fan is designed for continuous operation at medium temperatures up to 120 °C. Thanks to its maintenance-friendly design and flexible air discharge, this fan is widely applicable in various air handling installations.
Ruck Ventilatoren GmbH is a leading German manufacturer with over 25 years of experience in the development of ventilation technology. With more than 300 employees, Ruck works daily on sustainable and innovative ventilation solutions. All products comply with current ERP guidelines and are designed for maximum energy efficiency and reliability.
| Brand | Ruck ventilatoren GmbH |
| Category | Heat-resistant box fans |
| GTIN | 4061199044301 |
| Manufacturer's item number | MPC T 630 EC I K 01 |
| Article number | 65172156 |
| Category code | 35 |

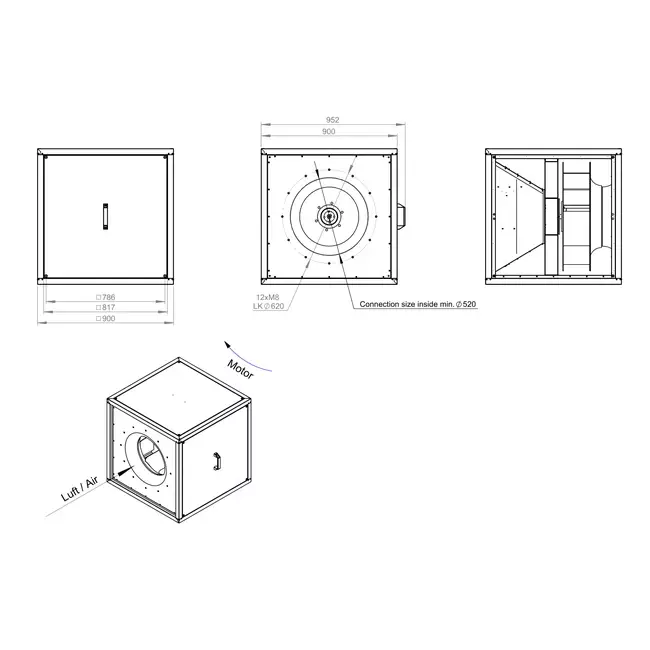

| Length | 900 mm |
| Connection | Insert end |
| Width | 900 mm |
| Height | 900 mm |
| Housing material | Steel |
| Electrical connection | Terminals |
| Degree of protection (IP) | IP55 |
| Connection voltage | 400 V |
| With thermal overload protection | Yes |
| Indirect drive | No |
| Air volume, unloaded | 19195 m³/h |
| Power consumption | 4613 kW |
| Suitable for frequency control | No |
| Suitable for transformer control | No |
| Suitable for electronic control | Yes |
| Max. air temperature | 50 °C |
| Suitable for low-current control | Yes |
| Direct-current motor | Yes |
| 2-speed motor | No |
| Duct diameter, suction | 630 mm |
| Duct diameter, exhaust | 630 mm |
