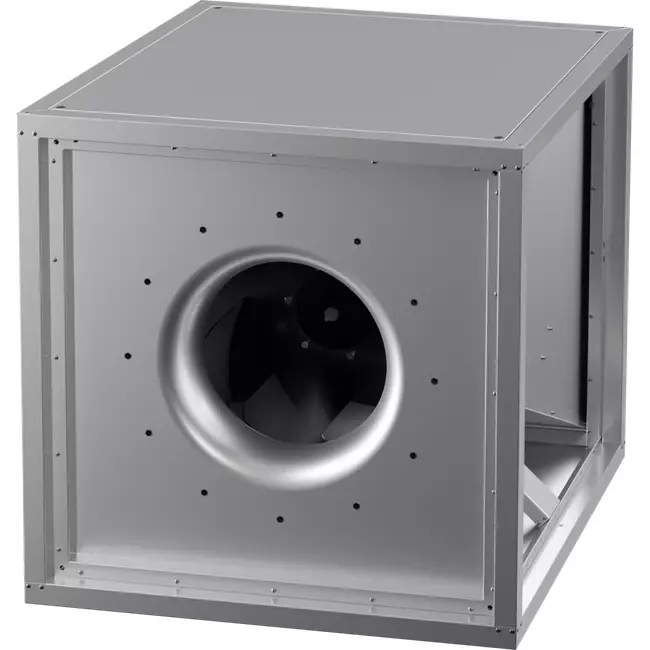

The Ruck box fan MPC T 560 EC K01 is a powerful and energy-efficient fan, specially designed for professional applications where reliability and flexibility are essential. The fan features a backward-curved centrifugal impeller and an EC motor that is positioned outside the airflow. This protects the motor from contaminated or warm air, ensuring a longer lifespan and reduced maintenance needs. The discharge direction is adjustable, allowing the fan to be easily adapted to the specific requirements of your installation. The motor is continuously adjustable via a 0-10V signal, enabling precise control of the air volume.
The MPC T 560 EC K01 is equipped with a double-walled and fully insulated housing made of galvanized steel, which provides sound dampening and thermal insulation. The underside features an integrated drain for condensate and grease, making this fan highly suitable for environments with increased humidity or contamination. The fan is designed for continuous operation at medium temperatures up to 120 °C. Thanks to its thoughtful design and flexible mounting options, this fan can be easily integrated into various ventilation systems.
Ruck Ventilatoren GmbH is a leading German manufacturer with over 25 years of experience in developing innovative ventilation technology. With more than 300 employees, the company works daily on sustainable solutions that meet the highest standards in energy consumption, safety, and performance. The MPC T 560 EC K01 fully complies with current ERP guidelines.
| Brand | Ruck ventilatoren GmbH |
| Category | Heat-resistant box fans |
| GTIN | 4061199044189 |
| Manufacturer's item number | MPC T 560 EC I K 01 |
| Article number | 65172058 |
| Category code | 35 |
| Length | 900 mm |
| Connection | Insert end |
| Width | 900 mm |
| Height | 900 mm |
| Housing material | Steel |
| Electrical connection | Terminals |
| Degree of protection (IP) | IP55 |
| Connection voltage | 400 V |
| With thermal overload protection | Yes |
| Indirect drive | No |
| Air volume, unloaded | 13590 m³/h |
| Power consumption | 2474 kW |
| Suitable for frequency control | No |
| Suitable for transformer control | No |
| Suitable for electronic control | Yes |
| Max. air temperature | 40 °C |
| Suitable for low-current control | Yes |
| Direct-current motor | Yes |
| 2-speed motor | No |
| Duct diameter, suction | 630 mm |
| Duct diameter, exhaust | 630 mm |
