Good points

Very quiet
5 liters per hour
With alarm

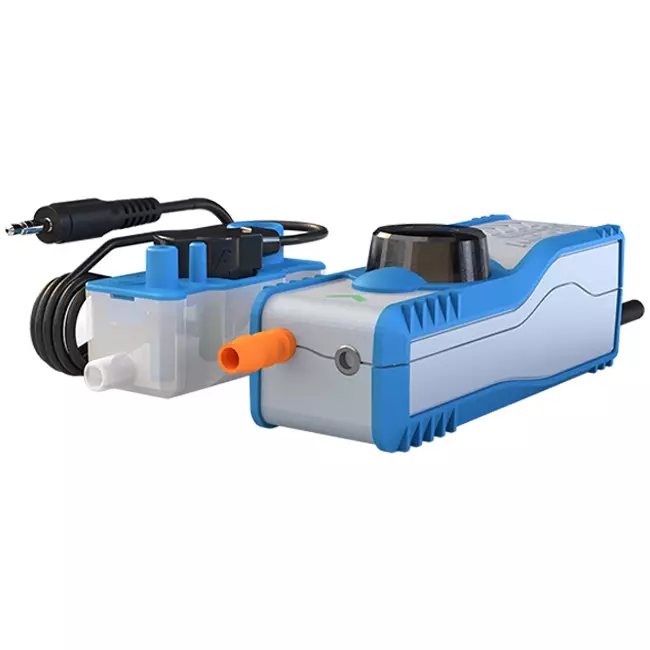

Bluediamond Microblue Pump with Reservoir + HLA Alarm

The Bluediamond Microblue pump with reservoir and alarm is a high-quality solution for condensate removal in HVAC systems. This compact pump utilises advanced Rotary Diaphragm technology and condensate detection technology to deliver optimal performance. Thanks to its self-priming feature and dry-run capability, the Microblue can be installed in any orientation up to 5 metres from the air conditioning unit.

Features:

Capacity: 5 litres per hour
Maximum head height: 5 metres
Maximum suction height: 2 metres
Alarm: Equipped with a High Level Alarm (HLA) for added safety
Installation: Flexible installation options with a compact, vibration-free design
Warranty: 3 years

This Microblue pump is ideal for both discreet and visible installations, thanks to the anti-vibration design and modular power supply which allows for quick installation. The reservoir with alarm provides a reliable solution for managing condensate, minimising downtime and maintenance.

For installers and technical companies, the Bluediamond Microblue pump with reservoir and alarm is a reliable and efficient choice for condensate management in HVAC systems.

Brand	Bluediamond
Category	Condensate water pump Bluediamond
GTIN	5060194291702
Manufacturer's item number	BLD-X86-001
Article number	81001071

Specifications

Category code	506
Model	With sensor
Material pump casing	Plastic
Max. static height	5 m
Max. discharge flow	5 l/h

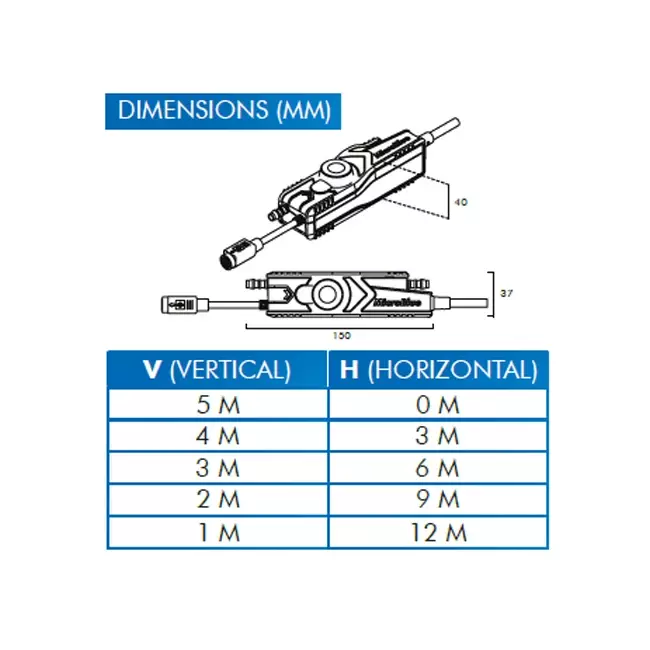

Width	40 mm
Height	37 mm
Depth	150 mm
Noise emission	17 dB(A)
