Sauermann SI-20Mini Condensate water pump 20 l/h

The Sauermann SI-20 Mini Condensate Pump

The Sauermann SI-20 Mini Condensate Pump is an efficient and reliable solution for removing condensate water from air conditioning systems. This pump is specially designed for use in residential and commercial HVAC installations and offers a maximum flow capacity of 20 liters per hour.

Features

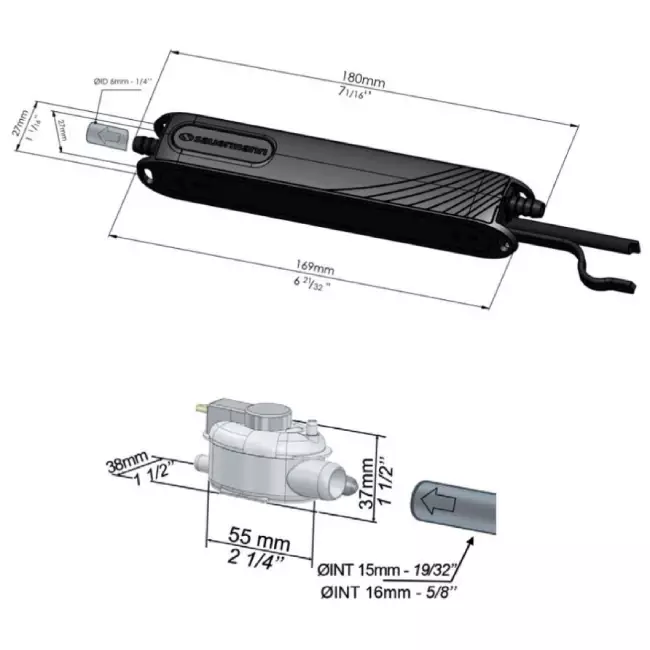

• Compact design: With a slim housing of only 27 x 27 mm, the SI-20 easily fits into various air conditioning systems and can be installed discreetly inside the unit or along the piping.
• Efficiency: The patented piston pump technology ensures a high degree of energy efficiency and is designed to effectively remove condensate, even from systems with a capacity of up to 20 kW.
• Quiet: The SI-20 operates at a sound level of only 19 dBA, making it one of the quietest pumps in its class. The integrated rubber dampers further reduce vibration and noise, ensuring quiet operation.
• Reliability: Equipped with a pre-installed Drain Safe Device, the SI-20 offers reliable performance in various environments, including those with small particles in the condensate.
• Installation: The set comes complete with all necessary accessories, including a detection unit, PVC hoses, mounting brackets, and cables. This makes installation quick and easy, even in the most challenging locations.

Technical Specifications

• Maximum flow capacity: 20 l/h
• Maximum discharge head: 10 m
• Maximum pressure: 14 m
• Power supply: 230 V ~ 50/60 Hz, 14 W
• Insulation class: Double insulation
• Sound level: 19 dBA
• Protection: IPX2
