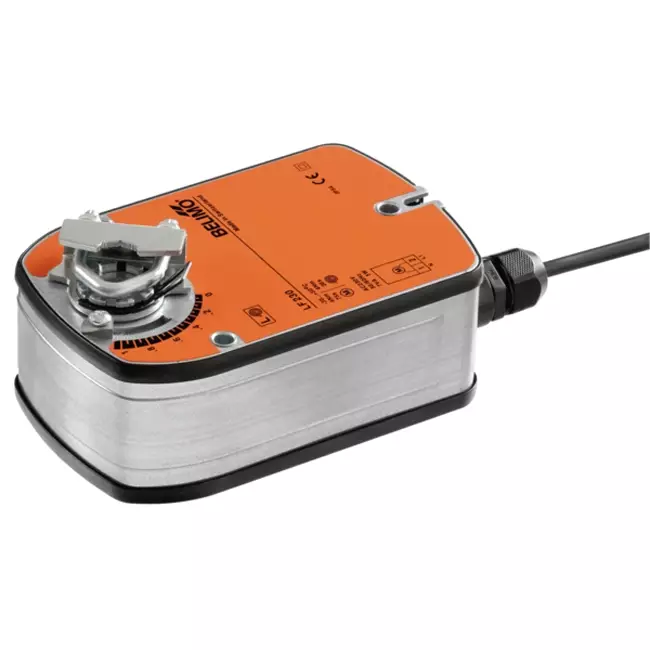

The Belimo LF230 is a rotary valve actuator with spring return designed for open/close control of air damper sections up to approximately 0.8 m² in technical building installations. The actuator operates on an open/close signal: when power is present, it moves to the working position, tensioning the internal return springs. In the event of a power failure, the valve automatically and independently returns to the safe position, driven by the spring force. This makes the valve actuator suitable for applications requiring a predefined safety position, such as fire or emergency ventilation dampers. The motor achieves a 90° rotation angle in 75 seconds, and the spring return brings the valve back in less than 20 seconds. The standby power consumption is 2 W, and the motor noise level is 50 dB(A). With a torque of 4 Nm, it is suitable for smaller damper constructions in commercial and residential HVAC installations.
The actuator is mounted directly onto the valve shaft using the supplied universal clamp, suitable for shaft diameters from 8 to 16 mm. The shaft must be at least 84 mm long and protrude by at least 20 mm. A supplied anti-rotation device prevents the actuator from turning along with the shaft. The movement direction of both motor and spring return is set by the mounting orientation (L/R). The angle of rotation is mechanically adjustable from 37% to a maximum of 95%. The valve actuator does not have manual override. Electrical connection is via a fixed 1-meter cable with two cores of 0.75 mm², connected directly to the mains supply. The actuator is maintenance-free and suitable for open/close control of smaller air damper sections in ventilation units, fan coil units, air handling units, and emergency ventilation dampers in commercial and residential HVAC installations.

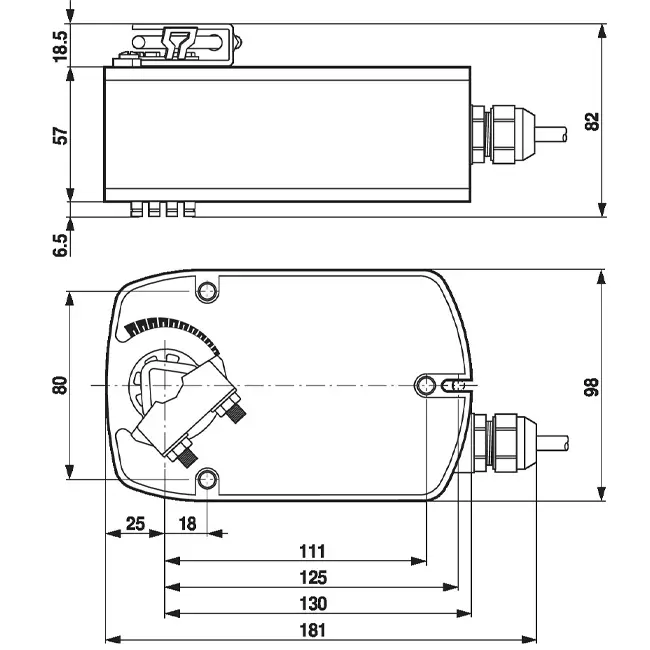

| Brand | Belimo |
| Category | Belimo valve drive |
| GTIN | 7630498103865 |
| Manufacturer's item number | LF230 |
| Article number | 23010062 |
| Category code | 101 |
| Suitable for air accessory | Yes |
| Supply voltage | 230 V AC |
| Control signal | 2-point |
| Energy consumption in operation | 5 W |
| Energy consumption at rest | 3 W |
| Model | Rotating |
| Regulation type on/off | No |
| Regulation type modulating | Yes |
| Regulation type splitrange | No |
| Connection cable length | 1 m |
| Transmission | With cogwheels |
| With direct mount top flange according to ISO 5211 | No |
| Return at zero supply voltage | Yes |
| Deactivated when closed | Yes |
| Automatic stroke recognition | No |
| Adjustable position feedback signal | No |
| Auxiliary contacts | No |
| Position reporting system | Optional |
| Auxiliary contacts optional | Yes |
| End contacts | None |
| Adjustable operating range | No |
| With mechanical setting indicator | Yes |
| Suitable for manual operation | No |
| Operating time | 75 s |
| Torque | 4 Nm |
| Potential free switch contact | No |
| Self-adjusting travel length | No |
| Max. angle of rotation | 95 ° |
| With safety function | Yes |
| Degree of protection (NEMA) | 3 |
| Degree of protection (IP) | IP54 |
| Max. electric power input | 7 VA |
| Ambient temperature (min) | -30 °C |
| Ambient temperature (max) | 50 °C |
| Height | 85 mm |
| Width | 130 mm |
| Depth | 300 mm |
| Explosion-proof | No |
| Housing material | Plastic |
| Suitable for valve | No |
