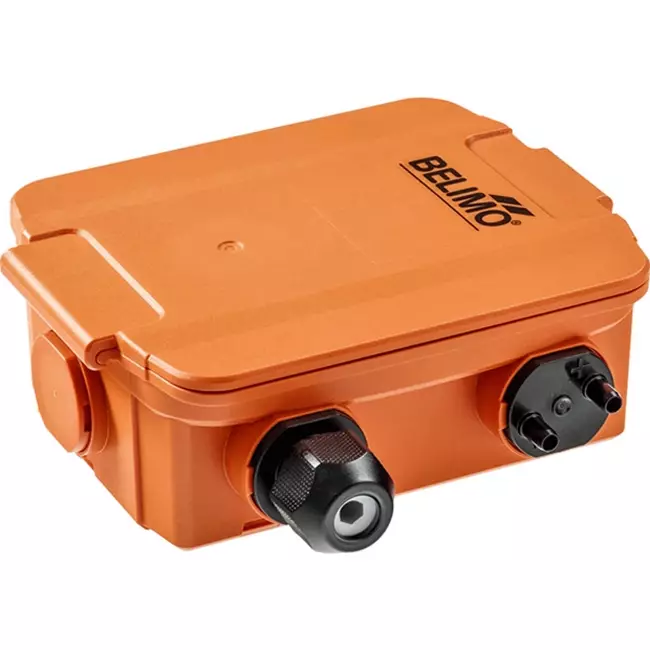

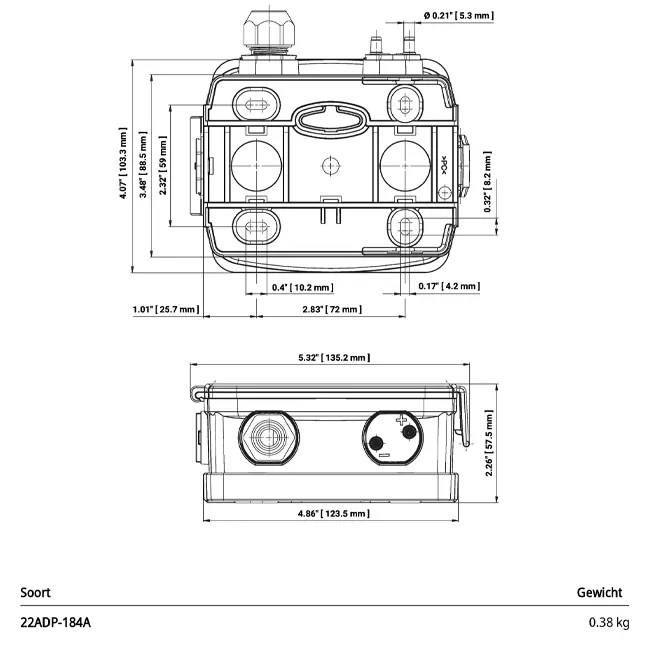

Belimo differential pressure sensor up to 2500 Pa with automatic zero calibration - 22ADP-184A

Belimo Differential Pressure Sensor up to 2500 Pa with Automatic Zero Point Calibration - 22ADP-184A

The Belimo differential pressure sensor is a precise sensor specifically designed for monitoring air and other non-combustible gases in HVAC systems. This version is equipped with automatic zero point calibration (Auto-Zero), which continuously compensates for measurement deviations caused by temperature or environmental influences, minimising maintenance requirements. The sensor combines high measurement accuracy with a robust design. Thanks to the IP65 enclosure, the device is fully dust-tight and splash-proof, ensuring reliable operation even in demanding environments. This makes the differential pressure sensor highly suitable for monitoring air filters, supervising fans, and controlling pressure differentials in, for example, smoke-free escape routes. The sensor is versatile due to eight selectable measurement ranges and multiple output signals.

Benefits and Features

• Automatic zero point calibration (Auto-Zero): Automatically compensates for measurement deviations, ensuring long-term stable and low-maintenance operation.
• Piezo measurement technology: Equipped with a high-quality sensor element that reliably detects even small pressure differences.
• Universal output signals: Supports 0...5 V, 0...10 V, and 4...20 mA for easy integration into any Building Management System (BMS).
• IP65 protection class: The robust, UV-resistant housing is completely dust- and splash-proof, ideal for installation in humid air handling units or technical rooms.
• 8 selectable measurement ranges: Adjustable DIP switches allow simple selection of the appropriate range (between -100 and 2500 Pa), making the sensor suitable for virtually any project.

Installation, Maintenance and Applications

The Belimo differential pressure sensor is designed for mounting on walls, ducts, or directly in air handling units. For accurate differential pressure measurement, the supplied tubing set and Pitot tubes are connected to the sensor’s pressure ports. Electrical connection is made via a plug-in terminal block and a cable gland with strain relief. Thanks to the Auto-Zero function, periodic recalibration is often unnecessary in many applications. The sensor is widely used in commercial buildings and industry for filter monitoring, fan control, and establishing pressure regimes in HVAC installations.

Included Components

The Belimo differential pressure sensor is supplied as standard with:

• Mounting plate (L-housing)
• Pitot tube set, including 2 duct connectors, 2 m of tubing, and mounting screws
