Good points

Piezo measuring element
Measuring range: -100 to 2500 Pa
8 selectable measuring ranges
IP65 protection class

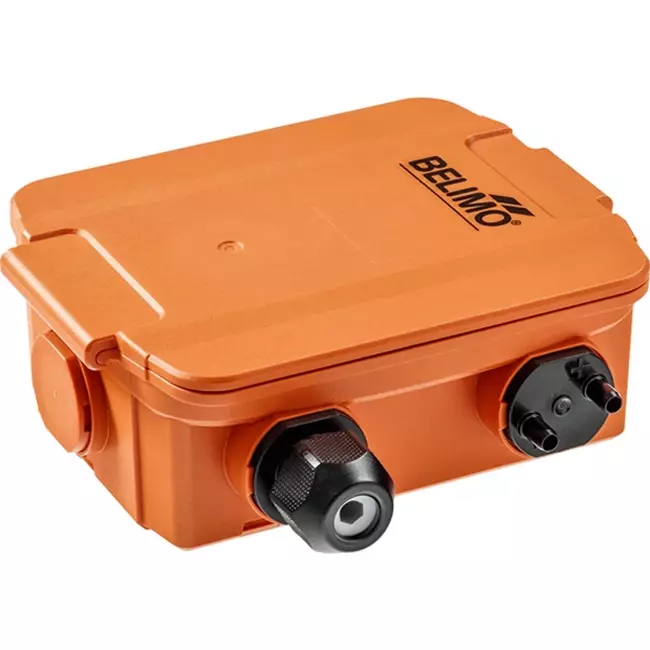

Belimo Differential Pressure Sensor up to 2500 Pa - 22ADP-184

The Belimo differential pressure sensor is a precise sensor specially designed for monitoring air and other non-combustible gases in HVAC systems. The sensor combines high measurement accuracy with a very robust construction. Thanks to the IP65 enclosure, the device is completely dust-tight and water jet resistant, ensuring reliable operation even under harsh conditions. This makes the differential pressure sensor the ideal choice for checking air filters, monitoring fans, or accurately controlling the pressure in smoke-free escape routes. The sensor is highly versatile thanks to eight selectable measuring ranges and various output signals.

Advantages and Features

Piezo measurement technology: Equipped with a high-quality sensor element that reliably detects even the smallest pressure differences.
Universal output signals: Supports both 0...5/10 V and 4...20 mA, guaranteeing seamless integration with any Building Management System (BMS).
IP65 protection class: The robust, UV-resistant enclosure is fully dust- and water jet-proof, ideal for installation in humid air handling units or plant rooms.
8 selectable measuring ranges: Easily select the appropriate range (between -100 and 2500 Pa) via adjustable DIP switches, making the sensor suitable for virtually any project.

Installation, Maintenance and Applications

The Belimo differential pressure sensor is designed for mounting on walls, ducts, or directly inside air handling units. For correct operation when measuring differential pressure, the supplied hose sets are connected to the sensor’s 6 mm connections. The enclosure provides a secure and clear connection through a pluggable terminal block and a cable gland with strain relief. The sensor is widely used in commercial buildings and industry for filter monitoring, fan control, and maintaining overpressure in smoke-free escape routes.

Included Components

The Belimo differential pressure sensor is supplied as standard with:

Mounting plate (L-enclosure)
Pitot tube set, including 2 duct connectors, 2 m hose and mounting screws

Brand	Belimo
Category	Sensors and controllers
GTIN	7630498100901
Manufacturer's item number	22ADP-184
Article number	23010044

Specifications

Category code	101
Connection	Hose pillar

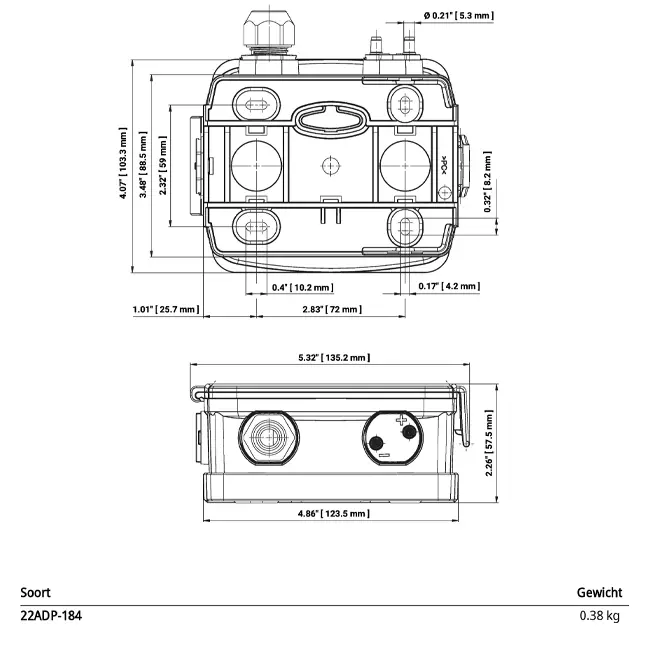

Width	65 mm
Height	152 mm
Depth	162 mm
Housing material	Plastic
Degree of protection (IP)	IP65
Max. overpressure	40 Pa
Medium temperature (continuous) (min)	-10 °C
Medium temperature (continuous) (max)	50 °C
Suitable for air	Yes
Suitable for gases	Yes
With display	No
Readable	No
Explosion-proof	No
Supply voltage	24 V
Output signal	0 - 10 V
Measuring range (min)	-100 °C
Suitable for ammonia	No
Suitable for glycol	No
Measuring element	Piezo
Measuring range (max)	2500 °C
Suitable for steam	No
Suitable for oil	No
Suitable for water	No
