The Belimo duct and immersion temperature sensor is designed for measuring air and water temperatures in HVAC systems and can also be used in pipes when combined with an immersion sleeve. The stainless steel probe and housing ensure stable and protected mounting. The passive Ni1000TK5000 element accurately converts the measured temperature into a resistance signal processed by the control system. Based on this measurement, the system automatically regulates to maintain a constant and efficient climate control.
The sensor is suitable for mounting in air ducts and can be used in pipes with an immersion sleeve. Correct positioning of the probe ensures a representative temperature reading of the medium. The housing allows for a safe and organised connection via a terminal block. Due to its passive design, no power supply is required. The sensor is used in commercial buildings, residential housing and industrial HVAC systems where reliable temperature measurement is essential.
The sensor features a 50 mm long, 6 mm diameter stainless steel probe, compact in size and therefore easy to install in narrow ducts or combined with an immersion sleeve for pipe applications. The housing is made of impact-resistant plastic and equipped with a cable gland with strain relief to ensure a reliable connection. The Ni1000TK5000 element transmits the resistance signal directly to the controller. This design is suitable for both duct and pipe applications requiring robust mounting and stable measurement.
| Brand | Belimo |
| Category | Sensors and controllers |
| GTIN | 7630498117497 |
| Manufacturer's item number | 01DT-1DH |
| Article number | 23010038 |
| Category code | 101 |
| With mounting material | Yes |
| Suitable for wall mounting | No |
| Suitable for ceiling mounting | No |
| Suitable for duct mounting | Yes |
| Suitable for tube mounting | Yes |
| Suitable for air | Yes |
| Suitable for liquids | Yes |
| Suitable for gases | No |
| With housing | Yes |
| Sensor element inside housing | No |
| Sensor element outside housing | Yes |
| Fixed cable to sensor | No |
| Sensor length | 50 mm |
| Insert length | 50 mm |
| Diameter sensor element | 6 mm |
| Material element | Stainless steel |
| Technology | Other |
| Active temperature measurement | No |
| Passive temperature measurement | Yes |
| Average temperature measuring | No |
| Number of measuring points | 1 |
| Measurement of CO2 | No |
| Measurement of VOC | No |
| Measurement of relative air humidity | No |
| Measurement of absolute air humidity | No |
| Enthalpy measurement | No |
| Measurement of dewpoint | No |
| Particulate matter measurement (PM) | No |
| Temperature measuring range (min) | -50 °C |
| Temperature measuring range (max) | 160 °C |
| Number of measuring ranges | 1 |
| Offset setting possible | No |
| Trend representation | No |
| Error registration possible | No |
| Sensor type | Ni1000 TK5000 |
| Potentiometer with adjustment knob | No |
| Supporting protocol for BACnet | No |
| Supporting protocol for Modbus | No |
| Supporting protocol for MP (multi point) | No |
| Supporting protocol for KNX | No |
| LoRa technology | No |
| NFC (Near Field Communication) | No |
| Bluetooth | No |
| Wi-Fi-compatible | No |
| Standby push button | No |
| Wireless | No |
| With display | No |
| Type of power supply | None |
| Type of electric connection | Terminal board |
| With reverse polarity protection | No |
| Max. ambient humidity (non-condensing) | 95 % |
| Ambient temperature (min) | -35 °C |
| Ambient temperature (max) | 50 °C |
| Explosion-proof | No |
| Degree of protection (IP) | IP65 |

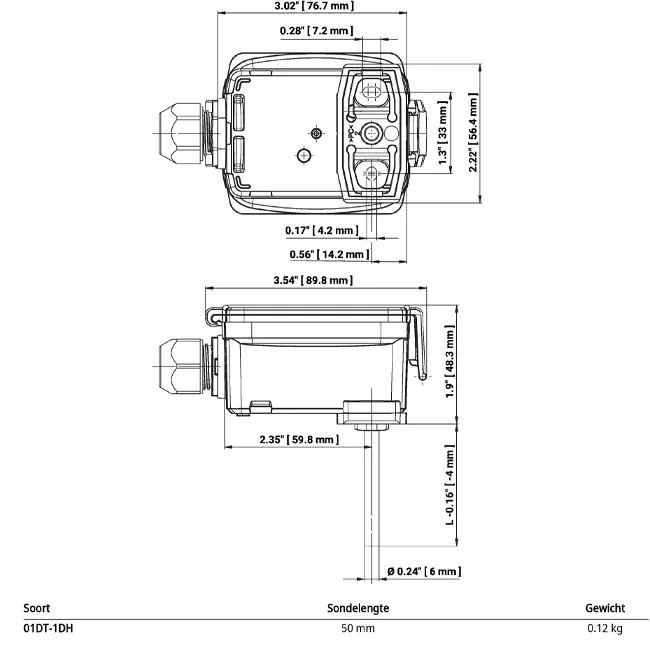

| Housing height | 56.4 mm |
| Housing width | 76.7 mm |
| Housing depth | 89.8 mm |
| Housing colour | Orange |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| IFTTT support available | No |
| Scope of application | Immersion tube/duct |
