The Belimo duct and immersion temperature sensor is designed for measuring air and water temperatures in HVAC systems and can also be used in pipes when combined with an immersion sleeve. The stainless steel probe and housing ensure a stable and protected installation. The passive Ni1000TK5000 element accurately converts the measured temperature into a resistance signal processed by the control system. Based on this measurement, the system is automatically regulated for constant and efficient climate control.
The sensor is suitable for mounting in air ducts and can also be used in pipes together with an immersion sleeve. Correct positioning of the probe ensures a representative temperature measurement in the medium. The housing enables a safe and organised connection via a terminal block. Due to its passive design, no power supply is required. The sensor is used in commercial buildings, residential buildings, and industrial HVAC systems where reliable temperature measurement is essential.
The sensor features a 150 mm long, 6 mm diameter stainless steel probe. This probe length is suitable for medium-sized ducts, providing sufficient penetration into the medium for a representative measurement. The housing is made of impact-resistant plastic and includes a cable gland with strain relief for a reliable connection. The Ni1000TK5000 element directly transmits the resistance signal to the controller. This version is suitable for both duct and pipe applications where robust mounting and stable measurement are required.
| Brand | Belimo |
| Category | Sensors and controllers |
| GTIN | 7630498117503 |
| Manufacturer's item number | 01DT-1DN |
| Article number | 23010040 |
| Category code | 101 |
| With mounting material | Yes |
| Suitable for wall mounting | No |
| Suitable for ceiling mounting | No |
| Suitable for duct mounting | Yes |
| Suitable for tube mounting | Yes |
| Suitable for air | Yes |
| Suitable for liquids | Yes |
| Suitable for gases | No |
| With housing | Yes |
| Cover attachment | Screwed |
| Sensor element inside housing | No |
| Sensor element outside housing | Yes |
| Fixed cable to sensor | No |
| Sensor length | 150 mm |
| Insert length | 150 mm |
| Diameter sensor element | 6 mm |
| Material element | Stainless steel |
| Technology | Other |
| Active temperature measurement | No |
| Passive temperature measurement | Yes |
| Average temperature measuring | No |
| Number of measuring points | 1 |
| Measurement of CO2 | No |
| Measurement of VOC | No |
| Measurement of relative air humidity | No |
| Measurement of absolute air humidity | No |
| Enthalpy measurement | No |
| Measurement of dewpoint | No |
| Particulate matter measurement (PM) | No |
| Temperature measuring range (min) | -50 °C |
| Temperature measuring range (max) | 160 °C |
| Number of measuring ranges | 1 |
| Offset setting possible | No |
| Trend representation | No |
| Error registration possible | No |
| Sensor type | Ni1000 TK5000 |
| Potentiometer with adjustment knob | No |
| Supporting protocol for BACnet | No |
| Supporting protocol for Modbus | No |
| Supporting protocol for MP (multi point) | No |
| Supporting protocol for KNX | No |
| LoRa technology | No |
| NFC (Near Field Communication) | No |
| Bluetooth | No |
| Wi-Fi-compatible | No |
| Standby push button | No |
| Wireless | No |
| With display | No |
| Type of power supply | None |
| Type of electric connection | Terminal board |
| With reverse polarity protection | No |
| Max. ambient humidity (non-condensing) | 95 % |
| Ambient temperature (min) | -35 °C |
| Ambient temperature (max) | 50 °C |
| Explosion-proof | No |
| Degree of protection (IP) | IP65 |

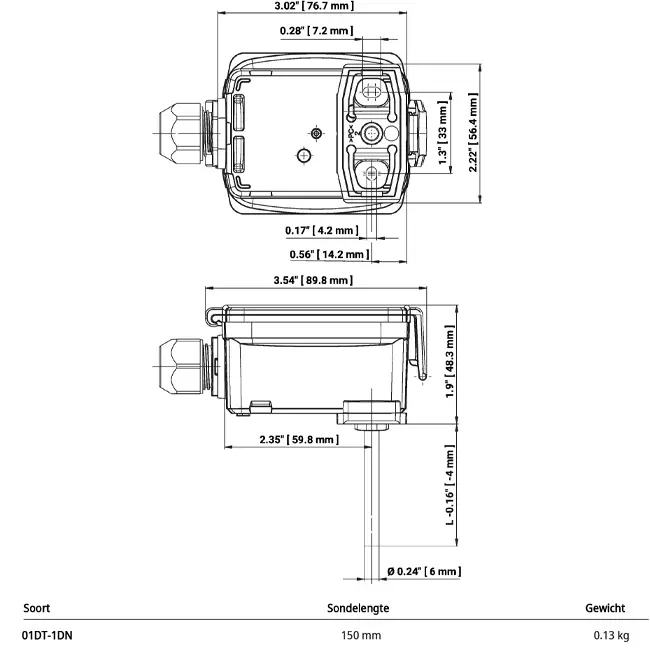

| Housing height | 56.4 mm |
| Housing width | 76.7 mm |
| Housing depth | 89.8 mm |
| Housing colour | Orange |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| IFTTT support available | No |
| Scope of application | Immersion tube/duct |
