Good points

Ø 100 mm
Airflow of 104 m³/h

Bathroom extractor fan white - Ø 100 mm (pRim100S)

Install this bathroom extractor fan for guaranteed air supply and extraction. Our bathroom extractor fans are suitable for extraction in your bathroom, toilet, storage room or any other room in your house.

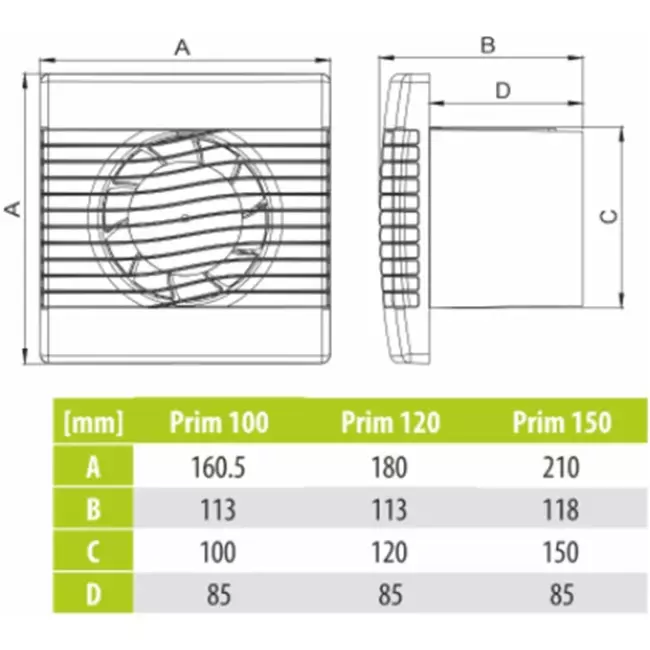

The standard bathroom extractor fan can be mounted in the ceiling or wall, according to your preference, in a ventilation duct or ventilation hose of the same diameter — in this case 100 mm. Have a look at the 3D image above, too.

The bathroom extractor fan with a diameter of 100 mm is available in a variety of models, with or without additional functions that facilitate the use of the toilet fan. A long service life is guaranteed thanks to the bearing motor, which can be switched on and off.

This bathroom extractor fan has a diameter of 100 mm. This is equal to a diameter of 4 inches.

Brand	Air Roxy
Category	airRoxy pRim Bathroom extractor fans
GTIN	5901583200014
Manufacturer's item number	19401001
Article number	19401001

Specifications

Category code	84
Operation	Mains
Colour	White
Width	160 mm
Height	160 mm
Degree of protection (IP)	IPX4
Connection voltage	230 V
Air volume, unloaded	104 m³/h
Power consumption	15 kW
Plug type	Power grid
With non-return valve	No
Timer	None
Noise level (dB)	39 dB
Built-in depth (max)	85 mm
Shape	Square
Built-in depth (min)	85 mm
Hygrostat	None
Mounting method	Ceiling mount, Wall mount
Built-in diameter	100 mm
Suitable for app operation	No
Diameter	100 mm
