Good points

Panel without plenum
12 vanes
594x594 mm

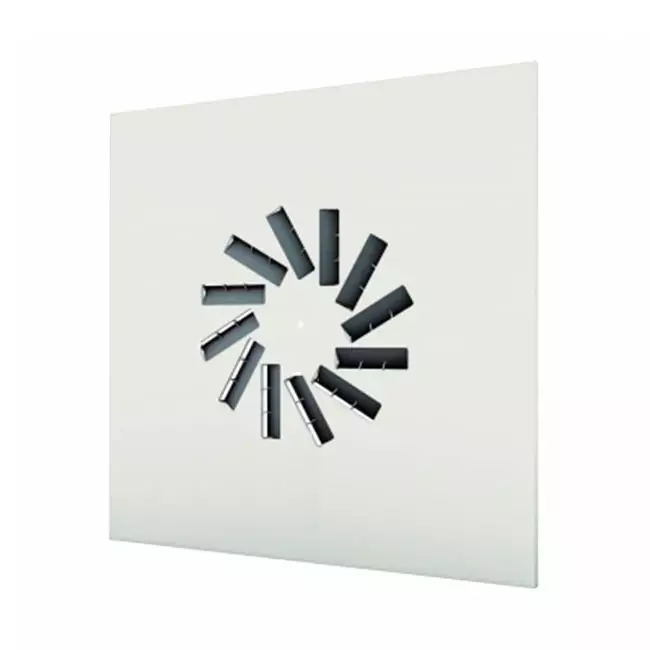

Swirl diffuser 600 x 600 with 12 vanes

This 600 x 600 steel swirl diffuser has nominal dimensions of 594 x 594 and is suitable for a ceiling system. This swirl diffuser is suitable for supplying and extracting air, as the 12 adjustable vanes can be used to alter the airflow pattern.

Wall grille property	Value
Nominal length	594 mm
Nominal height	594 mm
Installation	Ceiling system insert panel 600 x 600
Connection	None
Material	Steel
Adjustable flow	Yes, via 12 adjustable black plastic vanes
Functions	Supply and extraction

The nominal length and height shown is the size of the cutout where the wall grille is mounted, also known as the opening size. If you have a wall grille with clamping springs, we supply screws to match your chosen mixed colour.

Swirl diffuser colours

All swirl diffusers can be supplied in a mixed colour for you (see table). Mixed colours are paint finishes which are mixed specifically for you. All products come on 90-day approval (except for products finished with a 'mixed colour blend').

Mixed colour	Name	Coating	Finish
RAL 9010 (tip)	Pure white	Powder coating	70% gloss
RAL9003	Signal white	Powder coating	70% gloss
RAL9005	Black	Powder coating	30% gloss
RAL9016	Traffic white	Powder coating	70% gloss

(mixed colours shown in photos may differ slightly)

These mixed colours are available at no extra cost. Prefer a different mixed colour? This can be arranged - please contact us for a custom quote.

Brand	Grada
Category	Swirl diffusers with adjustable deflectors
GTIN	8719544208941
Manufacturer's item number	WT100-F01600594-RAL 9010
Article number	37050501-9010

Specifications

Top connection on plenum	No
Category code	59
Coating	RAL 9010
Front width	594 mm
Front length	594 mm
Frontview	Rectangular
Colour	RAL 9010
Material	Steel
Nom. duct diameter connection	160 mm
Without plenum	Yes
Right of return	No. Mixed colour customisation
For modular ceiling systems	600 x 600
Colour type (no surcharge)	Bespoke
