EPS Plenum insulated 590x590 Ø 125mm

EPS Plenum: Lightweight and thermally insulated for ventilation and air conditioning

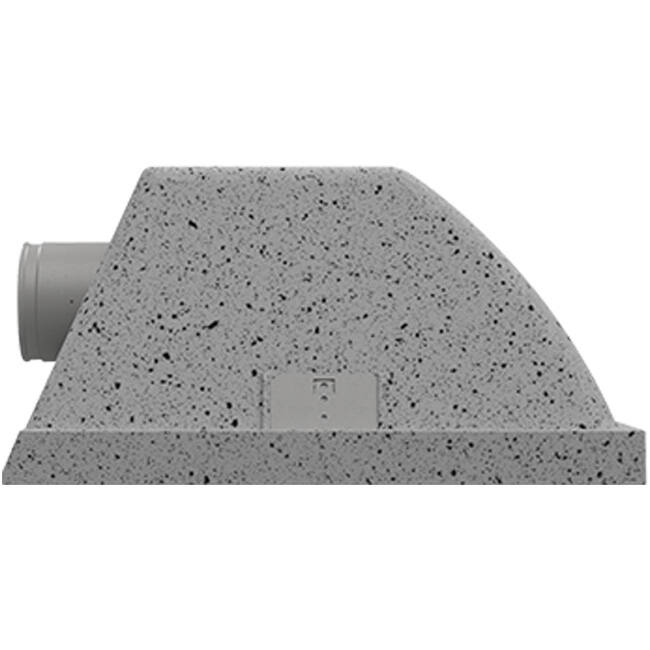

The EPS plenum with side connection Ø125 mm is the perfect solution for air supply and air exhaust in both air conditioning and ventilation systems. Specially designed for ceiling grilles of 595 x 595 mm, such as swirl grilles, this plenum box offers a combination of lightweight design and excellent thermal insulation. The use of expanded polystyrene (EPS) makes the plenum not only durable, but also easy to install thanks to its low weight of less than 1.5 kg. In addition, the galvanized steel inlet provides extra strength and a long service life, while the design complies with fire class 1 according to DIN4102, guaranteeing a high level of safety.

The EPS plenum is available in various diameters, including Ø125 mm, Ø160 mm, Ø200 mm and Ø250 mm, making it suitable for a wide range of applications. The product offers an optional volume control, allowing the airflow to be easily and precisely adjusted. Thanks to its clever construction, the plenum can be assembled in less than 60 seconds, saving time during installation. These features make the product ideal for use in both residential and commercial air distribution systems.

Applications and use

The EPS plenum is designed for a wide range of applications in ventilation and air conditioning systems. It is particularly suitable for 595 x 595 mm ceiling diffusers, such as swirl diffusers, and is widely used in areas such as offices, living rooms and meeting rooms. The lightweight design and fire-resistant properties make the product easy to handle and suitable for visible installations.

Practical information

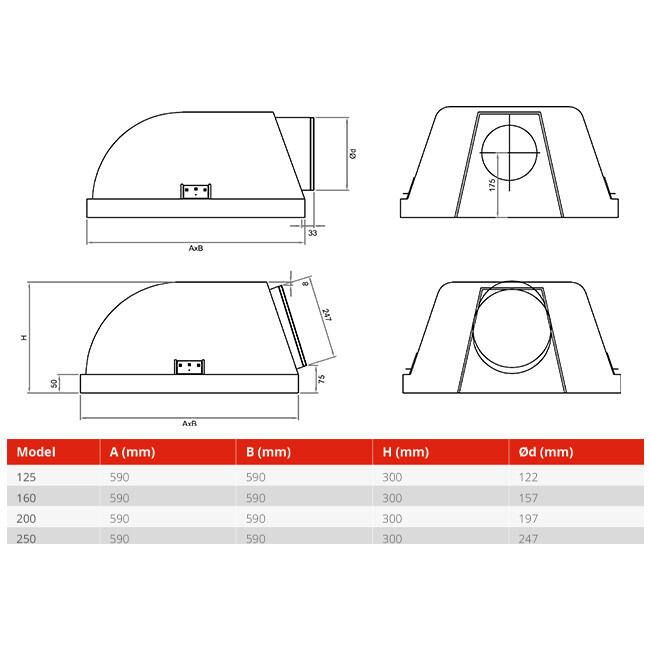

• Dimensions: Designed for 595 x 595 mm ceiling diffusers.
• Available diameters: Ø125 mm, Ø160 mm, Ø200 mm, Ø250 mm.

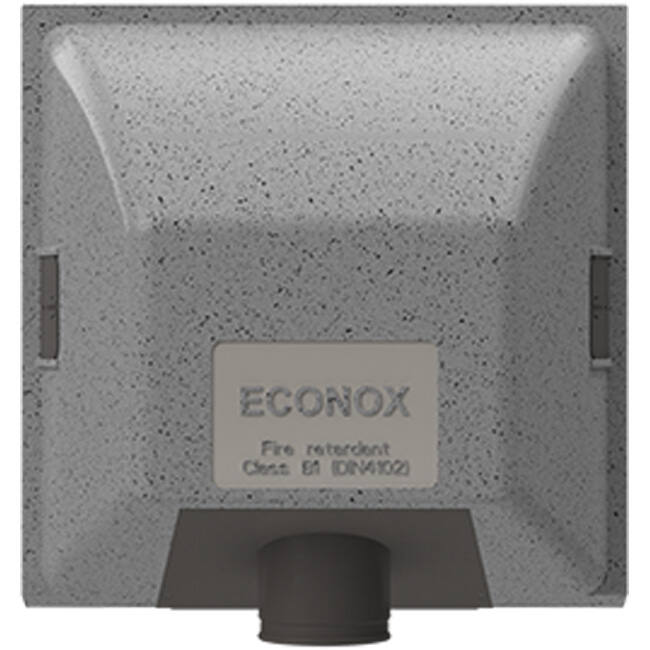

• Fire safety: Classified as fire class 1 according to DIN4102.
• Weight: Less than 1.5 kg.
