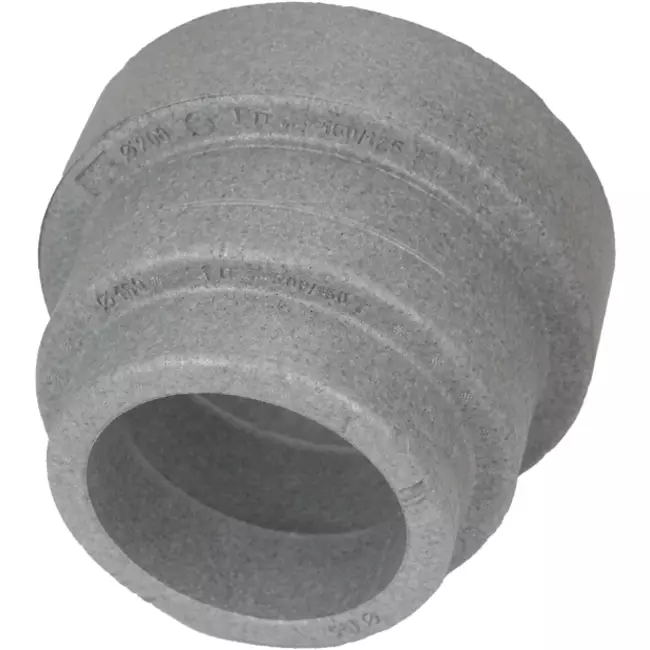

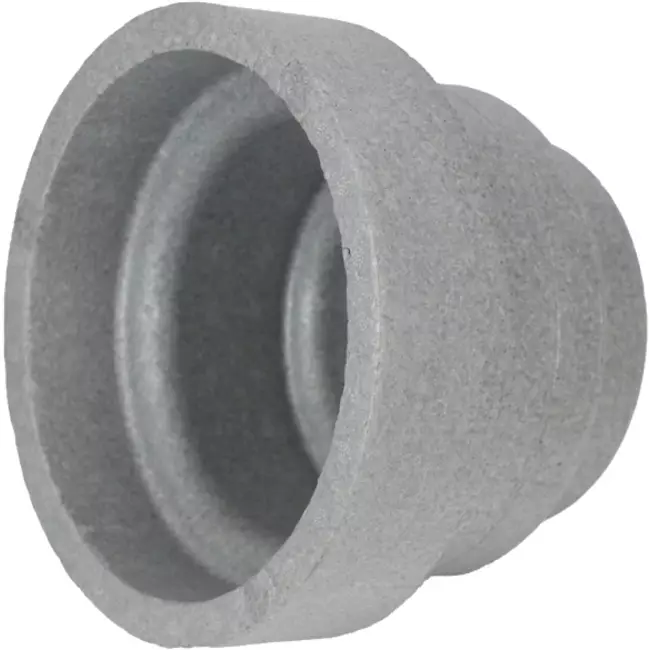

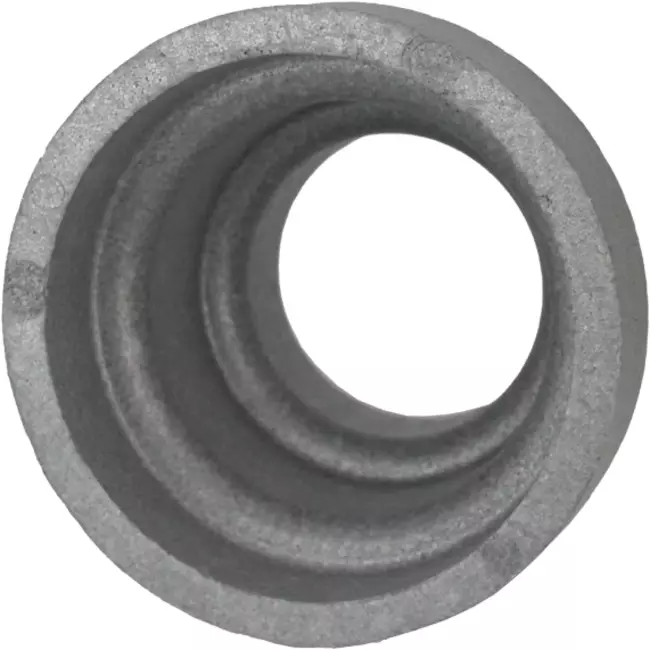

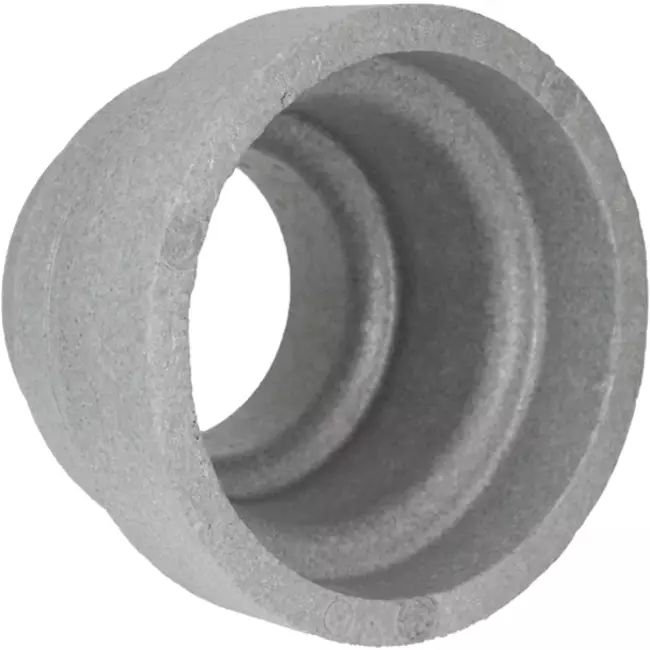

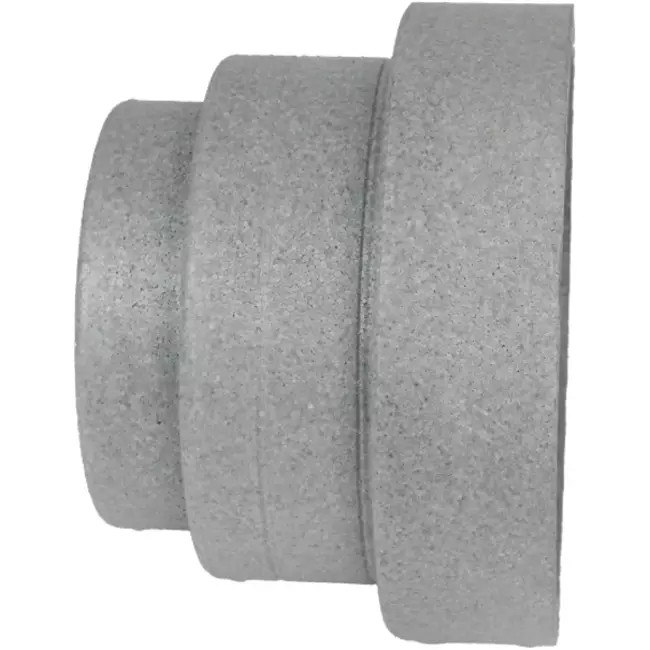

Adapter for insulated pipe 125/160/200mm

Heatpex Aria Aduro adapter 125/160/200mm

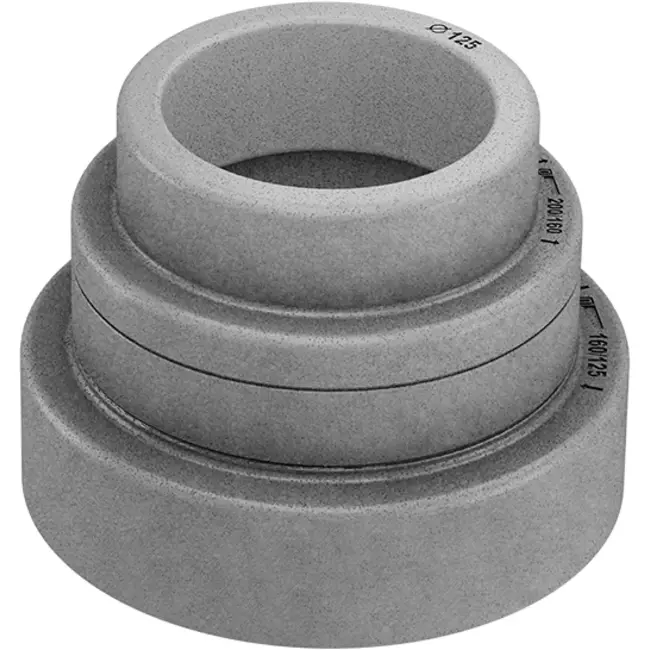

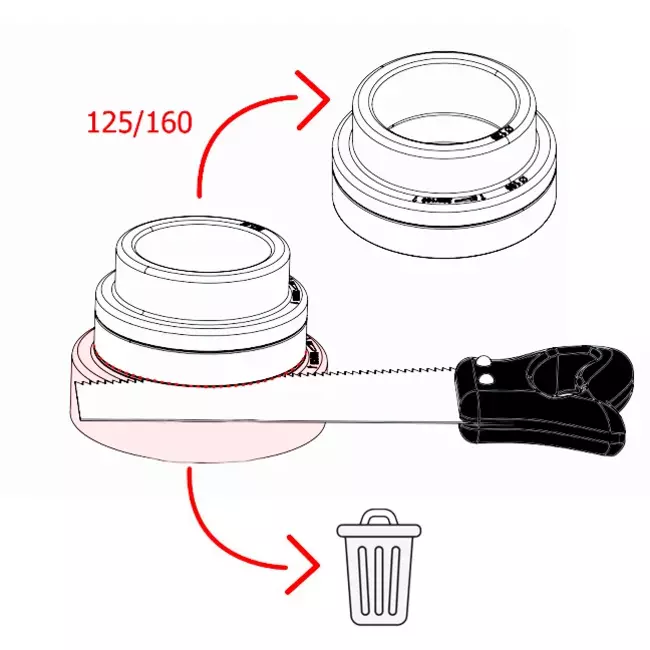

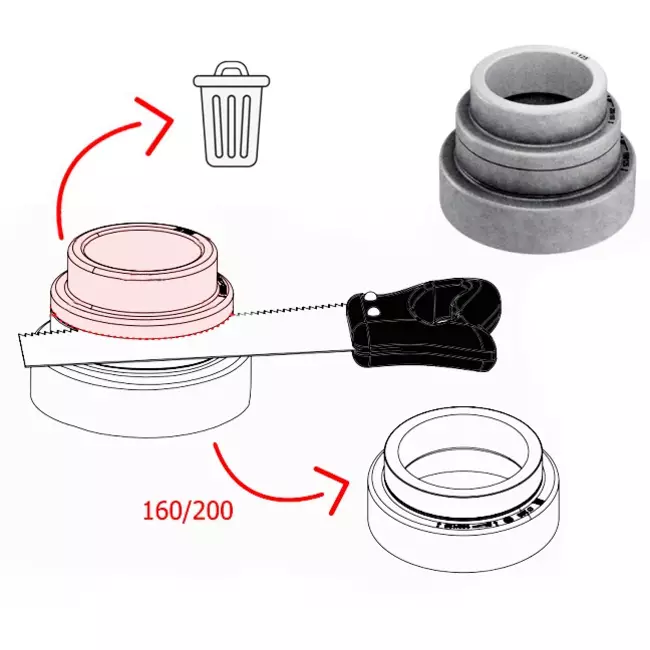

Three-step reducer that allows the diameter of the duct to be changed between 125, 160 or 200 mm. To obtain a two-stage reducer, the part with the superfluous diameter must be cut off. The Heatpex ARIA ADURO system is used for transferring large amounts of air between HRV unit and inlet/outlet and between HRV unit and manifolds. The pipes are made of light and durable material with high insulating properties - expanded polystyrene (EPS) with added graphite, resistant to mould, mildew and bacteria.

• A complete air distribution system with only 5 basic parts
• low heat loss (?=0,029 W/mK)
• Small diameter for easy installation in walls and ceilings
• Smooth inner surface minimises air resistance and makes cleaning the air duct easier
• Air tightness class D (ATC-1 based on PN-EN 17192)
