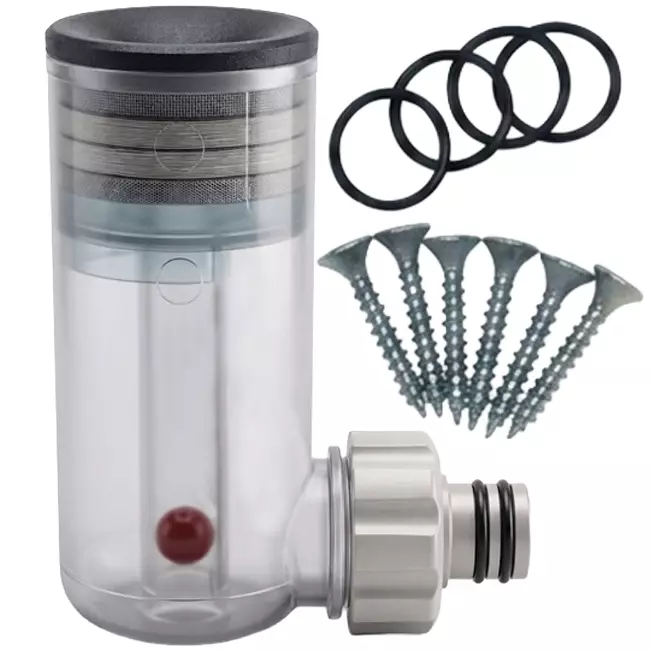

Waterless recessed siphon for condensate drainage.

Waterless Built-in Trap for Condensate Drainage

The condensate drainage mini trap with a horizontal outlet is a compact solution for the controlled discharge of condensate water in HVAC installations. This trap is used in air conditioning systems and ventilation units where reliable odour sealing and efficient drainage are essential. Thanks to its compact design, the trap is easy to integrate into installations with limited installation space, while the horizontal outlet allows for a flexible connection to the drainage pipe.

Advantages and Features

• Compact design: ideal for use in small technical rooms or units
• Integrated odour trap: prevents unwanted air or sewer gases from re-entering the system
• Horizontal outlet: allows direct and practical connection to existing drainage pipes

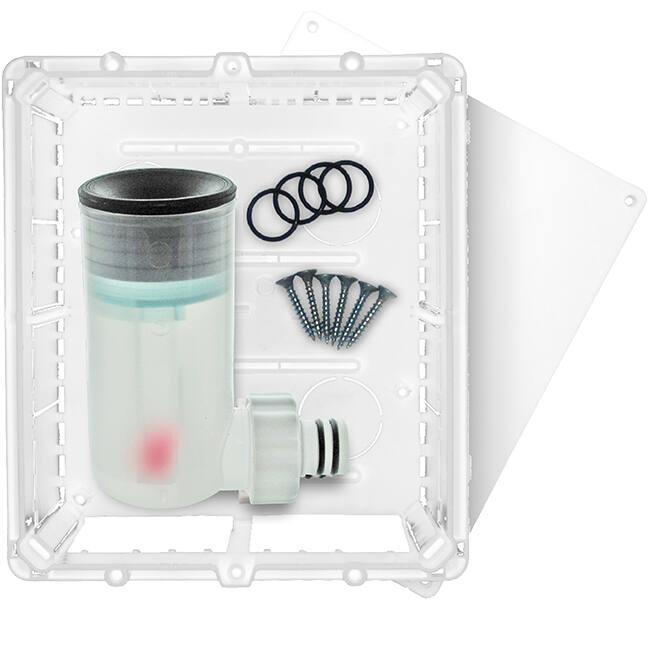

• Complete kit: includes all necessary components for installation
• Wide applicability: suitable for condensate drainage in various HVAC applications

Performance and Practical Use

In practice, this mini trap provides a stable water seal that prevents air flows through the drainage and ensures optimal system operation. This contributes to trouble-free functioning of the connected unit. The horizontal outlet facilitates neat installation and fits well with setups where the drainage pipe runs along walls or ceilings. Its compact construction keeps the trap accessible without occupying much space.

Installation, Maintenance and Applications

The trap is designed for easy and quick installation. It can be directly integrated into the condensate drainage pipe of the system. Thanks to the modular design of the kit, fewer loose parts are needed, reducing installation time and the risk of assembly errors. Maintenance is limited to periodic inspection and cleaning to prevent dirt or biofilm build-up, ensuring the water seal remains effective. This trap is widely applicable in air conditioning and ventilation systems that require reliable condensate drainage.

With this trap, you choose a practical and space-saving solution that ensures correct condensate drainage and effective odour sealing within your HVAC installation.
