Wall grille aluminum single adjustable with control damper - with friction springs - 200x100 mm - RAL 9016

Brand: Econox

-25%

RRP 80.52

60.38 -25%

You'll save 20.14

In stock

The largest collection in the United Kingdom
100 day return period
Customer review 9/10
Safe shopping with Trustedshops

Pay safe and fast with:

Good points

For supply and removal
Extruded aluminum
Single adjustable

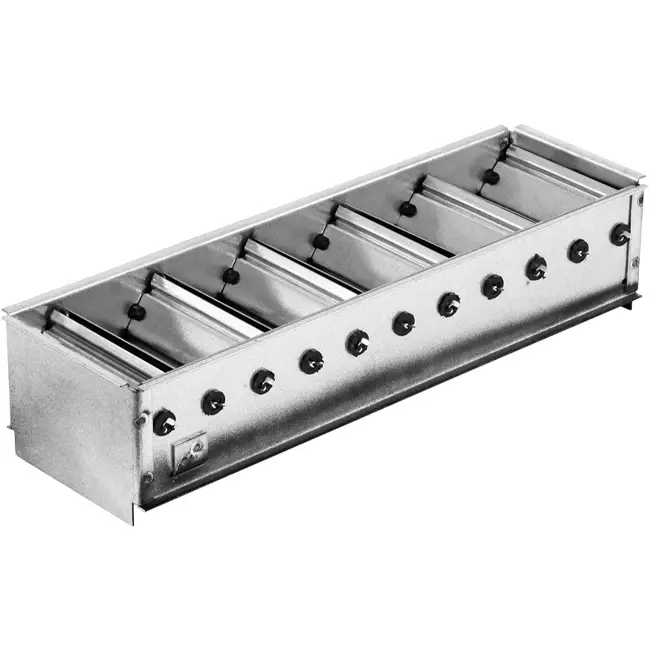

Incl. integrated control valve

Aluminium wall grille single adjustable with control damper – with spring clips – 200x100 mm – RAL 9016

The Econox wall grille, made of aluminium with horizontally adjustable blades, is specially designed for the supply and exhaust of air in commercial interiors such as offices, schools and retail spaces. This version features an integrated control damper, allowing the airflow to be easily regulated. The wall grille can be adjusted using the movable blades to achieve the desired airflow direction.

Practical information

The wall grille measures 200 mm in width and 100 mm in height. The mounting frame and blades are made from extruded aluminium, preventing distortion during installation, and are subsequently powder-coated in RAL 9010, 9016 or 9005.

Installation and applications

The wall grille with control damper is supplied as standard with spring clips and a mounting frame, enabling installation in the wall. The spring clips allow the grille to be easily snapped into the mounting frame before the frame is fitted into the wall. Optionally, the wall grille can be combined with a plenum (only when using spring clips and without a mounting frame) to provide an even air distribution within the space.

Brand	Econox
Category	Wall grilles aluminium with clamping springs - single adjustable vanes
GTIN	8719544328984
Manufacturer's item number	79000190
Article number	79000190

Specifications

Category code	59
Material	Aluminium
Surface protection	Lacquered
Nominal duct width	200 mm
Nominal duct height	100 mm
Vertical fins	No
Double row of ribs	No
Front width	232 mm
Front height	132 mm
With built-in window	Yes
Colour	White
RAL-number	9016
Air pattern, adjustable	Yes
Servomotor, adjustable	No
Thermostatically adjustable	No
Volume setting	Slide
Ball-protected	No
Built-in depth	92 mm
Mounting of internal parts/grille	Hidden clamp
Suitable for round air duct	No
