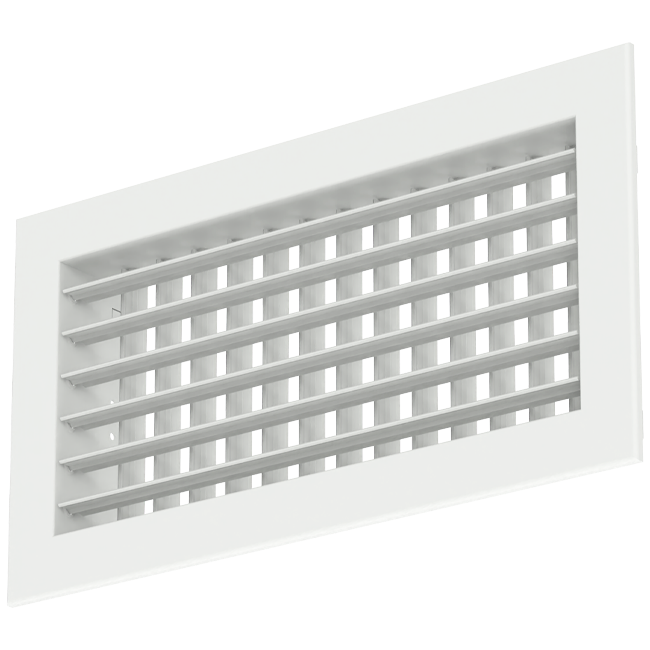

Wall grille aluminum double adjustable - with friction springs - 800x150 mm - RAL 9016

Brand: Econox

-25%

RRP 119.27

89.45 -25%

You'll save 29.82

In stock

The largest collection in the United Kingdom
100 day return period
Customer review 9/10
Safe shopping with Trustedshops

Pay safe and fast with:

Good points

For supply and removal
Extruded aluminum
Double adjustable

Aluminium Wall Grille Double Adjustable – with Spring Clips – 800x150 mm – RAL 9016

The Econox wall grille, made of aluminium and featuring both horizontally and vertically individually adjustable blades, is specifically designed for air supply and extraction in commercial indoor spaces such as offices, schools, and shops. The grille’s adjustable blades allow for the desired airflow direction to be precisely set.

Practical Information

The wall grille measures 800 mm in width and 150 mm in height. Both the mounting frame and the blades are manufactured from extruded aluminium, preventing deformation during installation, and subsequently powder coated in RAL 9010, 9016, or 9005.

Installation and Applications

The wall grille is supplied as standard with spring clips and a mounting frame, enabling installation into the wall. Using the spring clips, the grille can be easily snapped into the mounting frame before being fitted into the wall. Optionally, the wall grille can be combined with a plenum (only when using spring clips without the mounting frame) or a control damper to ensure uniform air distribution within the space.

Brand	Econox
Category	Wall grilles aluminium with friction springs - double adjustable vanes
GTIN	8719544327444
Manufacturer's item number	79000036
Article number	79000036

Specifications

Category code	59
Material	Aluminium
Surface protection	Lacquered
Nominal duct width	800 mm
Nominal duct height	150 mm
Vertical fins	Yes
Double row of ribs	Yes
Front width	832 mm
Front height	182 mm
With built-in window	Yes
Colour	White
RAL-number	9016
Air pattern, adjustable	Yes
Servomotor, adjustable	No
Thermostatically adjustable	No
Volume setting	None
Ball-protected	No
Built-in depth	45 mm
Mounting of internal parts/grille	Hidden clamp
Suitable for round air duct	No
