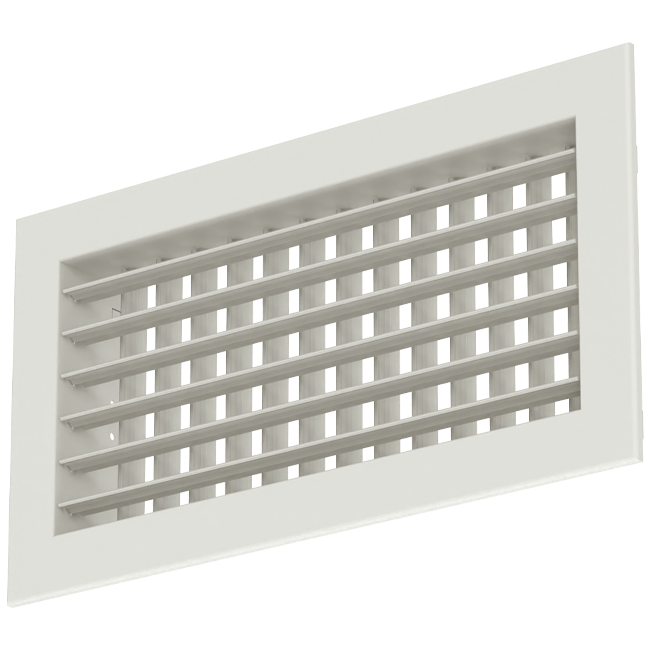

Wall grille aluminum double adjustable with control damper - with friction springs - 300x200 mm - RAL 9010

Brand: Econox

-25%

RRP 123.34

92.51 -25%

You'll save 30.83

In stock

The largest collection in the United Kingdom
100 day return period
Customer review 9/10
Safe shopping with Trustedshops

Pay safe and fast with:

Good points

For supply and removal
Extruded aluminum
Double adjustable
Incl. integrated control valve

Aluminium Wall Vent Double Adjustable with Control Damper – with Spring Clips – 300x200 mm – RAL 9010

The Econox aluminium wall vent, featuring individually adjustable horizontal and vertical blades, is specifically designed for air supply and exhaust in commercial indoor spaces such as offices, schools, and retail stores. This version includes an integrated control damper that allows easy regulation of the airflow. The wall vent can be adjusted using the movable blades to achieve the desired airflow direction.

Practical Information

The wall vent measures 300 mm in width and 200 mm in height. Both the mounting frame and the blades are made from extruded aluminium, preventing deformation during installation, and are subsequently powder-coated in RAL 9010, 9016, or 9005.

Installation and Applications

The wall vent with control damper is supplied as standard with spring clips and a mounting frame, enabling installation in the wall. The vent can be easily clipped into the mounting frame using the spring clips before the frame is installed into the wall. Optionally, the wall vent can be combined with a plenum (only when using spring clips and without the mounting frame) to provide uniform air distribution within the space.

Brand	Econox
Category	Wall grilles aluminium with friction springs - double adjustable vanes
GTIN	8719544328267
Manufacturer's item number	79000118
Article number	79000118

Specifications

Category code	59
Material	Aluminium
Surface protection	Lacquered
Nominal duct width	300 mm
Nominal duct height	200 mm
Vertical fins	Yes
Double row of ribs	Yes
Front width	332 mm
Front height	232 mm
With built-in window	Yes
Colour	White
RAL-number	9010
Air pattern, adjustable	Yes
Servomotor, adjustable	No
Thermostatically adjustable	No
Volume setting	Slide
Ball-protected	No
Built-in depth	112 mm
Mounting of internal parts/grille	Hidden clamp
Suitable for round air duct	No
