Good points

Adjustable airflow
Metal design, sturdy
Easy assembly, quickly installed
Low maintenance

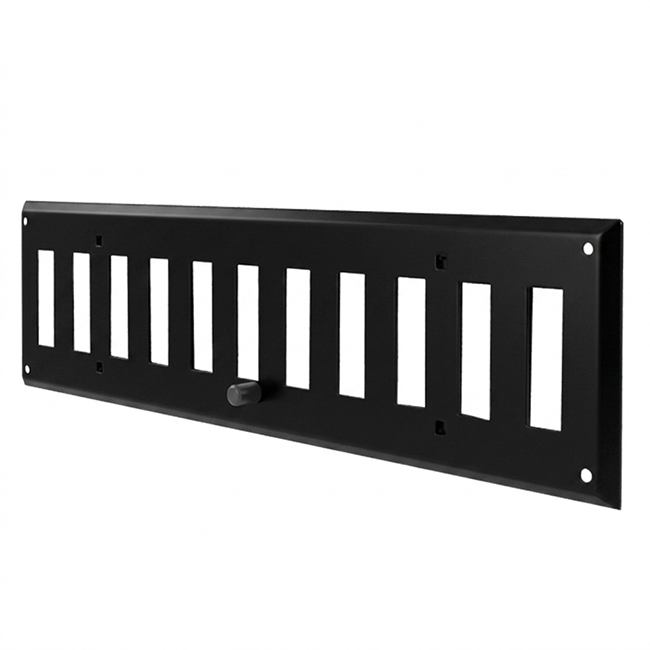

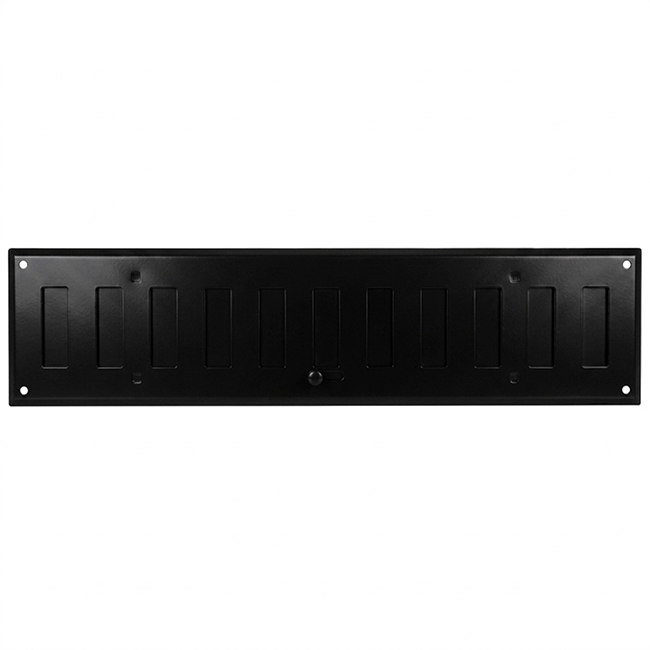

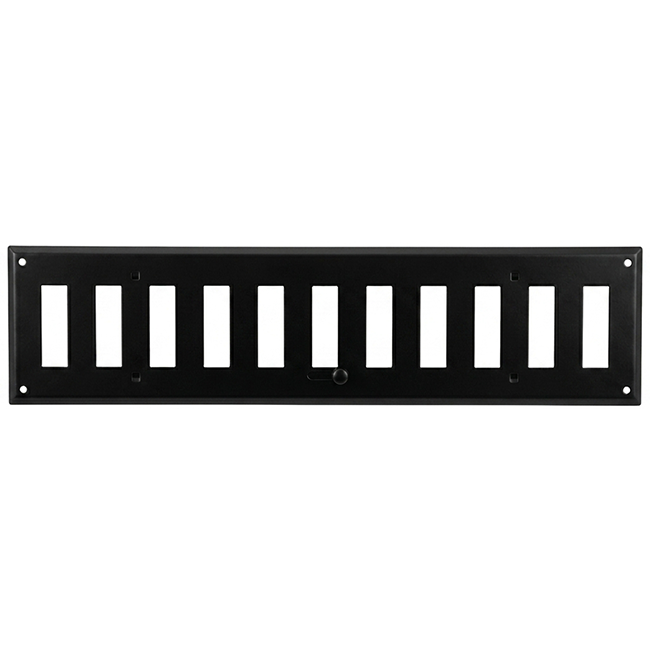

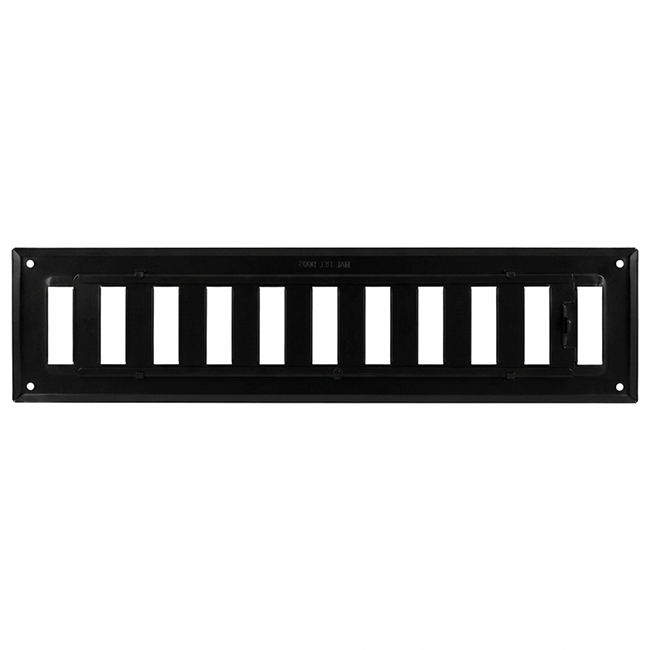

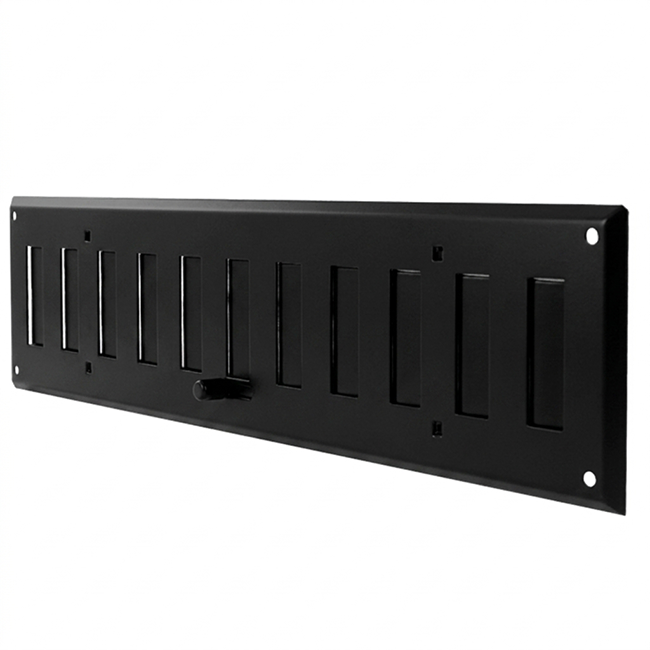

Adjustable Wall Grille 500x100mm Metal - RAL9005 30% Gloss

This adjustable wall grille measuring 500x100 mm is made of metal and finished in RAL 9005 with 30% gloss. It is used for air supply or air extraction through wider wall openings. The adjustable louvers ensure precise and even air distribution.

Benefits and Features

Adjustable Louvers – precise control of airflow.
Metal Construction – robust and dimensionally stable.
RAL 9005 30% Gloss – black satin gloss finish for a modern appearance.
Size 500x100 mm – suitable for wider duct connections.

Installation and Application

You attach the grille directly to the wall or duct connection. Thanks to the larger size, this grille is ideal for spaces where broader air distribution is required. The metal design ensures durability and minimal maintenance.

This wall grille allows you to efficiently regulate airflow with a sleek black finish.

Brand	Econox
Category	Adjustable metal rectangular slot diffusers
GTIN	8719544332059
Manufacturer's item number	76021026
Article number	76021026

Specifications

Category code	62
Surface protection	Lacquered
Nominal duct width	500 mm
Nominal duct height	100 mm
Vertical fins	Yes
Double row of ribs	No
Front width	504 mm
Front height	100 mm
With built-in window	No
Colour	Black
RAL-number	9005
Air pattern, adjustable	Yes
Servomotor, adjustable	No
Thermostatically adjustable	No
Volume setting	Slide
Ball-protected	No
Built-in depth	96 mm
Mounting of internal parts/grille	Visible screw
Suitable for round air duct	No
Material	Steel
