Good points

Gravity valve against recoil
Aluminum, corrosion resistant
Slats for free flow
Good for natural ventilation

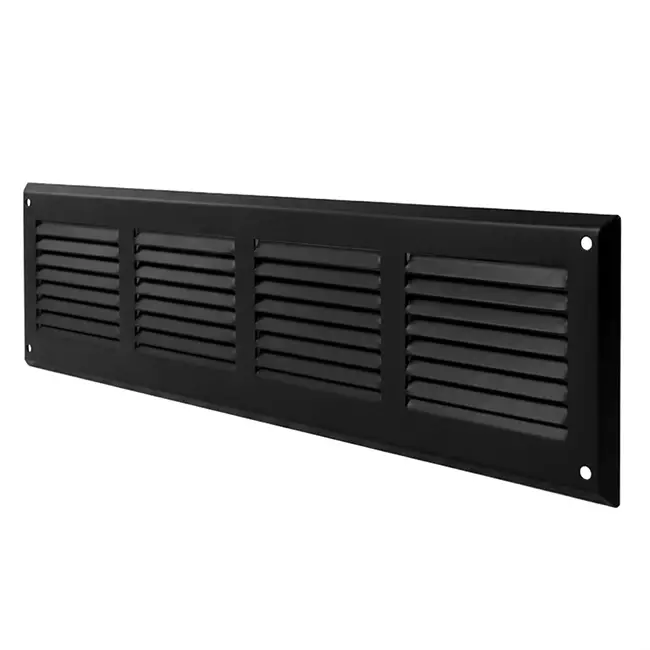

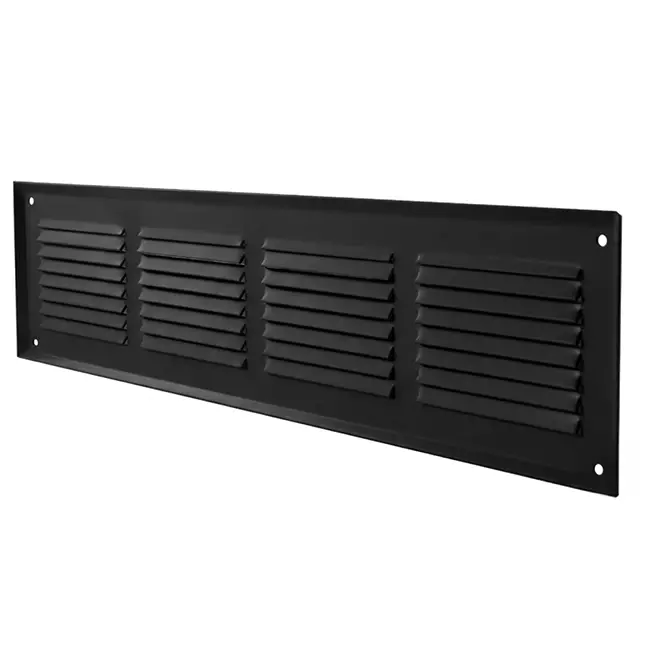

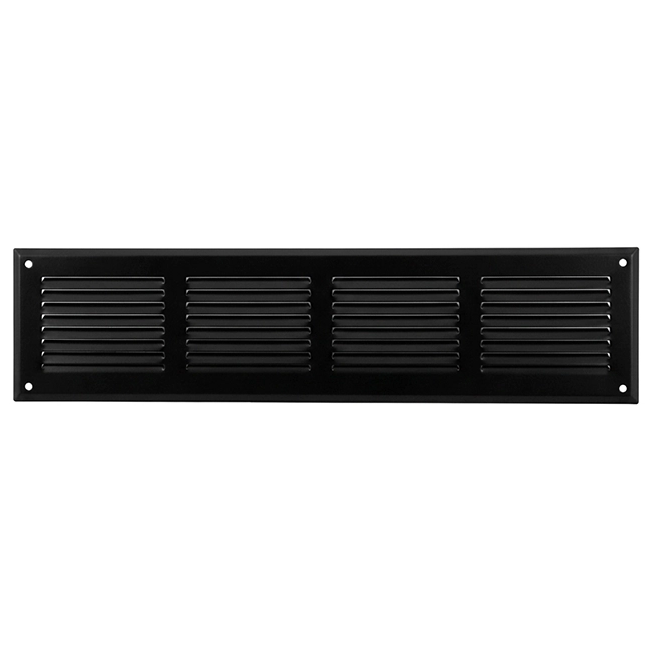

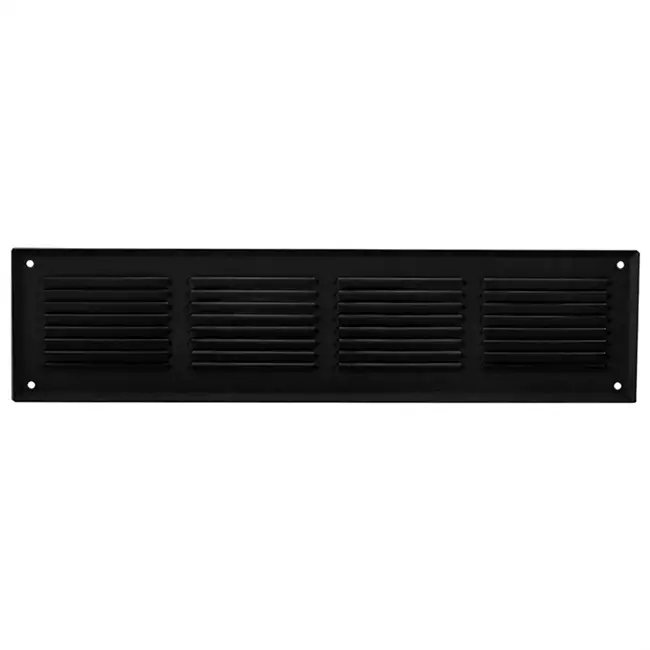

Wall grille 500x150mm aluminium - RAL9005 30% gloss

This 500x150 mm wall grille is made of aluminium and finished in RAL9005 with a 30% gloss. It is designed for larger ventilation openings where a higher air volume needs to be moved. The fixed blades ensure stable air guidance.

Advantages and features

Aluminium construction – corrosion-resistant and durable.
RAL9005 30% gloss – black coating with a subtle satin sheen.
Fixed blades – even air distribution.
Size 500x150 mm – suitable for higher air capacity.

Installation and application

The grille can be mounted directly onto the wall or duct connection. Due to its larger surface area, this grille is ideal for applications with a higher air demand.

This wall grille provides a reliable combination of capacity and a sleek black finish.

Brand	Econox
Category	Wall Vent covers with Stamped Blades
GTIN	8719544332189
Manufacturer's item number	76021039
Article number	76021039

Specifications

Category code	62
Material	Steel
Surface protection	Lacquered
Nominal duct width	500 mm
Nominal duct height	150 mm
Vertical fins	No
Double row of ribs	Yes
Front width	504 mm
Colour	Black
With built-in window	No
Front height	150 mm
Servomotor, adjustable	No
Volume setting	None
Thermostatically adjustable	No
Ball-protected	No
Built-in depth	96 mm
Mounting of internal parts/grille	Visible screw
Suitable for round air duct	No
RAL-number	9005
Air pattern, adjustable	No
