Good points
- Dimensions 500x200
- Aluminium
- Clamping springs
- Fixed vanes

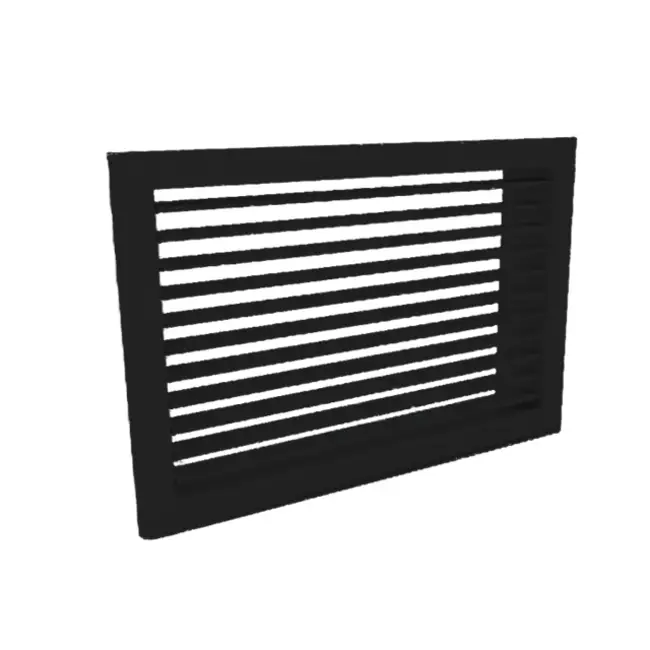

Wall grille 500 x 200 aluminium with clamping springs and fixed vanes
This aluminium wall grille with fixed vanes is suitable for extracting warm or cool air. Wall grilles are easy to attach to a wall or straight flat channel duct using clamping springs.
| Wall grille property | Value |
| Nominal length | 500 mm |
| Nominal height | 200 mm |
| Installation | Clamping springs |
| Material | Aluminium |
| Louvres | Horizontal only |
| Functions | Extraction |
| Free flow area | Approx. 70% |
The nominal length and height shown is the size of the cutout where the wall grille is mounted, also known as the opening size. If you have a wall grille with clamping springs, we supply screws to match your chosen mixed colour.
Wall grille colours
All wall grilles can be supplied in a mixed colour for you (see table). Mixed colours are paint finishes which are mixed specifically for you. All products come on 90-day approval (except for products finished with a 'mixed colour blend').
| Mixed colour | Name | Coating | Finish |
| RAL 9010 (tip) | Pure white | Powder coating | 70% gloss |
| RAL9003 | Signal white | Powder coating | 70% gloss |
| RAL9005 | Black | Powder coating | 30% gloss |
| RAL9016 | Traffic white | Powder coating | 70% gloss |
(mixed colours shown in photos may differ slightly)
These mixed colours are available at no extra cost. Prefer a different mixed colour? This can be arranged - please contact us for a custom quote.
| Brand | Grada |
| Category | Outlet wall grilles |
| GTIN | 8719544195685 |
| Manufacturer's item number | AD170-F05000200-RAL 9005 |
| Article number | 37011215-9005 |
Specifications
| Mounting interior/grid | Hidden clamp |
| Category code | 59 |
| Coating | RAL 9005 |
| Double slat row | No |
| Front width | 530 mm |
| Front height | 230 mm |
| Built-in depth | 29 mm |
| Air pattern adjustable | No |
| Material | Aluminium |
| Nominal channel width | 500 mm |
| Nom. channel height | 200 mm |
| Right of return | No. Mixed colour customisation |
| Vertical slats | No |
| For round air duct | No |
| Colour type (no surcharge) | Bespoke |
