Good points
- Brand: Ruck
- EC motor
- Up to 1970 m3/h
- Integrated constant pressure control

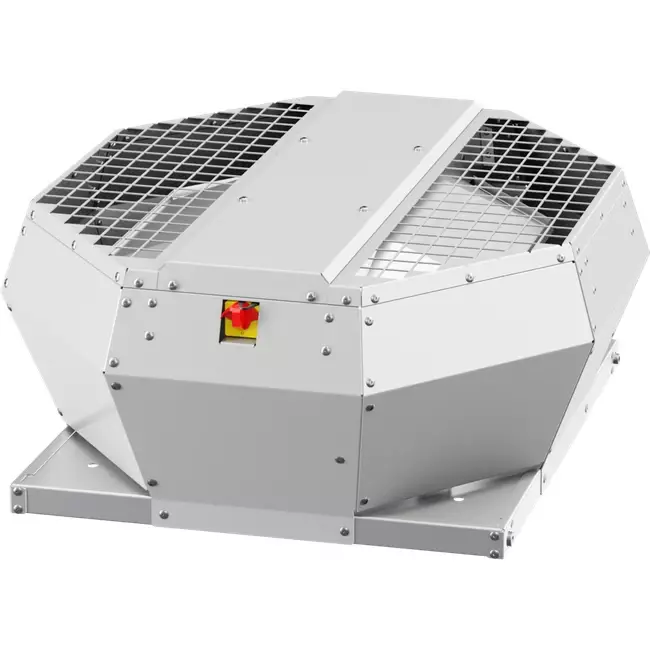

Vertical Roof Fan with Constant Pressure Control – DVA 280 EC O CRK 01
The Ruck roof fan (DVA EC O CRK series) features an energy-efficient EC motor with a vertical discharge direction and integrated constant pressure control. This DC motor is continuously adjustable via a 0–10 V signal. The roof fan comes standard with a service switch and is ideal for demand-controlled ventilation to automatically maintain constant pressure levels within your ventilation system. This makes the fan perfectly compatible with sensors such as a CO₂ sensor.
High Efficiency
The roof fan is equipped with an integrated service switch and electronic temperature monitoring to prevent overheating. The casing is made of high-quality aluminium (AlMg3) and is hinged for easy inspection and maintenance. The fan features backward-curved blades for higher efficiency, lower power consumption, and reduced noise levels at higher pressure differentials. The powerful EC motor ensures reliable and energy-efficient operation.
Ruck’s High Quality
Ruck Ventilatoren GmbH is a leading German company with over 25 years of expertise. They are market leaders in roof fans with EC motors including service switches. With more than 300 employees, Ruck continuously develops new technologies to comply with the latest ERP (Energy Related Products) directives. Quality and innovation are at the forefront of every product the company delivers.
Main Specifications
- Internal electronic temperature monitoring
- Integrated constant pressure control
- Continuously adjustable EC motor
- Integrated service switch
- Casing made of aluminium AlMg3
- Backward-curved blades
- Hinged casing for maintenance
| Brand | Ruck ventilatoren GmbH |
| Category | Vertical Roof extractor fans |
| GTIN | 4061199042864 |
| Manufacturer's item number | DVA 280 EC O CRK 01 |
| Article number | 65168292 |
Specifications
| Category code | 35 |
| Operating height | 249 mm |
| Housing material | Aluminium |
| Housing material quality | AlMg3 (3.3503) |
| Electrical connection | Terminals |
| Type of motor | Electronically commutated (EC) |
| With wireless remote control | No |
| Supporting protocol for Modbus | No |
| Number of phases | 1 |
| Operation by app | No |
| With constant volume flow control | No |
| Frequency | 50/60 Hz |
| Surface protection housing | Untreated |
| Back draught shutter | None |
| Max. electric power input | 268 A |
| With thermal overload protection | Yes |
| Max. medium temperature (continuous) | 55 °C |
| With pressure sensor | Yes |
| Suitable for (extra) pressure sensor | Yes |
| Nominal current | 1.88 A |
| Nominal voltage | 230 V |
| Integrated timer | No |
| Single-speed motor | No |
| Indirect drive | No |
| Rotational speed | 2940 1/min |
| Exhaust direction | Vertical |
| Fan tiltable | No |
| Control signal | 0 - 10 V |
| With sound absorber | No |
| With maintenance-/service switch | Yes |
