Good points

Metal valve, solidly constructed
For supply ventilation in rooms
Adjustable airflow
Easy to disassemble

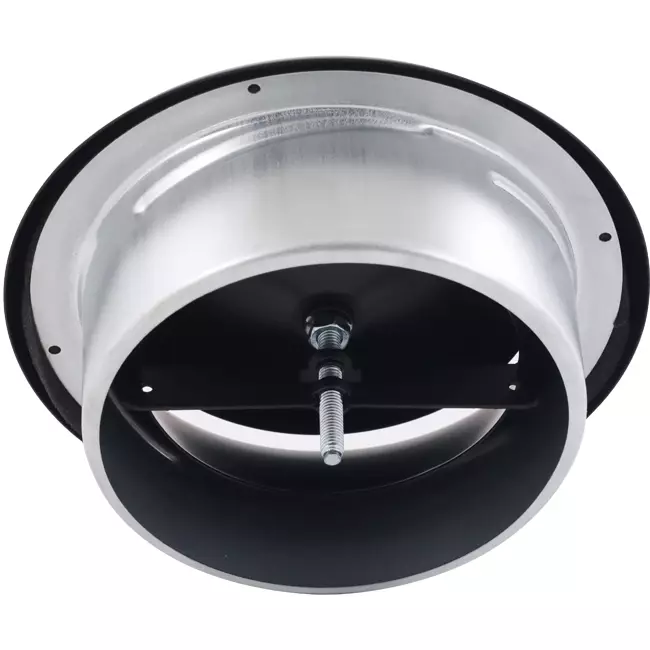

Ventilation Supply Valve 160 mm Metal - S-DVS160 RAL9005 30% Gloss

The ventilation supply valve 160 mm metal S-DVS160 in RAL 9005 with 30% gloss is designed for controlled and even supply of ventilation air in residential and commercial spaces. This metal supply valve is suitable for use in living rooms, bedrooms and office spaces where a stable air intake is required. Thanks to the adjustable inner core, you can precisely regulate the airflow according to the room and the ventilation system.

The valve is compatible with round ducts with a diameter of 160 mm and ensures a neat finish on walls or ceilings. The metal construction provides extra durability and a long service life, making the valve suitable for continuous use within mechanical ventilation systems.

The finish is available in RAL 9016, RAL 9010 and RAL 9005 with 30% gloss. Within this series, dimensions of 100, 125, 160 and 200 mm are available, allowing you to easily match the supply valve to the desired airflow and duct diameter.

Brand	Econox
Category	Black air valves
GTIN	8719544332899
Manufacturer's item number	76021110
Article number	76021110

Specifications

Category code	61
Shape	Round
Nominal duct diameter connection	160 mm
Front diameter	208 mm
Built-in depth	50 mm
Ring for building in	Other
Air supply valve	Yes
Air extraction valve	No
With volume control	Yes
Colour	Black
RAL-number	9005
Self-controlling	No
2-position setting	No
High-inducing	No
With filter	No
Outlet pattern limited	No
Material	Steel
