Good points

2x Ø90mm connection
Suitable for Ø125mm
Height 164mm

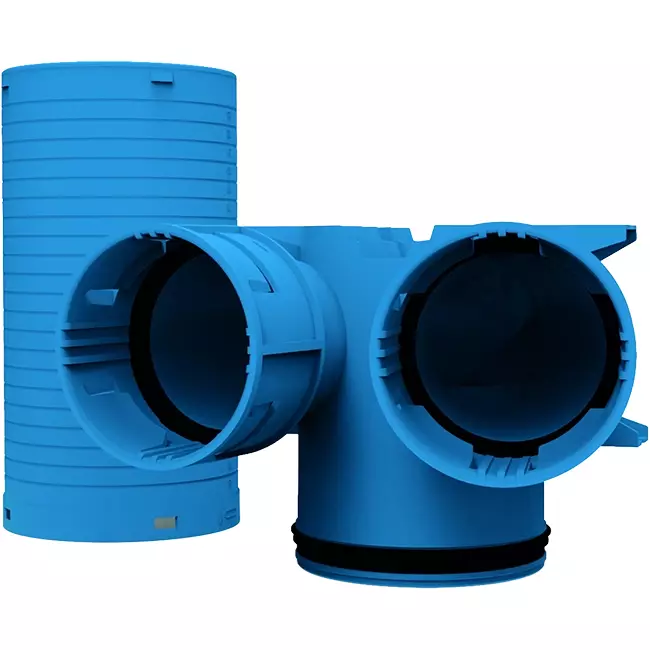

Vent-Axia Uniflexplus valve collector 2 x Ø90 mm - Ø125 mm

The Uniflexplus valve collector is a distribution piece that serves as a transition between flexible ventilation ducts and the final 125 mm supply or exhaust valve. The Uniflexplus air distribution system can be used in residential housing, apartment buildings, and small commercial projects. The system is universal and straightforward to install for the DIY enthusiast. The ventilation ducts are flexible and have a small diameter, allowing for easy and time-saving installation. The valve collector is supplied including one sealing cap with a diameter of 125 mm and a sealing cap with a diameter of 90 mm.

Advantages and Features

Supply and Exhaust: Suitable for both supply air and exhaust air.
Double Connection: 2x Ø90mm ventilation duct connections.
Patented Click System: The system is time-saving and easy to install.
Quality: This air system is antistatic and antibacterial, ensuring healthy air quality in your ventilation.

Brand	Vent-Axia
Category	Uniflexplus 90mm collectors
GTIN	8719956564543
Manufacturer's item number	8000001699
Article number	11132912

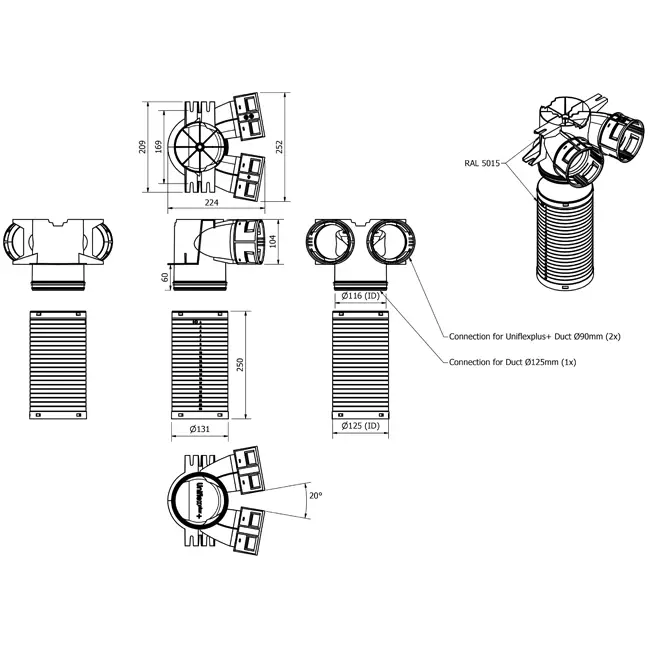

Specifications

Category code	71
Material	Plastic
Surface protection	Untreated
Length	224 mm
Air extraction	Yes
Air supply	Yes
Width	252 mm
Height	164 mm
Material quality	Polypropylene (PP)
Embeddable in concrete	Yes
Connection main duct	Duct end
Shape of branches	Round air duct
With inspection opening and cover	No
Type of housing	Part with branches air duct
Nominal duct diameter, branches	78 mm
Bottom connection	Yes
Number of branches	2
Connection branches	Insert end
Nominal duct diameter, main duct	125 mm
