Good points
- Brand: Vent-Axia
- 2 speeds
- In-line helicocentrifugal
- H:288 m3/h, L:252 m3/h

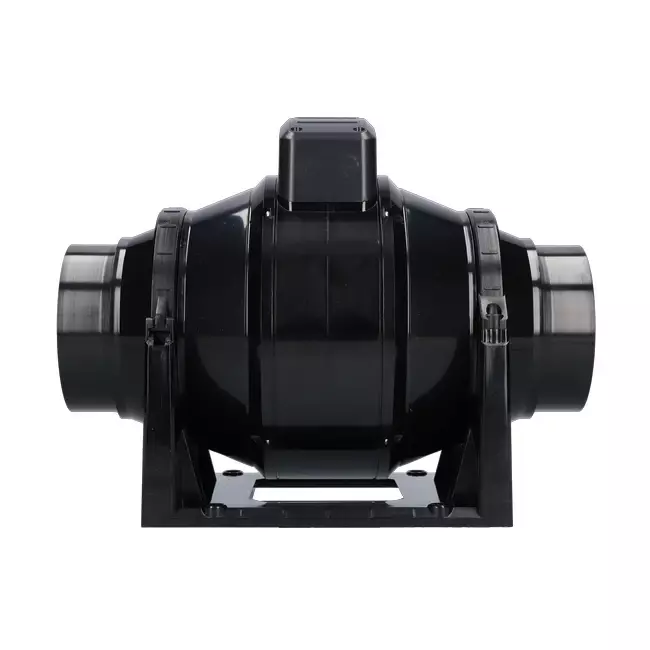

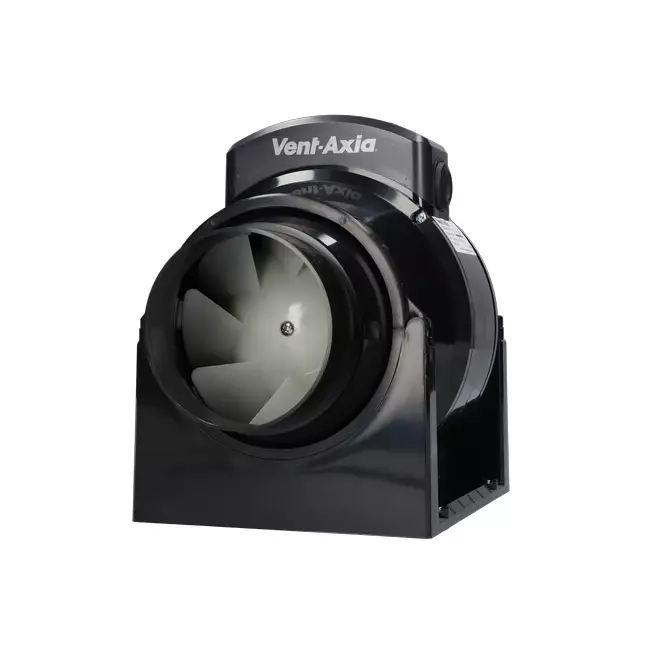

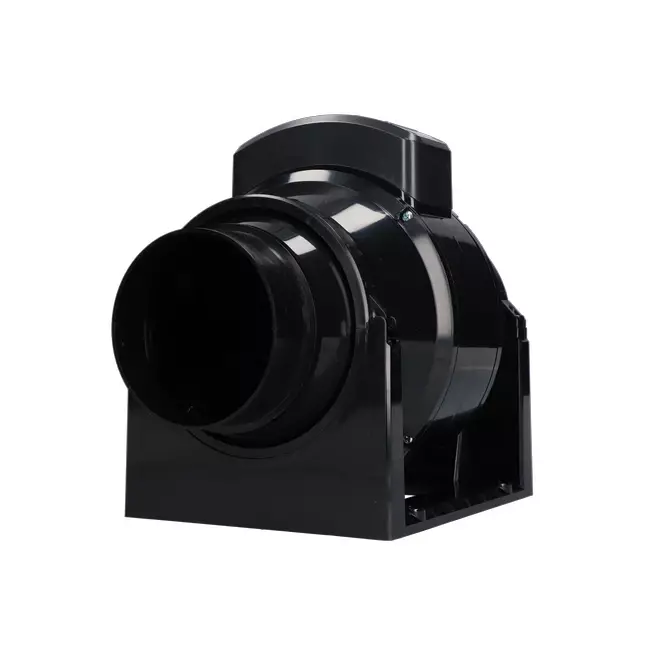

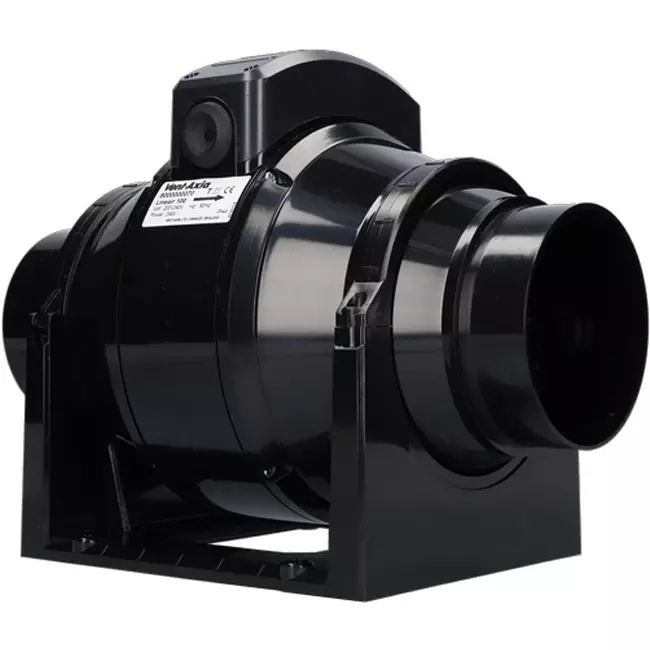

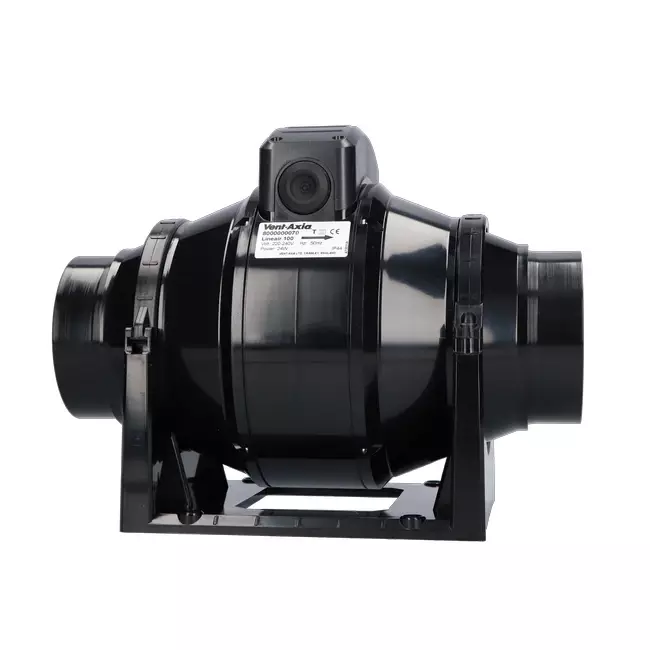

Vent-Axia tube fan 100mm mixed flow - Lineair 100
The Linear 100 is an in-line heliocentrifugal fan designed specifically for use with both flexible and non-flexible air ducts. With pressure generation nearly twice that of standard axial fans, the Lineair 100 provides powerful ventilation in a compact and lightweight design. The fan has two speeds and is ideal for applications where space is limited and where efficiency and durability are important.
Advantages of the Linear 100 Fan:
- In-line heliocentrifugal fan with 2 speeds: H: 288 m³/h, L: 252 m³/h.
- Thermically protected motor with adjustable speed during installation.
- Black housing made of 100% recycled industrial plastic.
- Suitable for operating temperatures up to +50°C.
- Depending on version equipped with timer.
- Motor is easily removable for maintenance.
- IP44 rating for protection against moisture and dust.
- Compact and lightweight, making the fan easy to clean and install.
In-line Ventilation
The Linear heliocentrifugal fans are specially designed for use in various ventilation systems. Their compact dimensions and high pressure generation make them ideal for both flexible and non-flexible ductwork. All types of Lineair fans can be mounted either horizontally or vertically, providing installation versatility.
Sustainable Ventilation
The black casing of the Linear fans is made from 100% recycled material. We give plastic a second life by processing the waste from refrigerator manufacturers, for example, into new parts for the fans. In this way, we actively contribute to a more sustainable climate and reduce the amount of plastic waste.
Installation and Maintenance
The Linear fans come with a loose base plate and removable connectors for easy installation. The motor can be rotated in the suspension, allowing connection in tight spaces. Maintenance is easy, as the motor and other parts can be detached without removing the air ducts.
| Brand | Vent-Axia |
| Category | Tube fan Linear |
| GTIN | 05015135735159 |
| Manufacturer's item number | 8000000070 |
| Article number | 19500543 |
Specifications
| Housing material | Plastic |
| With thermal overload protection | Yes |
| Direct-current motor | No |
| Indirect drive | No |
| Electrical connection | Connection terminals |
| Degree of protection (IP) | IP44 |
| 2-speed motor | Yes |
| Suitable for electronic control | No |
| Suitable for frequency control | No |
| Suitable for low-current control | No |
| Suitable for transformer control | No |
| Pole-reversible | No |
| Connection | Insteekeind |
| Air volume at pressure 3 | 72 m3/h |
| Pressure 2 | 50 Pa |
| Max. air temperature | 50 °C |
| Length | 298 mm |
| Air volume, unloaded | 288 m3/h |
| Air volume at pressure 2 | 252 m3/h |
| Connection voltage | 230 V |
| Diameter housing | 178 mm |
| Pressure 3 | 100 Pa |
| Duct diameter | 100 mm |
| Power consumption | 0.02 kW |
