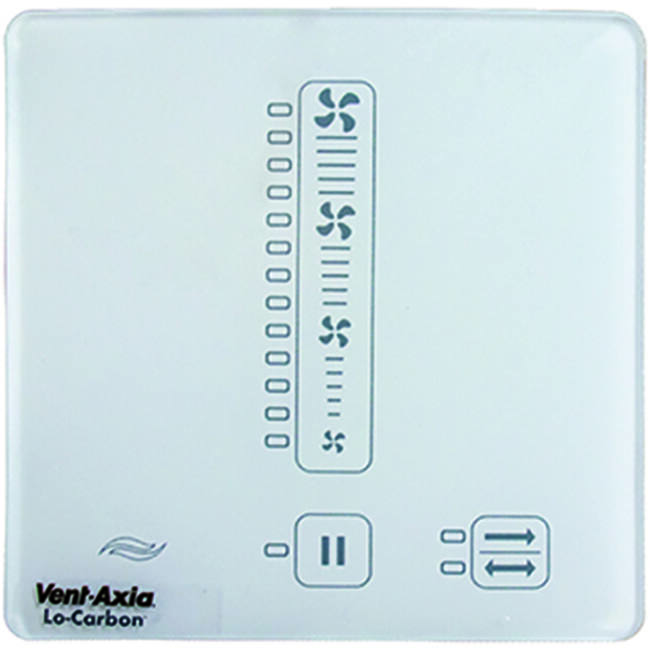

The Vent-Axia S8 zone controller is the central control unit for the Vent-Axia Heat Save decentralised MVHR unit with a 160 mm duct. The zone controller is designed to simultaneously manage up to 8 units in alternating (push-pull) operation, creating a stable balance between supply and extract air. Using the user-friendly control panel, you can easily set the operating mode, output level (1-4), and additional functions such as pause mode or completely turning off the ventilation. Control is provided via a capacitive button and a slider, allowing you to adjust the ventilation behaviour with a simple touch. The mode button allows you to switch between heat recovery and ventilation modes. Thanks to the integrated indicator lights, the panel also serves as a clear display, making the unit status immediately visible at a glance.
| Brand | Vent-Axia |
| Category | Decentralised MVHR Vent-Axia |
| GTIN | 8719956565199 |
| Manufacturer's item number | 8000001761 |
| Article number | 19500571 |
| Category code | 112 |
| Width | 85 mm |
| Height | 21 mm |
| Depth | 85 mm |
| Degree of protection (IP) | IP20 |
| Suitable for cooling | No |
| Suitable for heating | No |
| Networkable via radiografic (standard) | No |
| Supply voltage | 24 V |
| With extra contact | No |
| Number of channels/zone | 8 |
| Connection for external antenna | No |
| Output voltage | 16 V |
| Networkable via radio (optional) | No |
| With time switch clock | Yes |
| Contact type | Other |
| Smart control | No |
